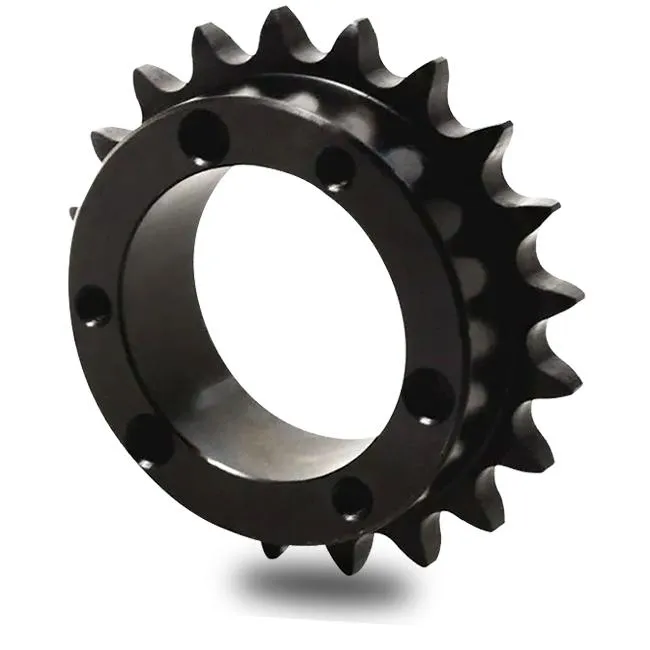

ANSI Certified QD Roller Chain Sprocket

Raydafon Group's ANSI Certified QD Roller Chain Sprocket delivers unmatched durability and precision for industrial machinery, ideal for engineers and maintenance teams in demanding settings like manufacturing and automation. Made from high-strength materials with quick-detach design, it ensures smooth operation and reduces downtime, boosting productivity and reliability. Experience superior performance that outperforms competitors, backed by rigorous ANSI certification—upgrade your equipment today and enjoy seamless efficiency.

Send Inquiry

Product Description

#120 QD Sprockets

Sprocket Size	Tooth Count	Bushing	Outside Diameter	Pitch Diameter	Type	Max. Bore	Dimension (L1)	Dimension (L2)	Dimension (C)	Dimension (Y)	Dimension (P)	Dimension (G)	Dimension (X)	Weight (LBS)
120SF12	12	SF	6.500	5.796	B	2-15/16''	2-1/4''	2-1/4''	4-5/8''	1-5/64''	-	21/64''	1-1/4''	4.7
120SF13	13	SF	6.990	6.268	B	2-15/16''	2-1/4''	2-1/4''	4-5/8''	1-5/64''	-	21/64''	1-1/4''	6.1
120SF14	14	SF	7.470	6.741	B	2-15/16''	2-1/4''	2-1/4''	4-5/8''	1-5/64''	-	21/64''	1-1/4''	7.4
120SF15	15	SF	7.960	7.215	B	2-15/16''	2-1/4''	2-1/4''	4-5/8''	1-5/64''	-	21/64''	1-1/4''	8.0
120E16	16	E	8.440	7.689	B1	3-1/2''	2-5/8''	2-1/4''	6	1-9/16''	1/8''	45/64''	1-5/8''	11.2
120E17	17	E	8.920	8.163	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	13.4
120E18	18	E	9.410	8.638	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	14.8
120E19	19	E	9.890	9.113	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	16.5
120E20	20	E	10.370	9.589	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	19.2
120E21	21	E	10.850	10.064	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	19.9
120E22	22	E	11.330	10.540	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	21.6
120E23	23	E	11.810	11.016	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	23.8
120E24	24	E	12.290	11.492	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	25.8
120E25	25	E	12.770	11.968	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	28.1
120E26	26	E	13.250	12.444	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	29.9
120E28	28	E	14.210	13.397	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	24.7
120E30	30	E	15.170	14.350	B1	3-1/2''	2-5/8''	2-15/16''	6	1-9/16''	1/8''	45/64''	1-5/8''	39.4
120F32	32	F	16.130	15.303	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2-1/2''	50.5
120F35	35	F	17.570	16.734	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2-1/2''	59.5
120F36	36	F	18.050	17.221	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2-1/2''	63.4
120F40	40	F	19.960	19.118	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2 -1/2''	77.0
120F42	42	F	20.920	20.072	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2-1/2''	83.0
120F45	45	F	22.350	21.503	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2-1/2''	84.0
120F48	48	F	23.790	22.935	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2-1/2''	92.0
120F54	54	F	26.650	25.798	C	3-15/16''	3-5/8''	4	6-5/8''	1	1-11/16''	1-37/64''	2-1/2''	114.0
120J60	60	J	29.520	28.661	C	4-7/16''	4-1/2''	5	7-1/4''	1-3/16''	2-5/16''	2-17/64	3-3/16''	140.0
120J70	70	J	34.300	33.434	C	4-7/16''	4-1/2''	5	7-1/4''	1-3/16''	2-5/16''	2-17/64	3-3/16''	177.0
120J80	80	J	39.080	38.207	C	4-7/16''	4-1/2''	5	7-1/4''	1-3/16''	2-5/16''	2-17/64	3-3/16''	222.0

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

#120 Qd Roller Chain Sprocket ANSI Certified

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.
