ANSI Certified Roller Chain Sprocket

Raydafon Group's ANSI Certified Roller Chain Sprocket ensures precision and durability for industrial machinery. Made from high-grade steel with superior engineering, it reduces downtime and enhances performance. Ideal for engineers and manufacturers in demanding environments, it delivers reliability and efficiency, solving wear and tear issues. Uniquely certified for quality, trust Raydafon for unmatched excellence.

Send Inquiry

Product Description

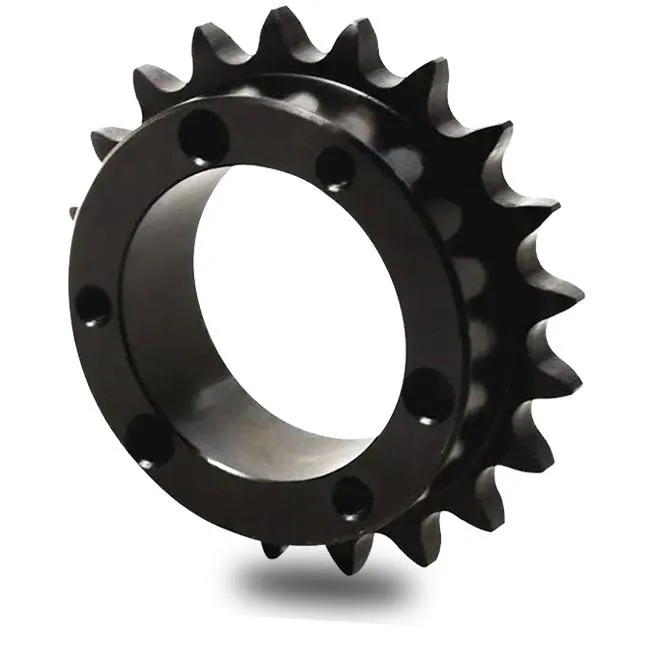

80 Chain Sprockets are manufactured in accordance with ANSI B29.1 Standards and are made for 1" pitch 80 and heavy-duty 80H roller chains. Being manufactured to The American National Standards Institutes dimensions means that these sprockets directly interchange with other manufacturers. Up to 30-teeth, our 80 sprockets feature hardened teeth for a dynamic performance factor increase and increased sprocket longevity. Out standard steel sprockets utilize a black-oxide coating for added corrosion protection, they are also manufactured from a premium high-strength grade of mild steel for an additional increase in sprocket life.

Sprocket Size	Tooth Count	Bushing	Outside Diameter	Pitch Diameter	Type	Max. Bore	Dimension (L1)	Dimension (L2)	Dimension (C)	Dimension (Y)	Dimension (P)	Dimension (G)	Dimension (T)	Weight (LBS)
80SH11	11	SH	4.010	3.550	B	1-5/8"	1-7/16"	1-7/16"	2-11/16"	21/32"	-	15/64"	0.575	1.0
80SH12	12	SH	4.330	3.864	B	1-5/8"	1-7/16"	1-7/16"	2-11/16"	21/32"	-	15/64"	0.575	1.4
80SDS13	13	SDS	4.660	4.179	B	2''	1-1/2"	1-1/2"	3-3/16"	47/64''	-	11/64"	0.575	1.5
80SDS14	14	SDS	4.980	4.494	B	2''	1-1/2"	1-1/2"	3-3/16"	47/64''	-	11/64"	0.575	1.8
80SK15	15	SK	5.300	4.810	B	2-5/8"	2-1/8"	2-1/8"	3-7/8"	1-19/64"	-	21/32"	0.575	2.5
80SK16	16	SK	5.630	5.126	B	2-5/8"	2-1/8"	2-1/8"	3-7/8"	1-19/64"	-	21/32"	0.575	3.1
80SK17	17	SK	5.950	5.442	B	2-5/8"	2-1/8"	2-1/8"	3-7/8"	1-19/64"	-	21/32"	0.575	3.5
80SK18	18	SK	6.270	5.759	B	2-5/8"	2-1/8"	2-1/8"	3-7/8"	1-19/64"	-	21/32"	0.575	3.9
80SK19	19	SK	6.590	6.076	B	2-5/8"	2-1/8"	2-1/8"	3-7/8"	1-19/64"	-	21/32"	0.575	4.4
80SF20	20	SF	6.910	6.392	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	5.3
80SF21	21	SF	7.240	6.710	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	5.7
80SF22	22	SF	7.560	7.027	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	6.3
80SF23	23	SF	7.880	7.344	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	6.8
80SF24	24	SF	8.200	7.661	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	7.5
80SF25	25	SF	8.520	7.979	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	8.0
80SF26	26	SF	8.840	8.296	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	8.6
80SF27	27	SF	9.160	8.614	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	9.4
80SF28	28	SF	9.480	8.931	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	10.2
80SF30	30	SF	10.110	9.567	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	11.3
80SF32	32	SF	10.750	10.202	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	13.0
80SF33	33	SF	11.070	10.520	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	13.5
80SF34	34	SF	11.390	10.838	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	14.1
80SF35	35	SF	11.710	11.156	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	15.5
80SF36	36	SF	12.030	11.474	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	16.9
80SF40	40	SF	13.310	12.746	B	2-15/16"	2-1/4"	2 -1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	20.6
80SF42	42	SF	13.940	13.382	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	22.4
80SF45	45	SF	14.900	14.336	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	25.1
80SF48	48	SF	15.860	15.290	B	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	28.6
80SF54	54	SF	17.770	17.198	C	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	36.8
80SF60	60	SF	19.680	19.107	C	2-15/16"	2-1/4"	2-1/4"	4-5/8"	1-27/64''	-	21/32"	0.575	45.8
80E70	70	E	22.870	22.289	C	3-1/2"	2-5/8''	2-15/16''	6''	7/8"	1-3/16"	1-3/64''	0.575	55.6
80E72	72	E	23.500	22.926	C	3-1/2"	2-5/8''	2-15/16''	6''	7/8"	1-3/16"	1-3/64''	0.575	59.3
80E80	80	E	26.050	25.471	C	3-1/2"	2-5/8''	2-15/16''	6''	7/8"	1-3/16"	1-3/64''	0.575	69.2
80E84	84	E	27.330	26.744	C	3-1/2"	2-5/8''	2-15/16''	6''	7/8"	1-3/16"	1-3/64''	0.575	74.9
80E96	96	E	31.150	30.563	C	3-1/2"	2-5/8''	2-15/16''	6''	7/8"	1-3/16"	1-3/64''	0.575	97.5
80F112	112	F	36.240	35.655	C	3-15/16"	2-5/8''	2-15/16''	6-5/8''	1''	2-1/16	1-58/64"	0.575	134.0

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM

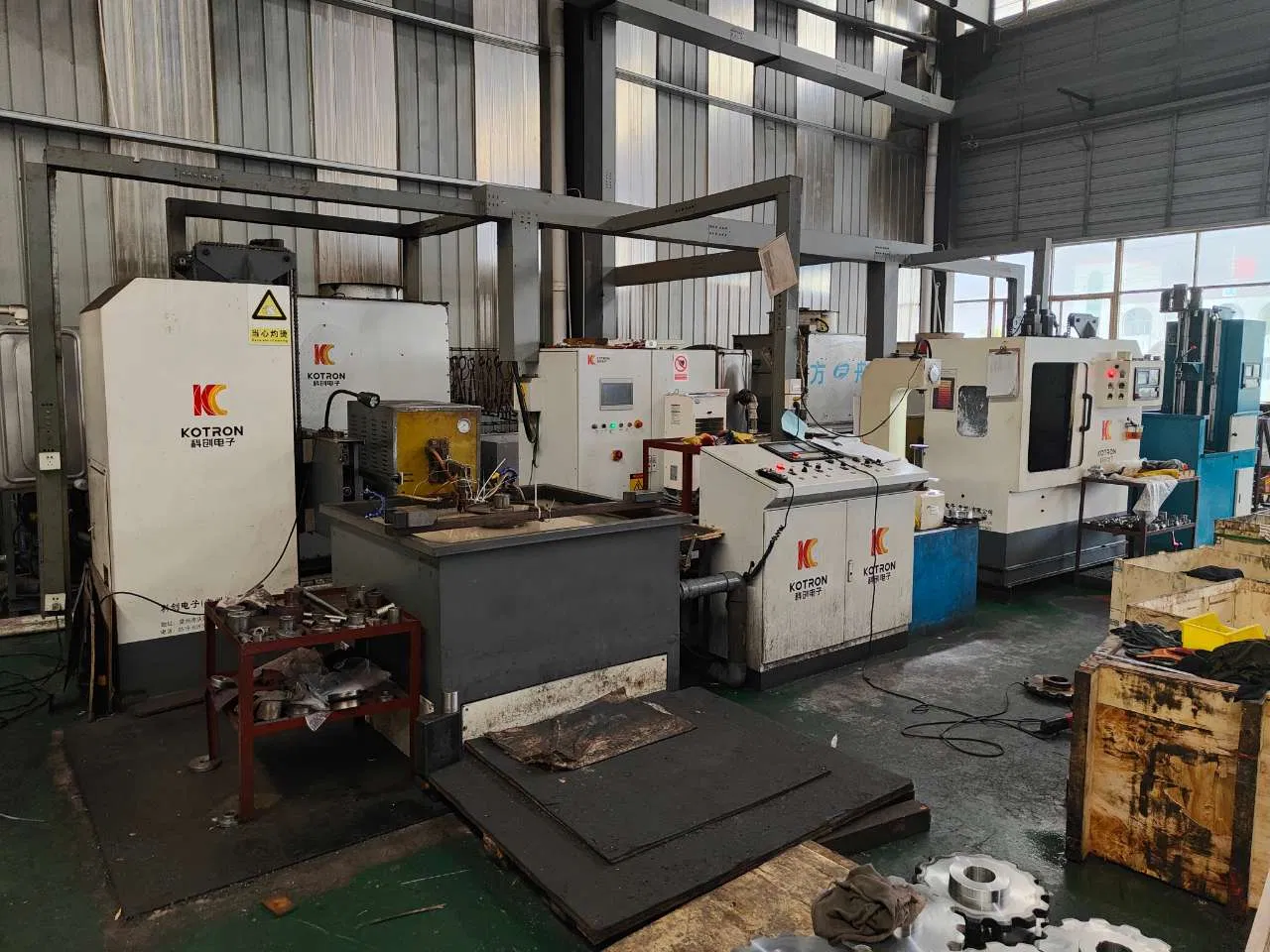

9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

#80 Qd Roller Chain Sprocket ANSI Certified Standard

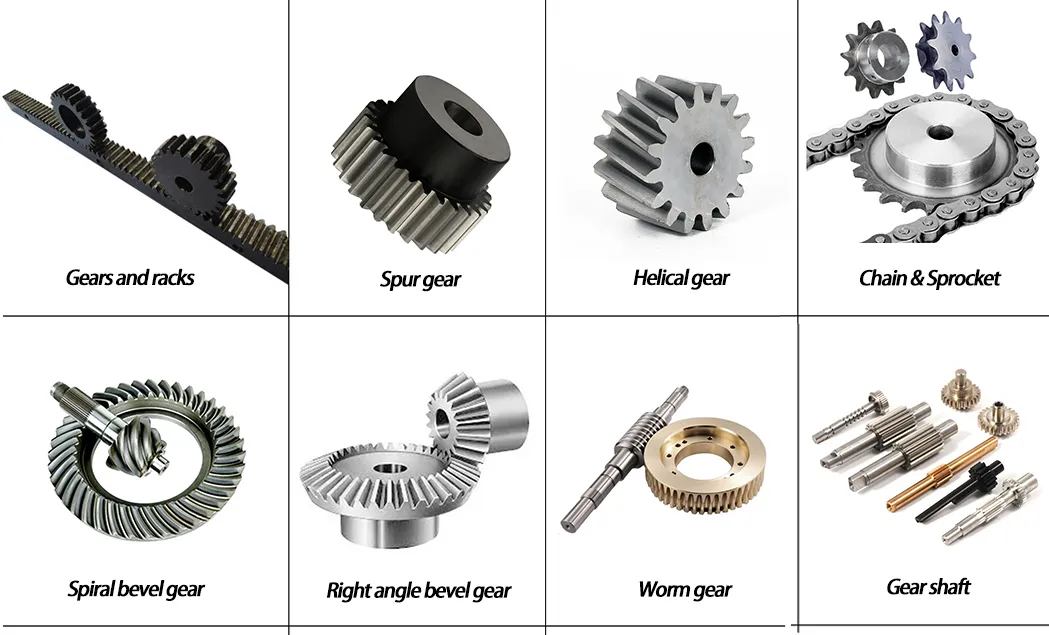

Related products:

Factory:

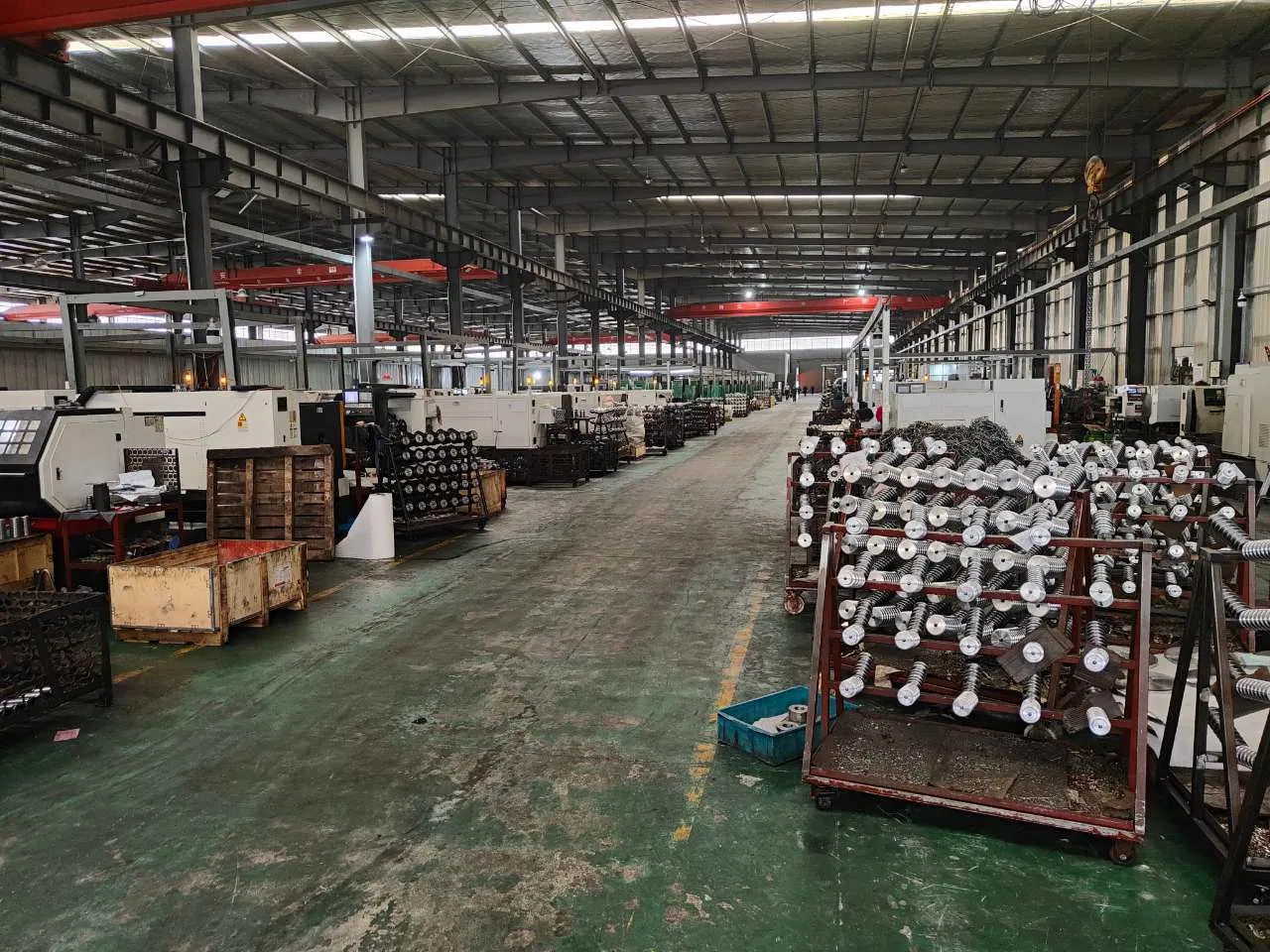

As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.
