The cycloidal pin gear reducer is a transmission model based on the principle of cycloidal pin gear meshing planetary transmission. It is an ideal transmission device with many advantages, wide use, and positive and negative operation
Characteristic1. High-speed ratio, large torque, high efficiency, averaging 95%
2. Compact structure and small volume
3. Stable operation and low noise
4. Few failures and long service life.
Cycloidal pin gear reducer is a planetary transmission principle using cycloidal gear meshing. A 180 ° eccentric sleeve is installed on the input shaft, and two roller bearings are installed on the eccentric sleeve to form the H mechanism. The center holes of the two cycloidal gears form the raceway of the eccentric bearing. The cycloidal gear is meshed with a group of needle teeth on the needle gear to form an internal meshing reducer with a tooth difference.

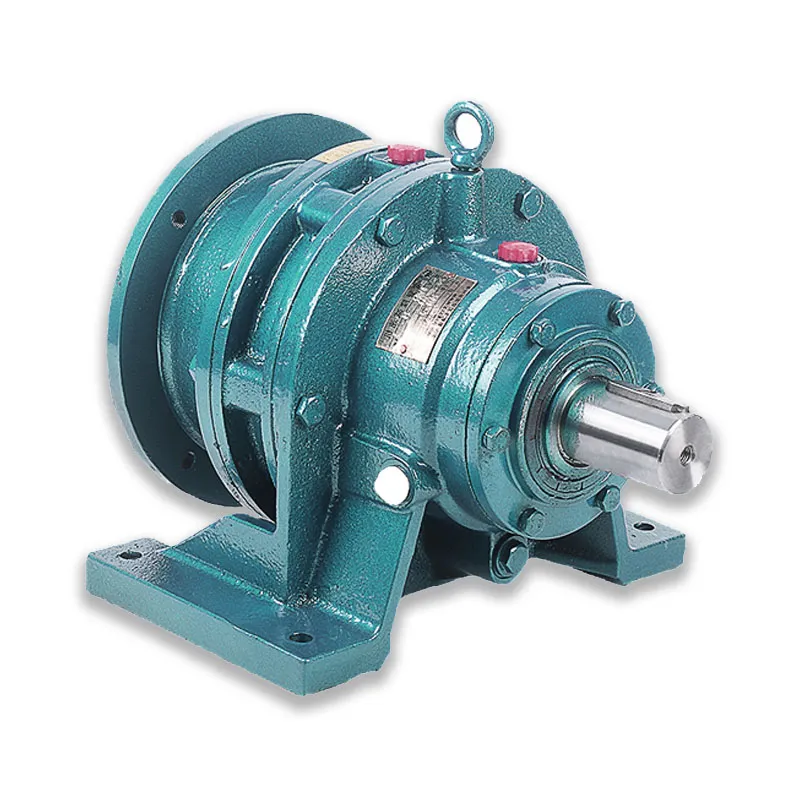

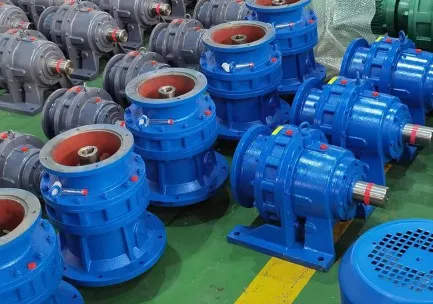

XW Series Cycloidal Gearbox
| Reducer body The body is made of thickened material, and the reducer surface is more clean, smooth and durable through professional polishing technology. |
 |
 |
Output shaft of reducer High hardness shaft, multiple precision machining, smooth and flat appearance, not easy to damage the seal ring, easy to install, and ensure the smooth operation of the reducer. |
| New accessories The reducer uses brand new accessories, high-quality materials, high hardness and stable performance. |
 |
 |
Reduce noise Low noise, large overload capacity and strong shock resistance. |
| Filler hole B0/X2 and B1/X3 have been greased, B2/X4 and above models have not been added, please add oil before use. |
 |
 |

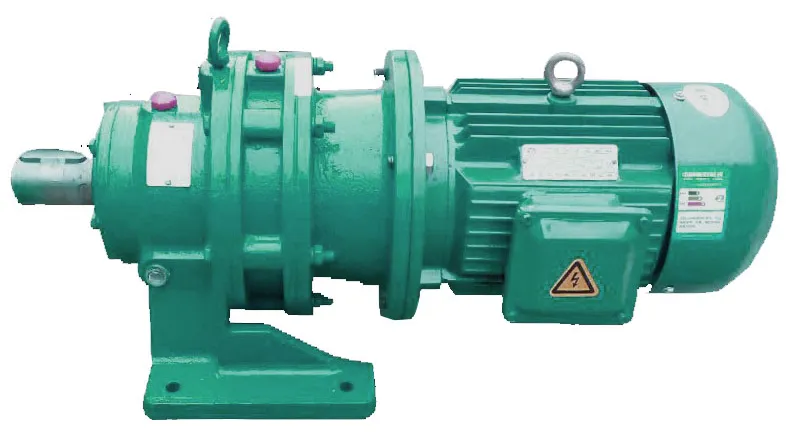

Copper coil The reducer can be matched with the national standard/directly connected motor. The motor adopts a new copper core coil to make the motor more stable, efficient and safe. |
