Cast Iron QD Sheaves for C Belts

Widely Used 2C Series Cast Iron American Standard QD Sheaves For C Belts2C series double groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 9.40 inches to 30.40 inches. Depending on the pulley size, they use F or SF QD (quick disassembly) bushings, which we a......
Send Inquiry
Product Description

Widely Used 2C Series Cast Iron American Standard QD Sheaves For C Belts

2C series double groove QD bushing pulley is used for C, CX, belt, and CC v belt; Their diameters range from 9.40 inches to 30.40 inches. Depending on the pulley size, they use F or SF QD (quick disassembly) bushings, which we also have in stock. Most 2C QD pulleys are high-strength Grade 35 cast iron, phosphate-coated, and anti-corrosion paint. All these are balanced at the factory to ensure the machine's smooth operation.

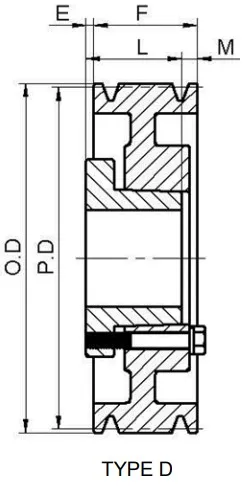

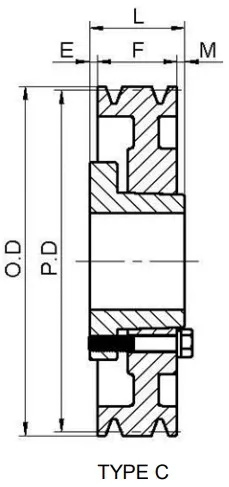

2C QD Sheave Size Chart
Widely Used 2c Series Cast Iron American Standard Qd Sheaves for C Belts
Widely Used 2c Series Cast Iron American Standard Qd Sheaves for C Belts

Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
2C90SF
SF
D
9.0"
9.40"
3/32"
2-1/4"
2-1/16"
9/32"
20
2C95SF
SF
D
9.5"
9.90"
3/32"
2-1/4"
2-1/16"
9/32"
21
2C100SF
SF
D
10.0"
10.40"
3/32"
2-1/4"
2-1/16"
9/32"
22
2C105SF
SF
D
10.5"
10.90"
3/32"
2-1/4"
2-1/16"
9/32"
23
2C110SF
SF
D
11.0"
11.40"
3/32"
2-1/4"
2-1/16"
9/32"
24
2C120SF
SF
D
12.0"
12.40"
11/32"
2-1/4"
2-1/16"
17/32"
25
2C130SF
SF
D
13.0"
13.40"
11/32"
2-1/4"
2-1/16"
17/32"
28
2C140SF
SF
D
14.0"
14.40"
11/32"
2-1/4"
2-1/16"
17/32"
31
2C160SF
SF
D
16.0"
16.40"
11/32"
2-1/4"
2-1/16"
17/32"
36
2C180SF
SF
D
18.0"
18.40"
11/32"
2-1/4"
2-1/16"
17/32"
39
2C200SF
SF
D
20.0"
20.40"
11/32"
2-1/4"
2-1/16"
17/32"
48
2C240SF
SF
D
24.0"
24.40"
11/32"
2-1/4"
2-1/16"
17/32"
60
2C300F
F
C
30.0"
30.40"
1-7/32"
2-1/4"
3-3/4"
9/32"
85

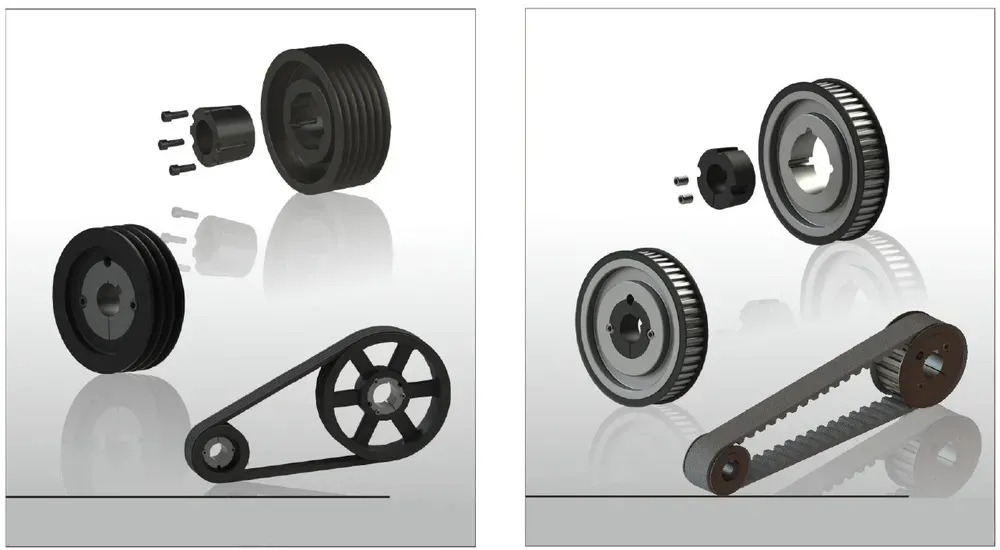

QD pulley
The QD pulley is a bushing to help maintain the v-belt. Its quick removable bushing facilitates installation and removal, minimizes downtime, and protects the drive system to the maximum extent. It has one to twelve slot configurations and is compatible with dynamic and static balancing. QD pulley is a pulley with simple installation and maintenance and convenient bushing replacement.
Several types of QD pulleys are interchangeable with most other bushing brands. They are exact and durable and offer a variety of reverse pitch options. They are also made of grey cast iron and are suitable for various classic V-belts. They are also designed with three grooves to facilitate the selection of multiple belts or ribbon belts.
QD bushing pulley applies to V-belt drive, with different types and sizes for selection. They are available in 3/4, 1/2, and 1-1/2 bore sizes. They are available in standard and reverse installation configurations. You can also ask for a quote if you need a different aperture.
The QD bushing pulley is designed for easy installation. The quick detachable bushing enables the pulley to be quickly installed and removed, minimizing downtime and maintaining the integrity of the drive system. HZPT has a variety of QD bushing pulleys to choose from. The Product Details page allows you to filter products by multiple grooves, outside diameters, and belt types.
