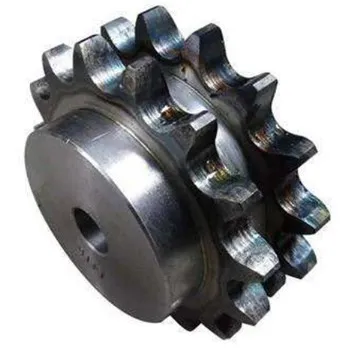

08B-2 double roller chain sprockets are manufactured for metric 08B-2 duplex roller chain and is manufactured in accordance with ISO, DIN, and BS228 standards. All of our sprockets are precision manufactured from high-quality steel, and the majority of them are black oxide coated, and have hardened teeth on tooth counts 30 or less. Something important to know note is that on tooth counts 31 and up hardened teeth make little to no performance increase, this is why it is not standard.
|

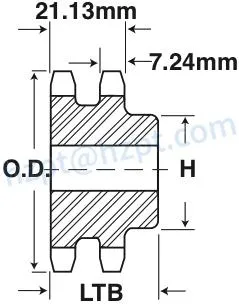

Sprocket Size
|
Tooth Count
|
Pitch Diameter
|
Stock Bore
|
Maximum Recommended Bore
|
Hub Diameter (H)
|
Length Thru Bore (L)
|
Weight (KG)
|
|---|---|---|---|---|---|---|---|
| D08B10 | 10 | 41.10mm | 10mm | 18mm | 26mm | 32mm | 0.22 |
| D08B11 | 11 | 45.08mm | 11mm | 21mm | 30mm | 35mm | 0.22 |
| D08B12 | 12 | 49.07mm | 12mm | 23mm | 34mm | 35mm | 0.26 |
| D08B13 | 13 | 53.07mm | 12mm | 25mm | 38mm | 35mm | 0.28 |
| D08B14 | 14 | 57.07mm | 12mm | 28mm | 42mm | 35mm | 0.34 |
| D08B15 | 15 | 61.08mm | 12mm | 30mm | 46mm | 35mm | 0.36 |
| D08B16 | 16 | 65.10mm | 14mm | 33mm | 50mm | 35mm | 0.35 |
| D08B17 | 17 | 69.12mm | 14mm | 36mm | 54mm | 35mm | 0.44 |
| D08B18 | 18 | 73.14mm | 14mm | 38mm | 58mm | 35mm | 0.49 |
| D08B19 | 19 | 77.16mm | 14mm | 40mm | 62mm | 35mm | 0.57 |
| D08B20 | 20 | 81.18mm | 14mm | 40mm | 66mm | 35mm | 0.65 |
| D08B21 | 21 | 85.21mm | 16mm | 45mm | 70mm | 40mm | 0.72 |
| D08B22 | 22 | 89.24mm | 16mm | 45mm | 70mm | 40mm | 0.73 |
| D08B23 | 23 | 93.27mm | 16mm | 45mm | 70mm | 40mm | 0.83 |
| D08B24 | 24 | 97.30mm | 16mm | 50mm | 75mm | 40mm | 0.94 |
| D08B25 | 25 | 101.33mm | 16mm | 52mm | 80mm | 40mm | 0.98 |
| D08B26 | 26 | 105.36mm | 20mm | 56mm | 85mm | 40mm | 1.04 |
| D08B27 | 27 | 109.40mm | 20mm | 56mm | 85mm | 40mm | 1.08 |
| D08B28 | 28 | 113.43mm | 20mm | 60mm | 90mm | 40mm | 1.10 |
| D08B29 | 29 | 117.46mm | 20mm | 62mm | 95mm | 40mm | 1.14 |
| D80B30 | 30 | 121.50mm | 20mm | 64mm | 100mm | 40mm | 1.16 |
| D80B32 | 32 | 129.57mm | 20mm | 64mm | 100mm | 40mm | 1.24 |
| D08B35 | 35 | 141.68mm | 20mm | 64mm | 100mm | 40mm | 1.35 |
| D08B36 | 36 | 145.72mm | 20mm | 73mm | 110mm | 40mm | 2.05 |
| D08B38 | 38 | 153.79mm | 20mm | 73mm | 110mm | 45mm | 2.17 |
| D08B40 | 40 | 161.87mm | 20mm | 73mm | 110mm | 45mm | 2.28 |
| D08B42 | 42 | 169.94mm | 20mm | 73mm | 110mm | 45mm | 2.32 |
| D08B45 | 45 | 182.06mm | 20mm | 73mm | 110mm | 45mm | 2.49 |
| D08B48 | 48 | 194.18mm | 20mm | 73mm | 110mm | 45mm | 2.65 |
| D08B54 | 54 | 218.42mm | 25mm | 73mm | 110mm | 45mm | 2.98 |
| D08B57 | 57 | 230.54mm | 25mm | 73mm | 110mm | 45mm | 3.88 |
| D08B60 | 60 | 242.66mm | 25mm | 73mm | 110mm | 45mm | 4.08 |
| D08B68 | 68 | 283.07mm | 25mm | 73mm | 110mm | 45mm | 4.63 |
| D08B72 | 72 | 291.16mm | 25mm | 73mm | 110mm | 45mm | 4.90 |
| D08B76 | 76 | 307.32mm | 30mm | 80mm | 120mm | 45mm | 6.60 |
| D08B84 | 84 | 339.65mm | 30mm | 80mm | 120mm | 45mm | 7.29 |
| D08B95 | 95 | 384.11mm | 30mm | 80mm | 120mm | 45mm | 9.89 |
| D08B96 | 96 | 388.15mm | 30mm | 80mm | 120mm | 45mm | 9.99 |
| D08B114 | 114 | 460.90mm | 30mm | 80mm | 120mm | 45mm | 12.88 |
|

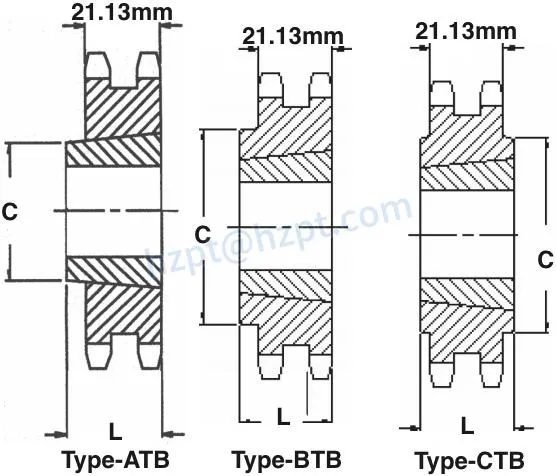

Sprocket Size
|
Tooth Count
|
Pitch Diameter
|
Bushing Number
|
Maximum Bushing Bore
|
(L)
|
(C)
|
Sprocket Weight (KG)
|
Bushing Weight (KG)
|
|---|---|---|---|---|---|---|---|---|
| D08ATB15 | 15 | 61.08mm | 1008 | 25.40mm | 22.22mm | -- | 0.18 | 0.13 |
| D08ATB16 | 16 | 65.10mm | 1008 | 25.40mm | 22.22mm | -- | 0.22 | 0.13 |
| D08ATB17 | 17 | 69.12mm | 1008 | 25.40mm | 22.22mm | -- | 0.27 | 0.13 |
| D08BTB18 | 18 | 73.14mm | 1210 | 31.75mm | 25.40mm | 58mm | 0.27 | 0.27 |
| D08BTB19 | 19 | 77.16mm | 1210 | 31.75mm | 25.40mm | 63mm | 0.36 | 0.27 |
| D08BTB20 | 20 | 81.18mm | 1610 | 41.27mm | 25.40mm | 70mm | 0.37 | 0.41 |
| D08BTB21 | 21 | 85.21mm | 1610 | 41.27mm | 25.40mm | 70mm | 0.46 | 0.41 |
| D08BTB22 | 22 | 89.24mm | 1610 | 41.27mm | 25.40mm | 74mm | 0.55 | 0.41 |
| D08BTB23 | 23 | 93.27mm | 1610 | 41.27mm | 25.40mm | 78mm | 0.59 | 0.41 |
| D08BTB24 | 24 | 97.30mm | 2012 | 50.80mm | 25.40mm | 83mm | 0.70 | 0.77 |
| D08BTB25 | 25 | 101.33mm | 2012 | 50.80mm | 31.75mm | 87mm | 0.77 | 0.77 |
| D08BTB26 | 26 | 105.36mm | 2012 | 50.80mm | 31.75mm | 87mm | 0.80 | 0.77 |
| D08BTB28 | 28 | 113.43mm | 2012 | 50.80mm | 31.75mm | 99mm | 1.06 | 0.77 |
| D08BTB30 | 30 | 121.50mm | 2012 | 50.80mm | 31.75mm | 108mm | 1.59 | 0.77 |
| D08BTB35 | 35 | 141.68mm | 2012 | 50.80mm | 31.75mm | 108mm | 1.86 | 0.77 |
| D08BTB36 | 36 | 145.72mm | 2012 | 50.80mm | 31.75mm | 108mm | 1.91 | 0.77 |
| D08BTB38 | 38 | 153.79mm | 2012 | 50.80mm | 31.75mm | 108mm | 3.18 | 0.77 |
| D08CTB42 | 42 | 169.94mm | 2517 | 63.50mm | 44.45mm | 108mm | 5.57 | 1.59 |
| D08CTB45 | 45 | 182.06mm | 2517 | 63.50mm | 44.45mm | 108mm | 5.97 | 1.59 |
| D08CTB48 | 48 | 194.18mm | 2517 | 63.50mm | 44.45mm | 108mm | 6.37 | 1.59 |
| D08CTB54 | 54 | 218.42mm | 2517 | 63.50mm | 44.45mm | 108mm | 7.17 | 1.59 |
| D08CTB57 | 57 | 230.54mm | 2517 | 63.50mm | 44.45mm | 108mm | 7.56 | 1.59 |
| D08CTB60 | 60 | 242.66mm | 2517 | 63.50mm | 44.45mm | 108mm | 12.05 | 1.59 |
| D08CTB68 | 68 | 274.99mm | 2517 | 63.50mm | 44.45mm | 108mm | 13.66 | 1.59 |
| D08CTB70 | 70 | 283.07mm | 2517 | 63.50mm | 44.45mm | 108mm | 14.06 | 1.59 |
| D08CTB72 | 72 | 291.15mm | 2517 | 63.50mm | 44.45mm | 108mm | 14.46 | 1.59 |
| D08CTB76 | 76 | 307.32mm | 2517 | 63.50mm | 44.45mm | 108mm | 15.26 | 1.59 |
| D08CTB84 | 84 | 339.65mm | 2517 | 63.50mm | 44.45mm | 108mm | 16.87 | 1.59 |
| D08CTB95 | 95 | 384.11mm | 2517 | 63.50mm | 44.45mm | 108mm | 19.08 | 1.59 |
| D08CTB96 | 96 | 388.15mm | 2517 | 63.50mm | 44.45mm | 108mm | 19.28 | 1.59 |
| D08CTB114 | 114 | 460.91mm | 2517 | 63.50mm | 44.45mm | 108mm | 22.90 | 1.59 |
