Product Description

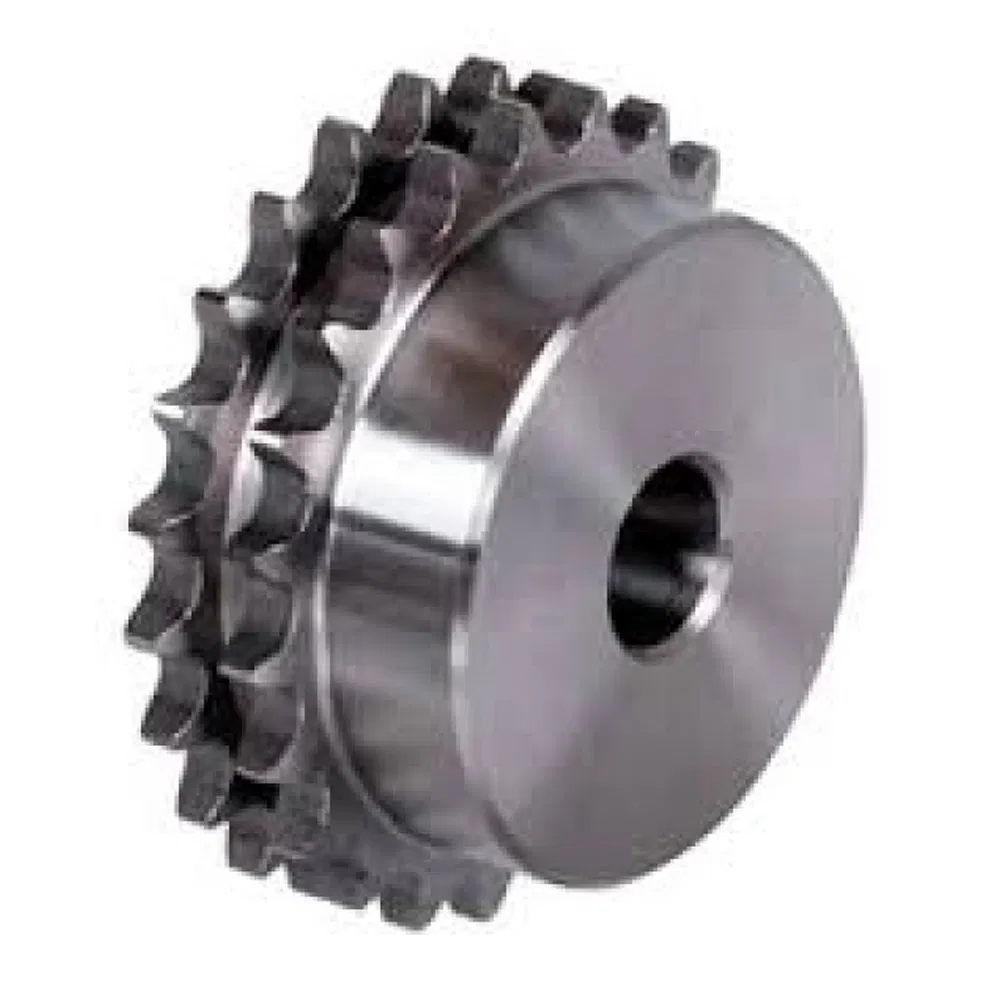

NK Standard Sprockets B Type (Duplex) NK60-2B

Nk Standard Duplex Sprockets B Type Nk60-2b Japanese Standard

Chain Type	No.60-2
Pitch	(P)	19.05 mm
Internal width	(W)	12.70 mm
Roller Dia.	(Dr)	11.91 mm
Teeth width	(T)	11.3 mm
	(M)	34.1 mm

Sprockets No.		Outside Dia. Do	Pitch Dia. Dp	Bore d			Hub		Weight (kg)
Type	Teeth No.	Outside Dia. Do	Pitch Dia. Dp	Stock	min.	max.	BD	BL	Weight (kg)
NK60-2B	10	68	61.65	16	18	20	35	50	0.9
	11	76	67.62	16	18	25	44	50	1.0
	12	83	73.60	16	18	30	50	50	1.2
	13	89	79.60	18	20	35	57	50	1.4
	14	95	85.61	18	20	42	64	56	1.8
	15	101	91.62	18	20	46	70	56	2.1
	16	107	97.65	18	20	51	76	56	2.5
	17	113	103.67	18	20	55	82	56	2.6
	18	119	109.71	18	20	60	88	56	3.2
	19	126	115.74	18	20	63	94	56	3.7
	20	132	121.78	23	25	66	100	56	4.2
	21	138	127.82	23	25	66	100	56	4.4
	22	144	133.86	23	25	66	100	56	4.9
	23	150	139.90	23	25	66	100	56	4.7
	24	156	145.95	23	25	80	120	56	6.0
	25	162	151.99	23	25	80	120	56	6.4
	26	168	158.04	23	25	80	120	56	6.8
	27	174	164.09	23	25	80	120	56	7.3
	28	180	170.14	23	25	80	120	56	7.8
	29	187	176.20	28	30	80	120	56	8.2
	30	193	182.25	28	30	89	130	56	9.0
	31	199	188.30	28	30	89	127	56	9.3
	32	205	194.35	28	30	89	127	56	9.5
	33	211	200.41	28	30	89	127	56	9.7
	34	217	206.46	28	30	89	127	56	10.5
	35	223	212.52	28	30	89	127	56	11.0
	36	229	218.57	28	30	66	98	56	8.5
	38	241	230.69	28	30	66	98	56	9.0
	40	253	242.80	28	30	66	98	56	9.7
	42	266	254.92	28	30	75	107	56	11.0
	45	284	273.09	28	30	75	107	71	12.8
	48	302	291.27	28	30	75	107	71	14.0
	50	314	303.39	28	30	75	107	71	16.0
	54	338	327.63	28	30	75	107	71	18.0
	60	375	363.99	28	30	75	107	71	21.5
	65	405	394.30	28	30	75	107	71	24.0
	70	436	424.61	28	30	75	107	71	30.0

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time
