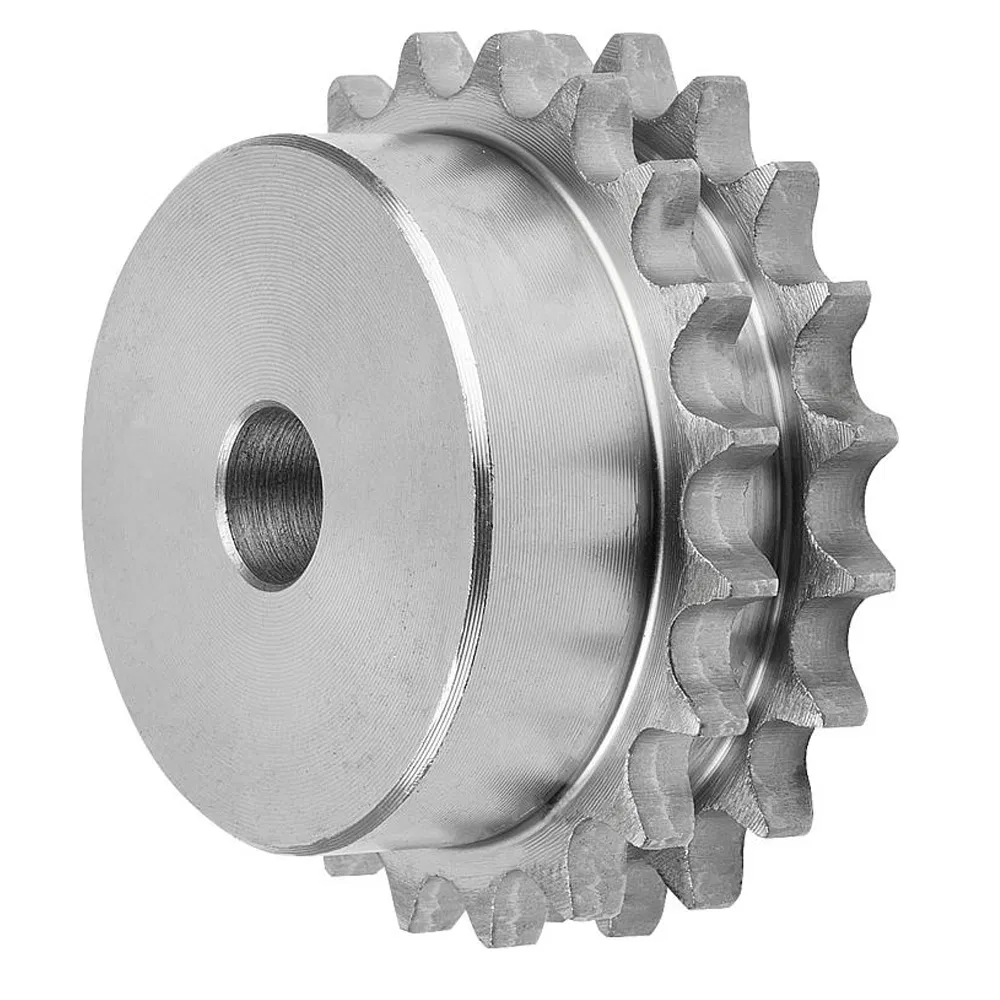

Duplex Sprockets B Type Nk80-2b

Product DescriptionChain TypeNo.80-2 Pitch(P)25.4 mmInternal width(W)15.88 mmRoller Dia.(Dr)15.88 mmTeeth width(T)14.1 mm (M)43.4 mmSprockets No.Outside Dia.DoPitch Dia.DpBore dHubWeight(kg)TypeTeeth No.Stockmin.max.BDBLNK80-2B109382.1921233558632.01110290.1621233860632.51211098.1423254669632.713118......

Send Inquiry

Product Description

Chain Type	No.80-2
Pitch	(P)	25.4 mm
Internal width	(W)	15.88 mm
Roller Dia.	(Dr)	15.88 mm
Teeth width	(T)	14.1 mm
	(M)	43.4 mm

Sprockets No.		Outside Dia. Do	Pitch Dia. Dp	Bore d			Hub		Weight (kg)
Type	Teeth No.	Outside Dia. Do	Pitch Dia. Dp	Stock	min.	max.	BD	BL	Weight (kg)
NK80-2B	10	93	82.19	21	23	35	58	63	2.0
	11	102	90.16	21	23	38	60	63	2.5
	12	110	98.14	23	25	46	69	63	2.7
	13	118	106.14	23	25	55	80	63	3.4
	14	127	114.15	23	25	60	88	63	3.9
	15	135	122.17	23	25	63	95	63	4.4
	16	143	130.20	23	25	66	100	71	5.4
	17	151	138.23	23	25	66	100	71	6.0
	18	159	146.27	23	25	80	120	71	7.5
	19	167	154.32	23	25	80	120	71	8.0
	20	176	162.37	23	25	89	130	71	9.0
	21	184	170.42	23	25	89	130	71	10.3
	22	192	178.48	33	35	80	117	71	11.0
	23	200	186.54	33	35	80	117	71	11.8
	24	208	194.60	33	35	80	117	80	12.6
	25	216	202.66	33	35	80	117	80	13.4
	26	224	210.72	33	35	80	117	80	14.3
	28	241	226.86	33	35	80	117	80	16.0
	30	257	243.00	33	35	80	117	80	18.3
	32	273	259.14	33	35	80	117	80	20.4
	35	297	283.36	33	35	80	117	80	23.9
	36	306	291.43	33	35	80	117	80	25.1
	38	322	307.58	38	40	89	127	80	27.7
	40	338	323.74	38	40	89	127	90	30.4
	42	354	339.89	38	40	89	127	90	33.0
	45	378	364.12	38	40	89	127	90	37.5
	48	403	388.36	38	40	89	127	90	43.0
	50	419	404.52	38	40	89	127	90	46.0
	54	451	436.84	38	40	89	127	90	52.5
	60	500	485.33	38	40	89	127	90	64.0
	62	516	501.49	38	40	89	127	90	69.0
	65	540	525.73	38	40	89	127	90	73.5
	70	581	566.15	38	40	89	127	90	90.4

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Nk Standard Duplex Sprockets B Type Nk80-2b Japanese Standard
