Product Description

Hl Type Flexible Muff Flange Bush Flexible Elastic Sleeve Oldham Steel Disc Clamp Shaft Rigid Fcl Pin Coupling With Brake WHEEL

Hl Type Flexible Muff Flange Bush Flexible Elastic Sleeve Oldham Steel Disc Clamp Shaft Rigid FCL Pin Coupling with Brake Wheel

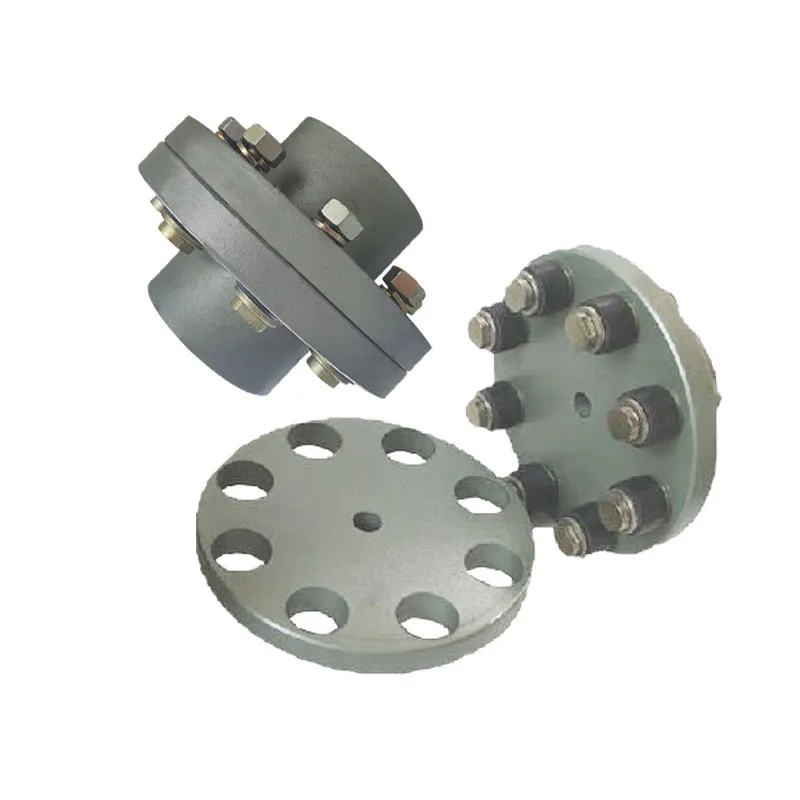

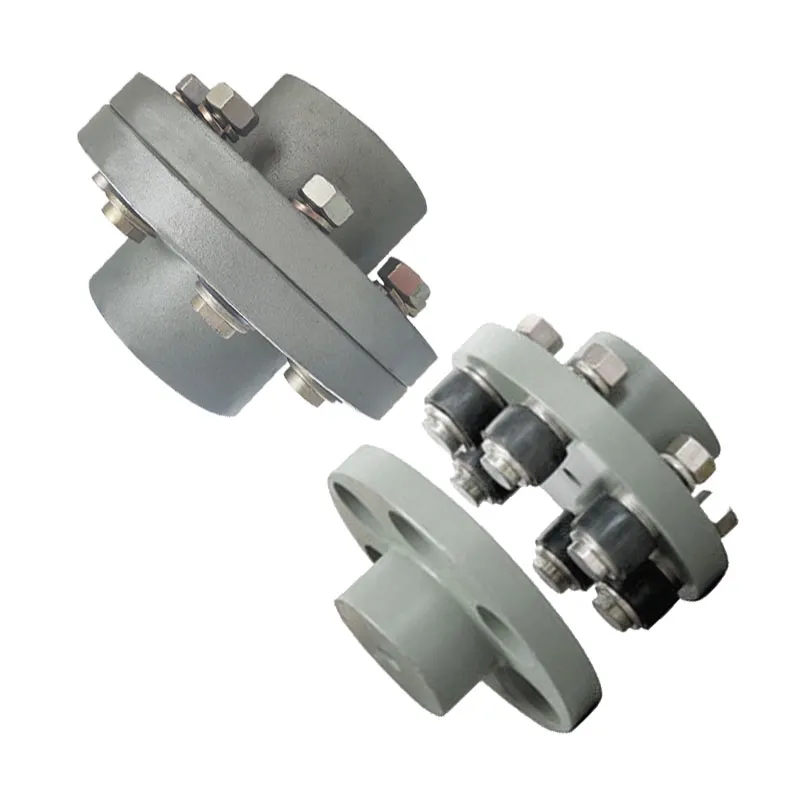

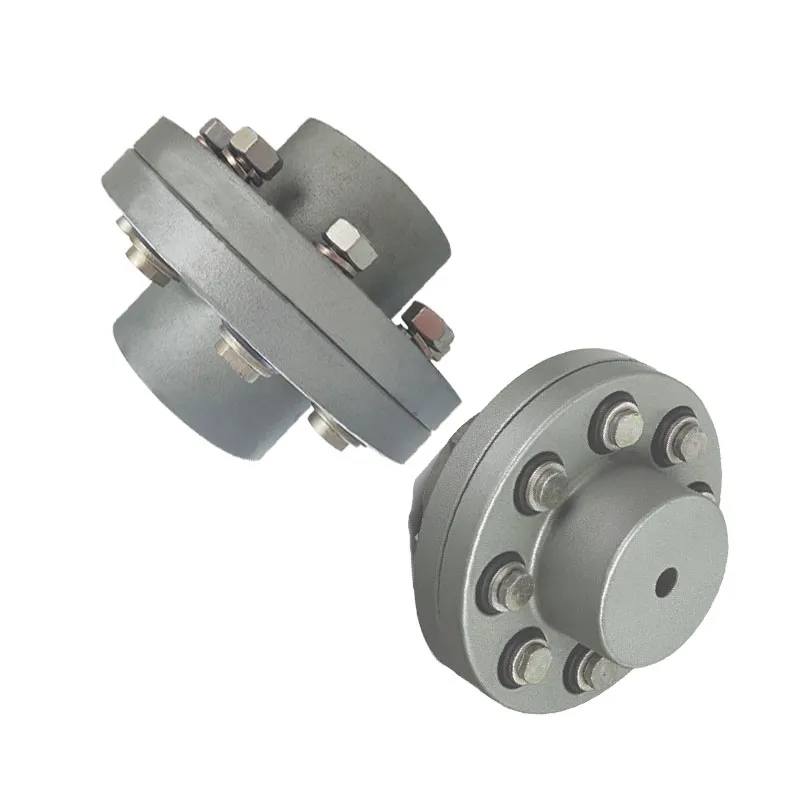

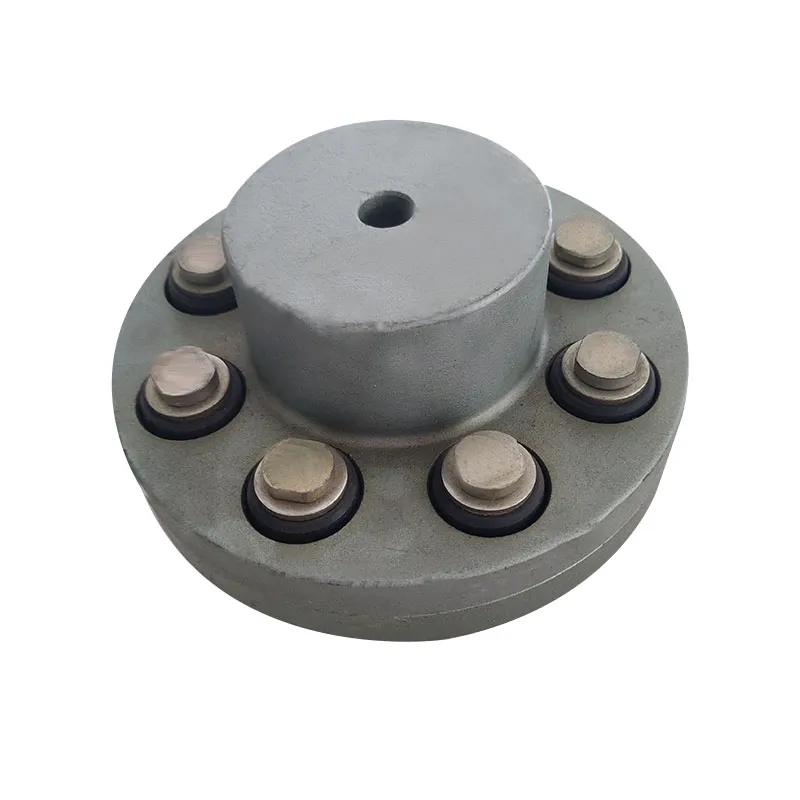

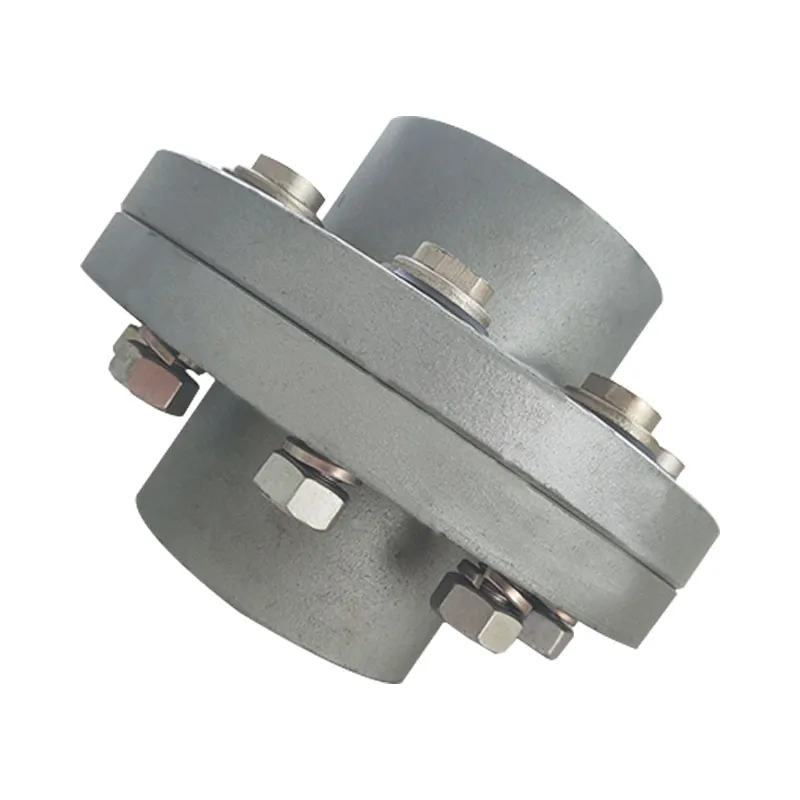

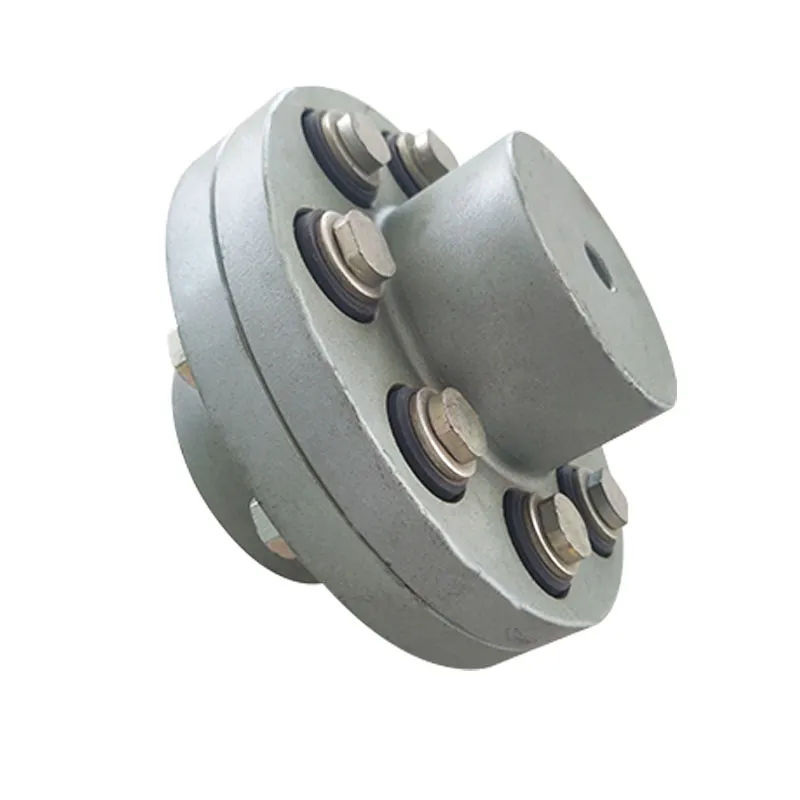

The characteristics of FCL Flexible Pin & Bush Coupling

(1)Coupling is simple in structure, convenient installation, easy replacement, small size, light weight.

(2)If the installation adjustment can keep two relative displacement within the prescribed limits, then coupling will have satisfactory performance and long service life.

(3) It can be widely applied to all kinds of medium and small power transmission shafts, such as reducer, crane, compressor, conveyor, textile machine, hoist and ball mill, which are not loaded by motors.

(4)The allowable relative displacement of the elastic sleeve pin couplings:

Radial displacement: 0.2~0.6mm angular displacement: 0 ° 30 '~1° 30'

Hl Type Flexible Muff Flange Bush Flexible Elastic Sleeve Oldham Steel Disc Clamp Shaft Rigid FCL Pin Coupling with Brake Wheel

Related products:
Hl Type Flexible Muff Flange Bush Flexible Elastic Sleeve Oldham Steel Disc Clamp Shaft Rigid FCL Pin Coupling with Brake Wheel

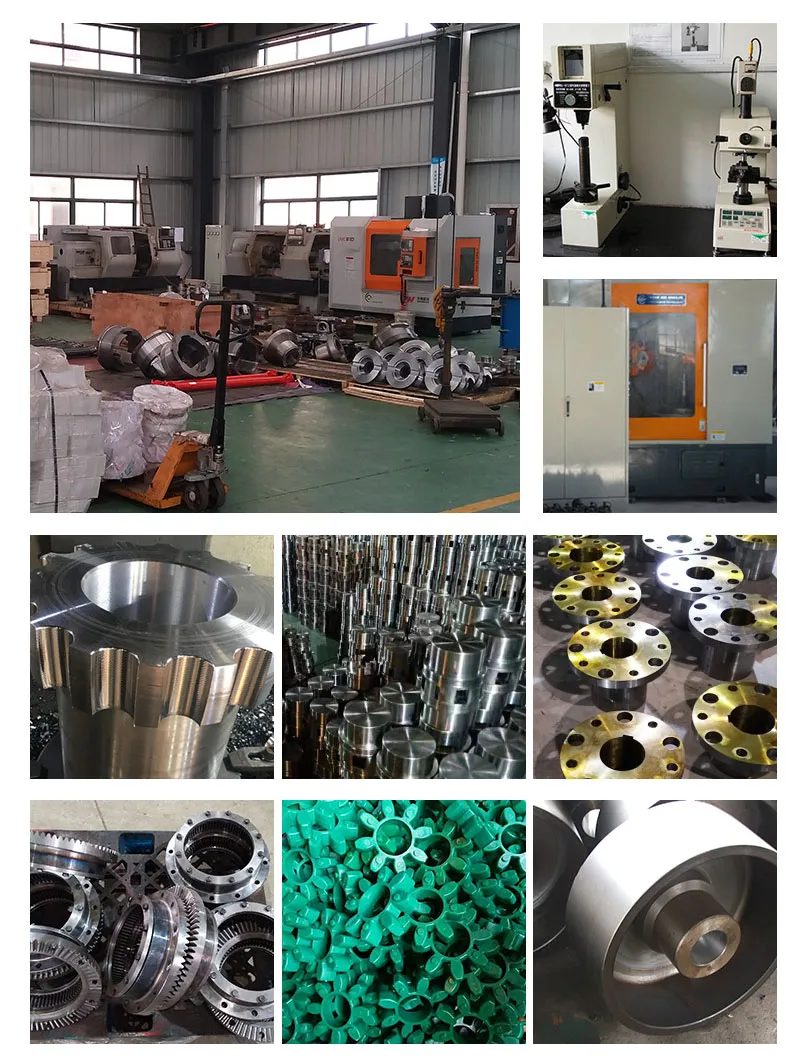

Production workshop:
