Product Description

G series PTO Shaft Spline Tube G2 G4 G5 G6 G7 G8 G38 G42 G50

Reliable Tractor PTO Shaft Assemblies and Replacement Parts
At ever-power, we have the parts and components you need to keep your PTO driveline in excellent condition. We also have complete new assemblies in multiple sizes to fit your applications. Our inventory is massive and includes:
Tractor PTO shafts: If you're looking for a full assembly, we have you covered. We carry a large selection of North
American-designed and Italian-designed PTO driveshafts with the length and spline configurations you need.
CV PTO assemblies: CV (Constant Velocity) PTO shafts work with most tractors and implements. These products balance the tractor power input and shaft output to deliver more stability when engaged.
Cross and bearing kits: Cross and bearing kits are the universal joints that form your PTO drive shaft system's core. This part is the distribution point for power from your PTO assembly to your connected equipment.
Half-shaft assemblies: We have a wide variety of 48-inch and 60-inch Weasler half-shaft Power Take-Off assemblies. Center and end-of-shaft length assemblies are available in both square and rectangular design options.
Additional components: If your PTO shaft parts start to show signs of wear, save money on a new assembly with individual component replacement. We have tons of new guards and guard bearings, inner and outer tubes, yokes, pins, and universal clutches.

Series	540 tr./min			1000 tr./min			MP(NM)
Series	Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
G2	15	21	270	23	31	220	450
G4	26	35	460	40	55	380	780
G5	35	47	620	54	74	520	1050
G6	47	64	830	74	100	710	1450
G7	55	75	970	87	118	830	1800
G8	70	95	1240	110	150	1050	2250
G38	78	105	1380	123	166	1175	2500
G42	79	107	1400	122	166	1175	2500
G50	119	162	2095	182	248	1740	3700

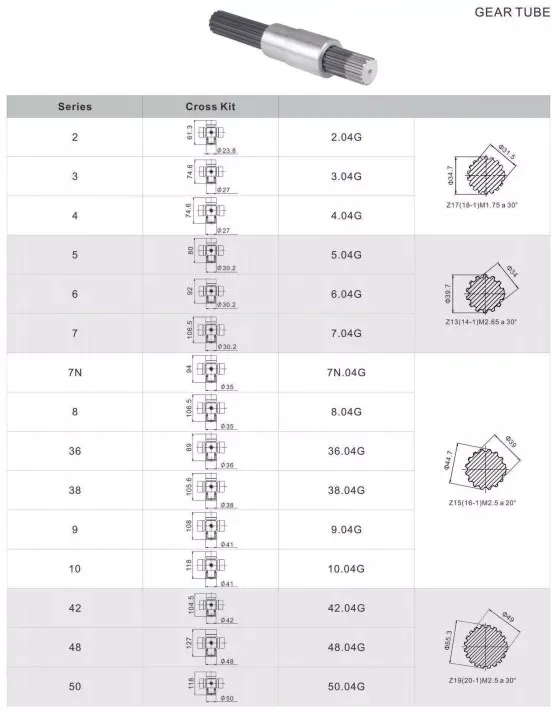

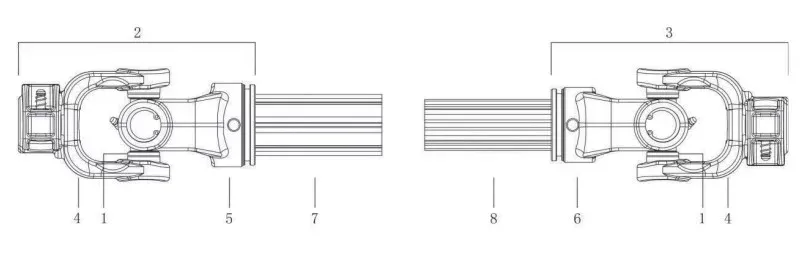

Series	Cross	Joint simple		Splined yoke	Tube yoke		Tube
		Outer	Inner		Outer	Inner	Outer	Inner
	1	2	3	4	5	6	7	8
G2	2.01 (23.8*61.3)	2.0505B+2.01+2.06G	2.0505B+2.01+2.07G	2.0505B	2.06G	2.07G	50*2.5	G35-18
G4	4.01 (27*74.6)	4.0505B+4.01+4.06G	4.0505B+4.01+4.07G	3.0505B	4.06G	4.07G	50*2.5	G35-18
G5	5.01 (30.2*80)	5.0505B+5.01+5.06G	5.0505B+5.01+5.07G	5.0505B	5.06G	5.07G	60*3	G40-14
G6	6.01 (30.2*92)	6.0505B+6.01+6.06G	6.0505B+6.01+6.07G	6.0505B	6.06G	6.07G
G7	7.01 (30.2*106.5)	7.0505B+7.01+7.06G	7.0505B+7.01+7.07G	7.0505B	7.06G	7.07G
G8	8.01 (35*106.5)	8.0505B+8.01+8.06G	8.0505B+8.01+8.07G	8.0505B	8.06G	8.07G	65*3.5	G45-16
G38	38.01 (38*105.6)	38.0505B+38.01+38.06G	38.0505B+38.01+38.07G	38.0505B	38.06G	38.07G	65*3.5	G45-16
G42	2600 (42*104.5)	42.0505B+42.01+42.06G	42.0505B+42.01+42.07G	42.0505B	42.06G	42.07G	75*4	G55-20
G50	50.01 (50*118)	50.0505B+50.01+50.06G	50.0505B+50.01+50.07G	50.0505B	50.06G	50.07G	75*4	G55-20

G Series Pto Shaft Spline Tube G2 G4 G5 G6 G7 G8 G38 G42 G50

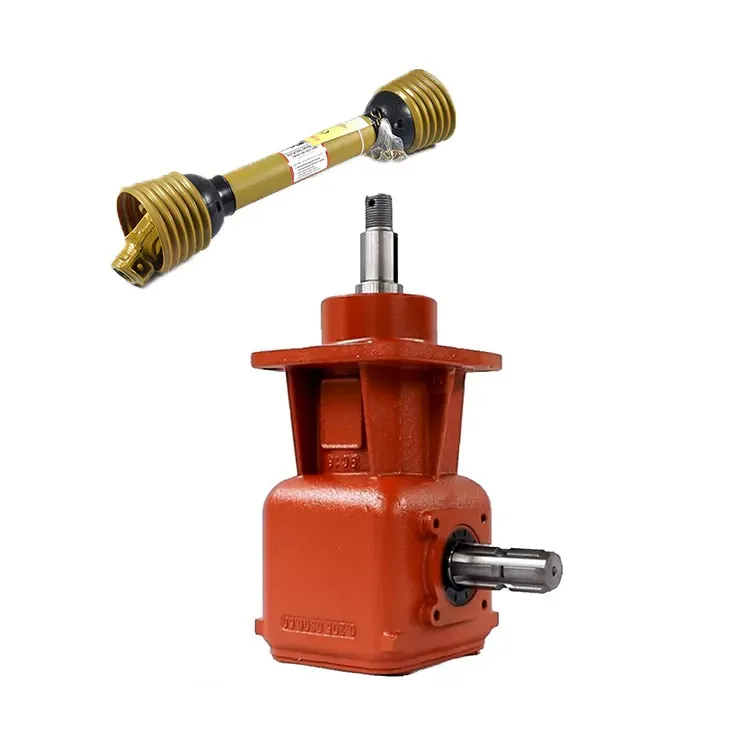

We Also Supply PTO Shafts
https://agricultural-gearbox.en.made-in-china.com/product-group/VqTESwWofuhM/PTO-Shaft-catalog-1.html
G Series Pto Shaft Spline Tube G2 G4 G5 G6 G7 G8 G38 G42 G50
