Product Description

L Series PTO Shaft Lemon Tube L1 L2 L3 L4 L5 L6 L32

Series	540 tr./min			1000 tr./min			MP(NM)
Series	Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
L1	12	16	210	18	25	172	320
L2	15	21	270	23	31	220	450
L3	22	30	390	35	47	330	640
L4	26	35	460	40	55	380	780
L5	35	47	970	54	74	520	1050
L6	47	64	830	74	100	710	1450
L32	39	53	695	61	83	580	1200

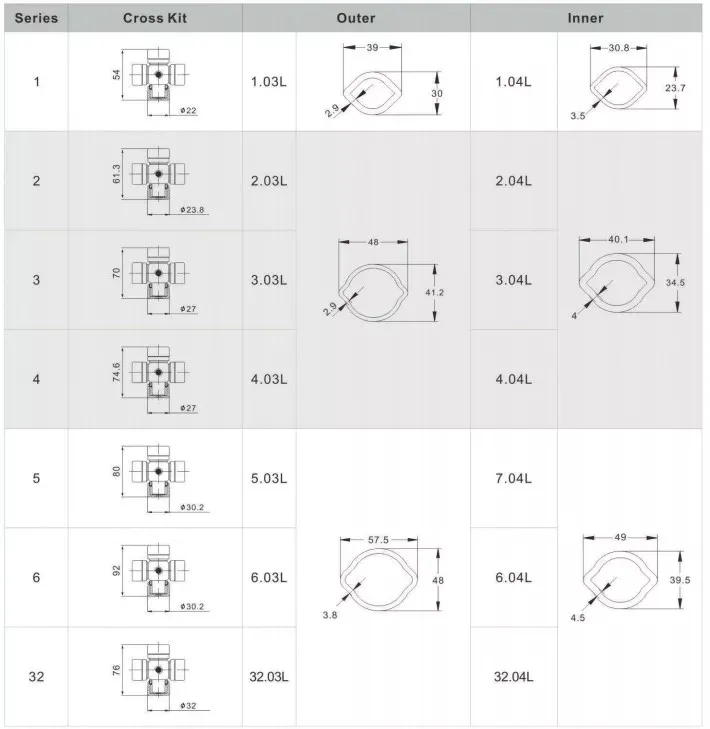

Series	Cross	Joint simple		Splined yoke	Tube yoke		Tube
		Outer	Inner		Outer	Inner	Outer	Inner
	1	2	3	4	5	6	7	8
L1	1.01 (22*54)	1.0505B+1.01+1.06L	1.0505B+1.01+1.07L	1.0505B	1.06L	1.07L	1.03L	1.04L
L2	2.01 (23.8*61.3)	2.0505B+2.01+2.06L	2.0505B+2.01+2.07L	2.0505B	2.06L	2.07L	4.03L	4.04L
L3	3.01 (27*74.6)	3.0505B+3.01+3.06L	3.0505B+3.01+3.07L	3.0505B	3.06L	3.07L
L4	4.01 (27*74.6)	4.0505B+4.01+4.06L	4.0505B+4.01+4.07L	4.0505B	4.06L	4.07L
L5	5.01 (30.2*80)	5.0505B+5.01+5.06L	5.0505B+5.01+5.07L	5.0505B	5.06L	5.07L	6.03L	6.04L
L6	6.01 (30.2*92)	6.0505B+6.01+6.06L	6.0505B+6.01+6.07L	6.0505B	6.06L	6.07L
L32	32.01 (32*76)	32.0505B+32.01+32.06L	32.0505B+32.01+32.07L	32.0505B	32.06L	32.07L

Size Importance

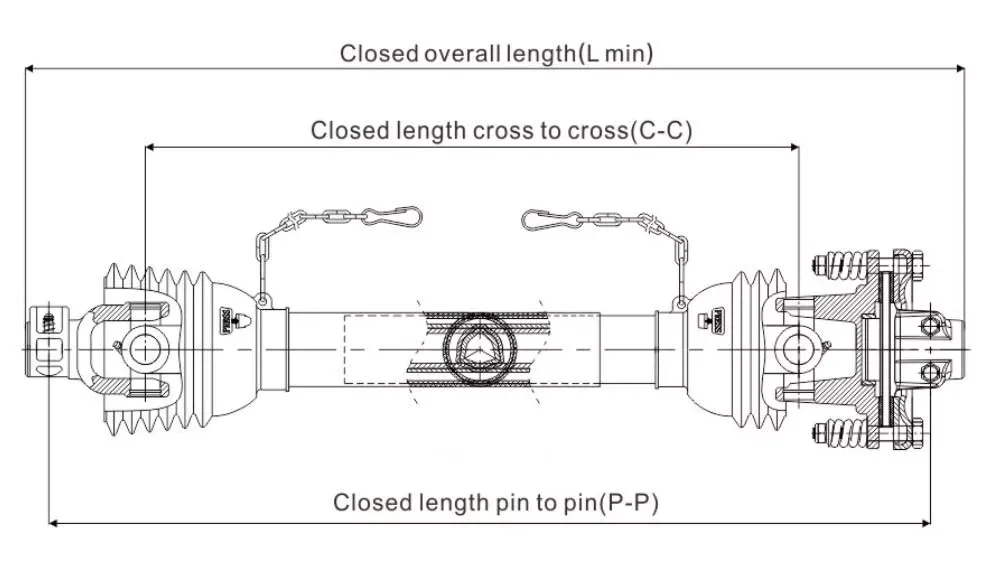

Regardless of what job you'll be using a PTO shaft to complete, it's important that you have the right size. The manufacturer should provide length recommendations to help you get an idea. When measuring a PTO shaft, use a tape measure and measure from the outside of each yoke to obtain the closed length. The series size should correspond with the amount of horsepower your tractor has. There are two different speeds used most commonly with tractor PTO shafts, the 540 (type 1) and 1000 (type 3) RPM.
Part of PTO Shaft
Internal Yoke- There are two, located at both ends of the PTO shaft -tractor and implement. This is welded to the drive end.
Universal Joint- There are two, located at both ends of the PTO shaft.
External Yoke- There are two, located at both ends of the PTO shaft. It has a "Y" shape to connect to the U-joint and a female hole.
Safety Chains- The chains are used to secure the PTO shaft onto the equipment and onto the tractor.
Safety Shield- These cones are found on both ends.

We Also Supply PTO Shafts
https://agricultural-gearbox.en.made-in-china.com/product-group/VqTESwWofuhM/PTO-Shaft-catalog-1.html
L Series Pto Shaft Lemon Tube L1 L2 L3 L4 L5 L6 L32
