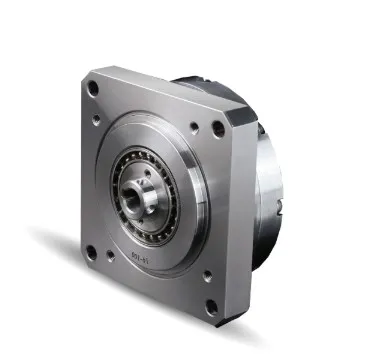

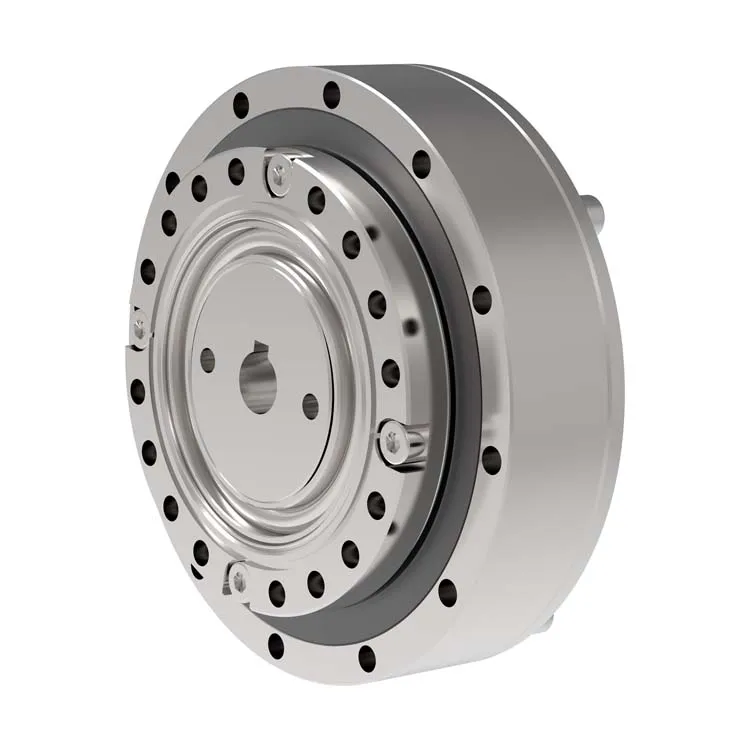

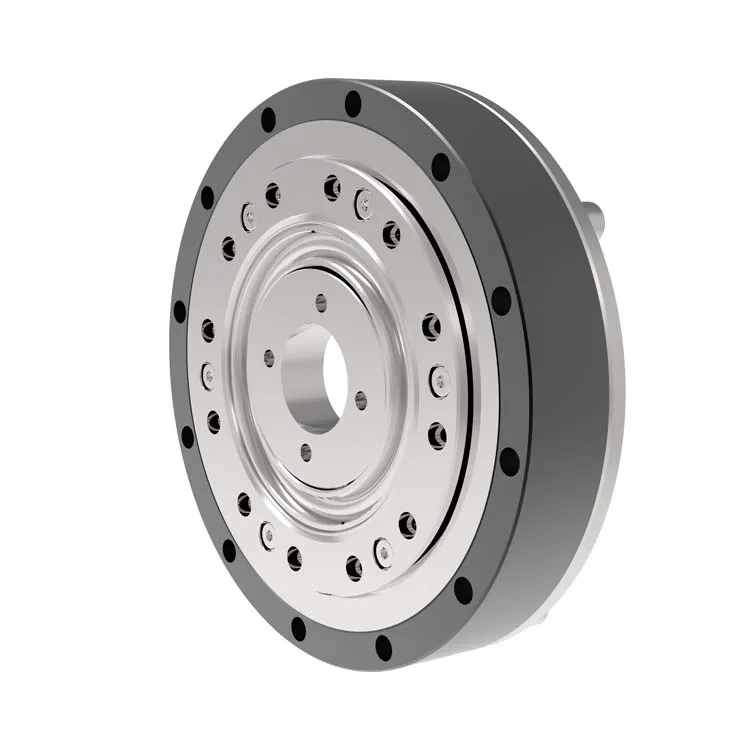

LFS Series
A combination product that with light weight, ultra-flat. Using cross-roller bearing.

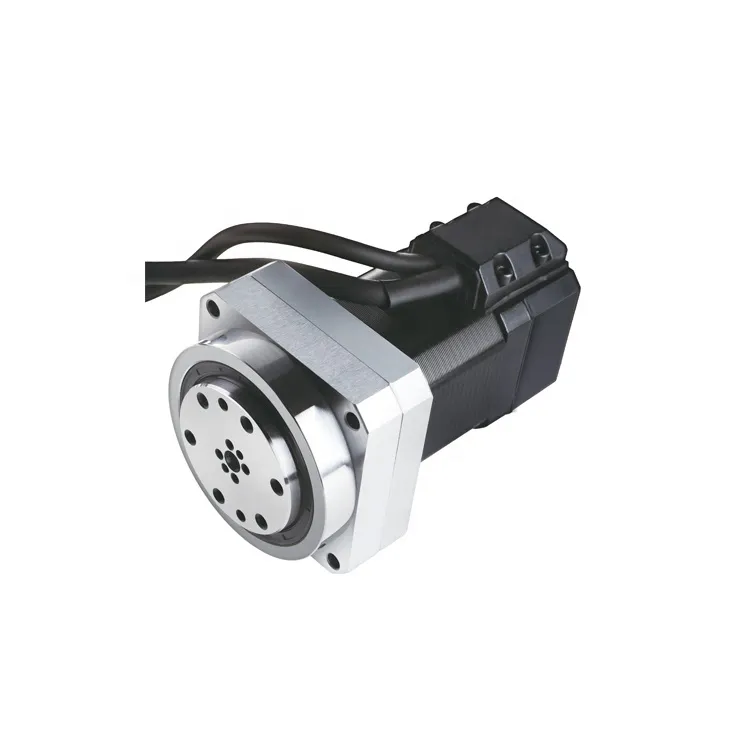

LFS Integrated series
Combined harmonic drive with the high-performance small motor, with the highest input characteristics under the same gear conditions.
| CONTAST US |
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | Design life | ||||
| Grease | Grease | ||||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | Hour | ||
| 11 | 50 | 3.5 | 0.4 | 8.3 | 0.9 | 55 | 0.6 | 17 | 1.7 | 8500 | 3000 | <=20 | 10000 |
| 80 | 5 | 0.5 | 11 | 1.1 | 8.9 | 0.9 | 25 | 2.5 | |||||
| 100 | 5 | 0.5 | 11 | 1.1 | 8.9 | 0.9 | 25 | 2.5 | |||||
| 14 | 50 | 5.4 | 0.6 | 18 | 1.8 | 6.9 | 0.7 | 35 | 3.6 | 8500 | 3000 | <=20 | 10000 |
| 80 | 7.8 | 0.8 | 28 | 2.9 | 11 | 1.1 | 54 | 5.5 | |||||
| 100 | 7.8 | 0.8 | 28 | 2.9 | 11 | 1.1 | 54 | 5.5 | |||||
