Product Description

Features of products

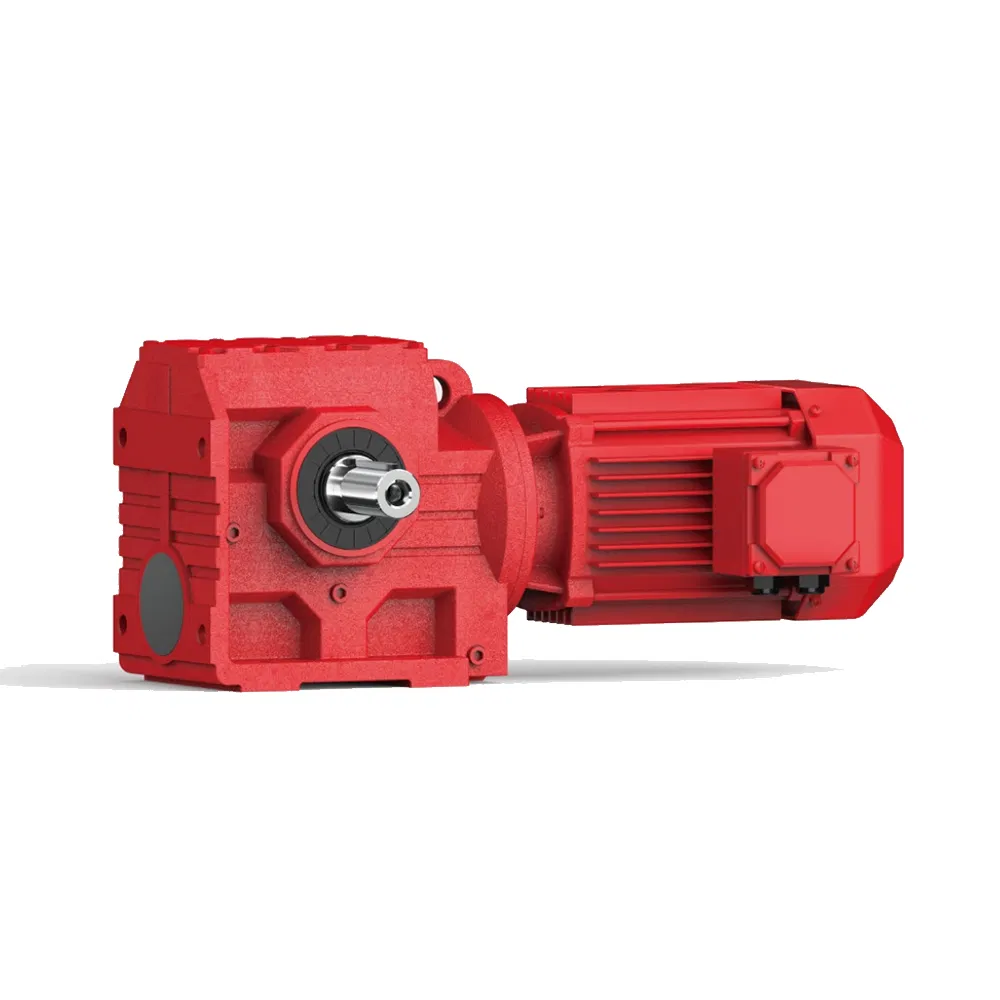

1. The S series helical gear worm gear motor has a high technological content. It has a helical gear and a worm gear combined with an integrated transmission to improve the torque and efficiency of the machine. This series of products have complete specifications, wide speed range, good versatility, adapt to various installation methods, safe and reliable performance and long life, and have implemented international standards.

2. The uneven surface of the body has the effect of heat dissipation, strong vibration absorption, low temperature rise and low noise.

3. The machine has good sealing performance and strong adaptability to the working environment.

4. The machine has high transmission accuracy, and is especially suitable for working in occasions with frequent starting. It can be connected to various types of reducers and equipped with various types of motor drives, and can be installed in the 90-degree transmission operating position.

5. The key components of the motor are made of highly wear-resistant materials and undergo special heat treatment. They have the characteristics of high machining accuracy, stable transmission, small size, large carrying capacity, and long life.

6. The reducer can be equipped with various types of motors, forming a mechatronics, which fully guarantees the quality characteristics of the product.

Gearing Arrangement	Helical-worm
Output Torque	10-4484 Nm
Input Speed	Reference details page
Output Speed	0.21-12 r/min
Color	Customizable
Certificate	ISO9001
Structure	SF
Input power rating	0.55-7.5
Ratio	9.96-241.09
Maximum torque	1270
Input Configurations	Equipped with Electric Motors Solid Shaft Input IEC-normalized Motor Flange
Applicable Motors	Single Phase AC Motor, Three Phase AC Motor Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor
Output Configurations	Solid Shaft Output Hollow Shaft Output
nstallation	Foot-mounted B5 Flange-mounted B14 Flange-mounted Shaft-mounted
Lubrication	Oil-bath and Splash Lubrication

Related Products

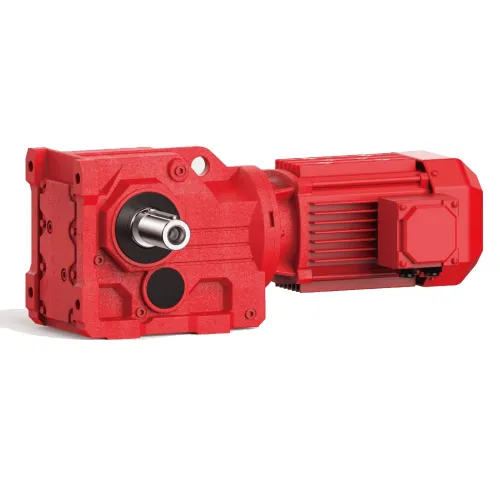

K Series Helical Gear Box Hard Tooth Surface of Helical Gear Speed Reducer Gearbox with Gear Motor 1.5kw
