Helical Gearbox Worm Speed Reducer

Raydafon Group's Helical Gearbox Worm Speed Reducer offers superior torque and efficiency for industrial applications, crafted with premium materials and innovative design. Ideal for engineers and manufacturers, it ensures reliable performance in machinery, reducing downtime and enhancing productivity. Stand out with its durability and precision, delivering peace of mind and operational excellence.

Send Inquiry

Product Description

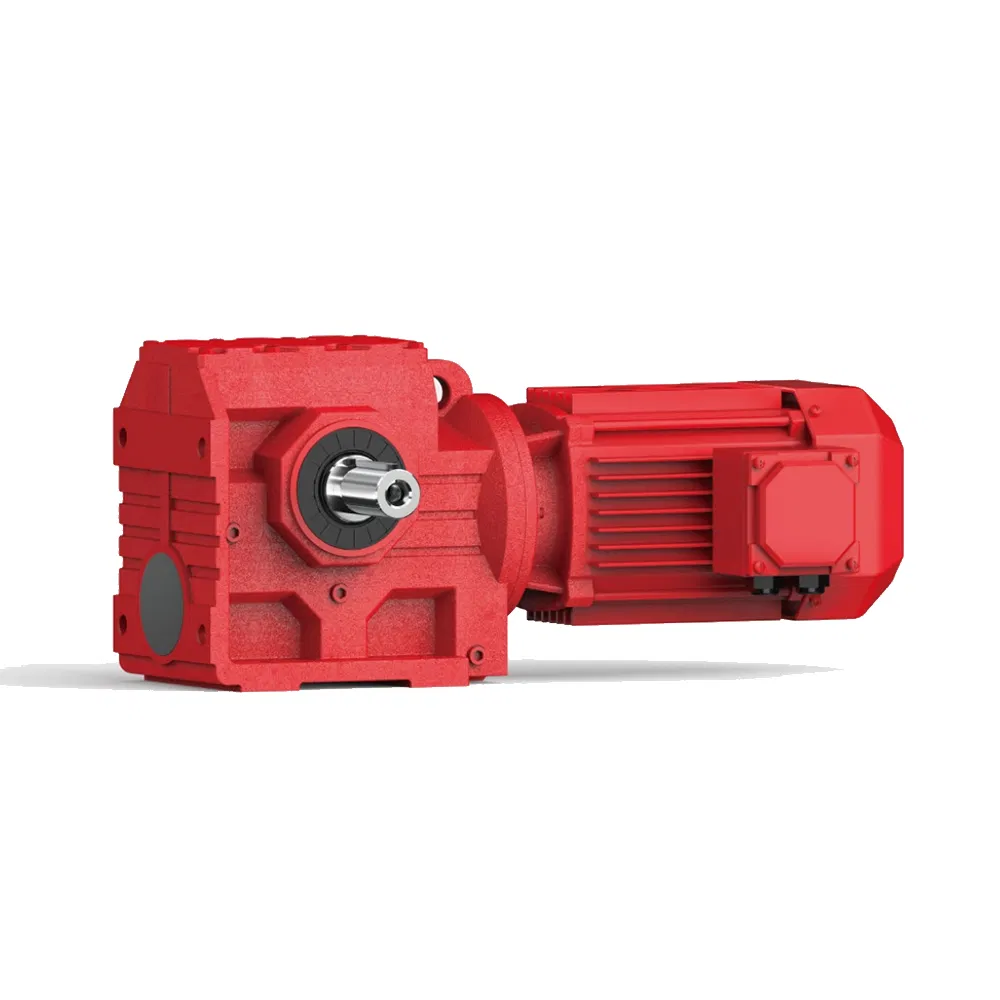

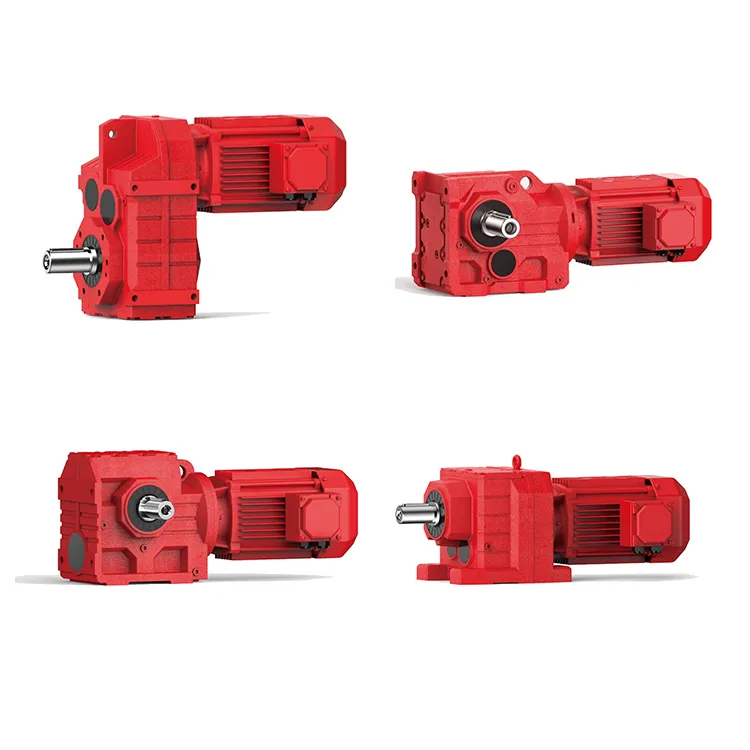

S Series Helical S/Sf/Sfa Gearbox From Speed Reducers Factory Worm Gear Speed Reducer Worm Geared Motor for Hoist with 1.5kw Motor

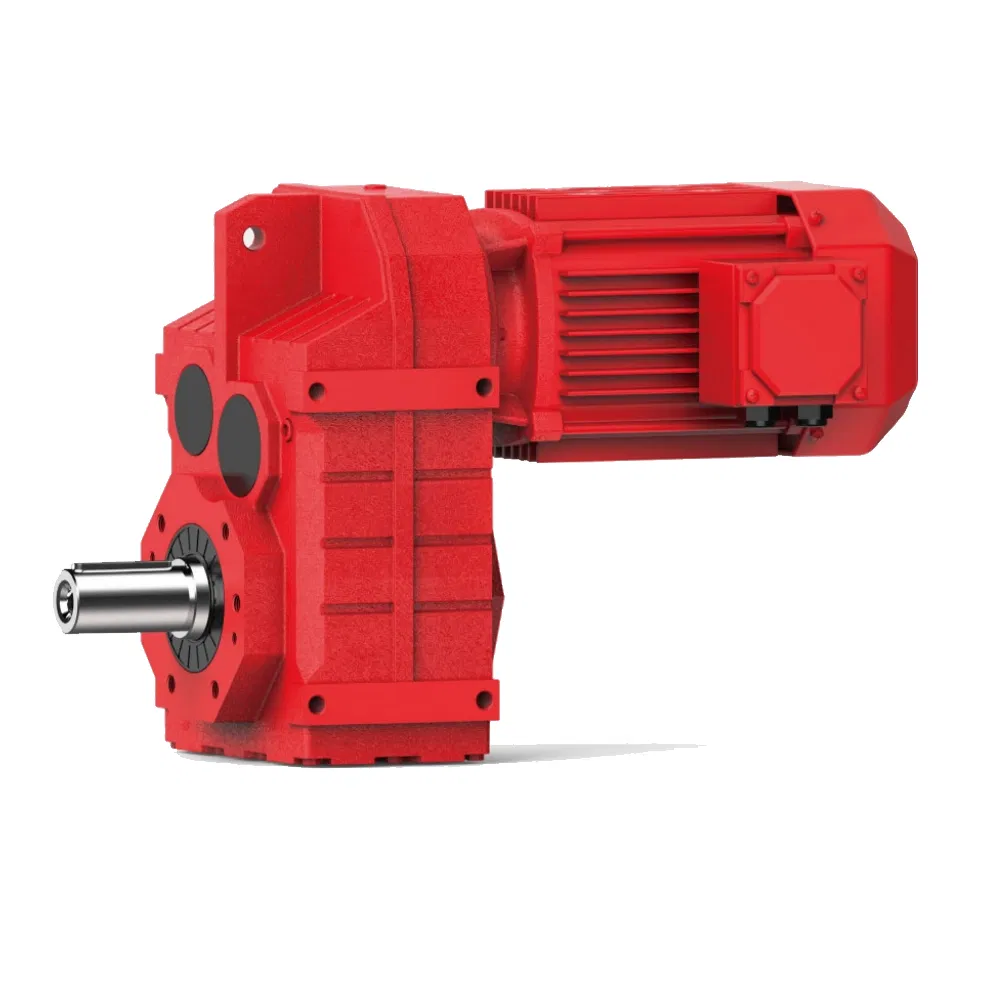

F series differential gearbox is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stageshelical
gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the
process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise
and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,
Chemical Industry , Pharmacy ,Agriculture equipment and Oil industry

1) Output speed: 0.6~1,028r/min

2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW

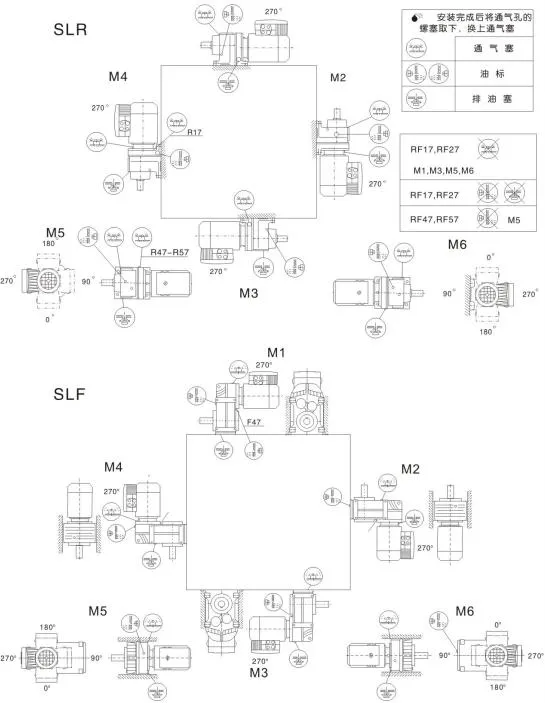

4) Mounted form: foot-mounted and flange-mounted mounting

S Series Helical S/Sf/Sfa Gearbox From Speed Reducers Factory Worm Gear Speed Reducer Worm Geared Motor for Hoist with 1.5kw Motor

Gear Material	20CrMnTi
Case Material	HT250
Shaft Material	20CrMnTi
Gear Processing	Grinding finish by HOFLER Grinding Machines
Color	Customized
Noise Test	65~70dB
Efficiency	94%~98% (depends on the transmission stage)
Lubricating oil	Shell Omala synthetic oil or mineral oil , or similar brand
Heat treatment	tempering, cementiting, quenching,etc.
Brand of bearings	C&U bearing, ZWZ,LYC, HRB,NSK and so on
Brand of oil seal	NAK or other brand
Temp. rise (MAX)	40 °
Temp. rise (Oil)(MAX)	50 °
Vibration	≤20µm
