John Deere Combine Straw Walker Sprocket

Raydafon Group proudly presents the John Deere Combine Straw Walker Sprocket, a durable and precision-engineered component for efficient harvesting. Crafted from high-quality materials, it ensures smooth operation and reduced downtime in agricultural settings. Ideal for farmers and machinery operators, it enhances productivity and reliability, making every harvest season more profitable and stress-free. Unlike competitors, it offers superior compatibility and longevity. Upgrade your equipment today for a seamless farming experience!

Send Inquiry

Product Description

Application

A spare part for the straw walker of the John Deere combine harvesters.

Destination

Ensuring the transmission of torque through the chain to the working units of the drive.
This spare part is used for replacing worn out or damaged parts during repairs.

Properties

Steel or cast iron product of a complex spatial form in the form of an asterisk with a central hole and fastening elements.
On the outer surface of the part is applied a special coating to increase the lifetime of operation.

Parameters Of Z11690 Straw Walker Sprocket

Weight , W	kg	3.5
Inner diameter , d	mm	29
Number of teeth , Z		33
Mounting holes diameter , Dm	mm	10
Height , H	mm	105.8
Gear diameter , Dg	mm	210
Diameter of shaft , Ds	mm	32.5
Key slot	mm	4x7

Usage of Z11690 Straw Walker Sprocket

Combine harvester John Deere: 1166 1166HY/4 1169 1169HY/4 1174 1174HY/4 1177 1177HY/4 1188 1188HY/4 4435 4435HYDRO C100-ORIGIN 3316(CHINA EDDITION) C110(CHINA EDDITION) W210(CHINA EDDITION) C230(CHINA EDDITION)

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

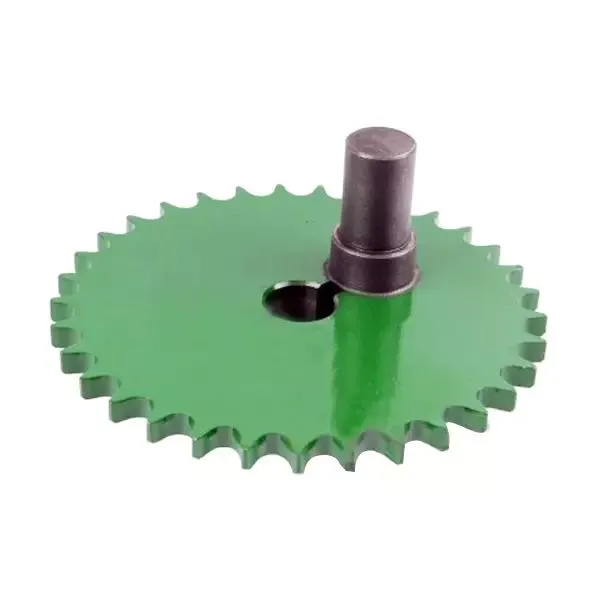

Agricultural Z11690 Straw Walker Sprocket for John Deere Combine

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.
