K Standard Plate Wheel Sprockets K25A

Product DescriptionK Standard Sprockets A type K25A "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"BIG INVENTORY.REASONABLE PRICES.DELIVERY ON TIME.AVAILABLE MADE-TO-ORDER SPROCKET.Chain Pitch(P)6.35mm (1/4 inch)Inner Width(W)3.18mmBush Dia.(Dr)3.30mmTooth Width(T)2.8mm(Dimension : mm)Sprock......

Send Inquiry

Product Description

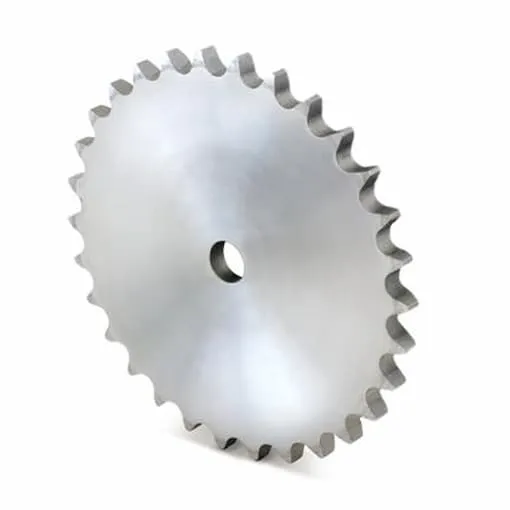

K Standard Sprockets A type K25A

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

Chain Pitch	(P)	6.35	mm (1/4 inch)
Inner Width	(W)	3.18	mm
Bush Dia.	(Dr)	3.30	mm
Tooth Width	(T)	2.8	mm

(Dimension : mm)
Sprocket No.	Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d	Weight (kg)	Material	Teeth
Type	Teeth	Stock Bore	min.
K25A	10	23	20.55	9	11	0.02	Mild Steel	10
12	28	24.53	9	11	0.03	12
13	30	26.53	9	11	0.04	13
14	32	28.54	9	11	0.04	14
15	34	30.54	9	11	0.05	15
16	36	32.55	9	11	0.05	16
17	38	34.56	9	11	0.07	17
18	40	36.57	9	11	0.07	18
20	44	40.59	9	11	0.09	20
24	52	48.65	9	11	0.14	24
25	54	50.66	9	11	0.16	25
27	58	54.70	9	11	0.17	27
28	60	56.71	9	11	0.18	28
29	62	58.73	9	11	0.20	29
30	64	60.75	10	12	0.23	30
32	68	64.78	10	12	0.27	32
33	70	66.80	10	12	0.28	33
35	74	70.84	10	12	0.30	35
36	76	72.86	10	12	0.32	36
37	78	74.88	10	12	0.37	37
38	80	76.90	10	12	0.41	38
40	84	80.93	11	13	0.43	40
42	89	84.97	11	13	0.47	42
45	95	91.03	11	13	0.50	45
50	105	101.13	11	13	0.59	50
55	115	111.23	11	13	0.70	55
60	125	121.33	11	13	0.87	60
70	145	141.54	11	13	1.81	70
75	155	151.64	12	14	1.37	75
80	165	161.74	12	14	1.62	80

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

K Standard Plate Wheel Sprockets a Type K25A (Japanese KANA Standard)

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: K Standard Plate Wheel Sprockets a Type K25A (Japanese KANA Standard), K25A Sprocket, Chain Sprocket
