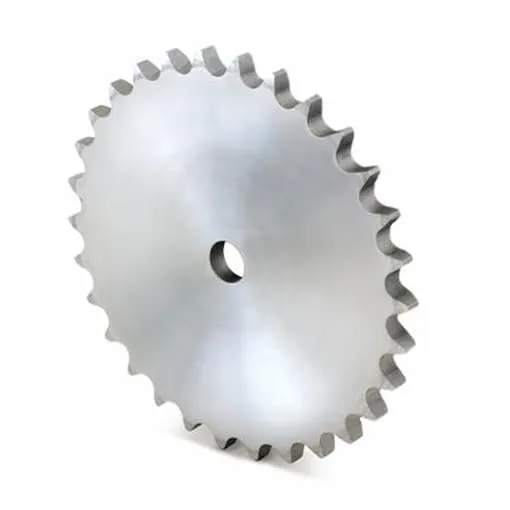

K Standard Plate Wheel Sprockets K60A

Product DescriptionK Standard Sprockets A type K60A "WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"BIG INVENTORY.REASONABLE PRICES.DELIVERY ON TIME.AVAILABLE MADE-TO-ORDER SPROCKET.Chain Pitch(P)19.05mm (3/4 inch)Inner Width(W)12.70mmBush Dia.(Dr)11.91mmTooth Width(T)11.7mm(Dimension : mm)Sp......

Send Inquiry

Product Description

K Standard Sprockets A type K60A

"WE SOLVE YOUR PROBLEMS AND SELL SOLUTIONS"

BIG INVENTORY.
REASONABLE PRICES.
DELIVERY ON TIME.
AVAILABLE MADE-TO-ORDER SPROCKET.

Chain Pitch	(P)	19.05	mm (3/4 inch)
Inner Width	(W)	12.70	mm
Bush Dia.	(Dr)	11.91	mm
Tooth Width	(T)	11.7	mm

(Dimension : mm)
Sprocket No.	Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d	Weight (kg)	Material	Teeth
Type	Teeth	Stock Bore	Min.
K60A	10	68	61.65	14	16	0.27	Mild Steel	10
11	76	67.62	14	16	0.30	11
12	83	73.60	14	16	0.38	12
13	89	79.60	14	16	0.45	13
14	95	85.61	16	18	0.50	14
15	101	91.62	16	18	0.60	15
16	107	97.65	16	18	0.65	16
17	113	103.67	16	18	0.75	17
18	119	109.71	16	18	0.84	18
19	126	115.74	16	18	0.93	19
20	132	121.78	16	18	1.05	20
21	138	127.82	16	18	1.15	21
22	144	133.86	16	18	1.25	22
23	150	139.90	16	18	1.40	23
24	156	145.95	16	18	1.50	24
25	162	151.99	16	18	1.62	25
26	168	158.04	16	18	1.78	26
27	174	164.09	20	22	1.90	27
28	180	170.14	20	22	2.05	28
29	187	176.20	20	22	2.20	29
30	193	182.25	20	22	2.35	30
31	199	188.30	20	22	2.50	31
32	205	194.35	20	22	2.68	32
33	211	200.41	20	22	2.85	33
34	217	206.46	20	22	3.02	34
35	223	212.52	20	22	3.00	35
36	229	218.57	20	22	3.40	36
37	235	224.63	20	22	3.60	37
38	241	230.69	20	22	3.80	38
39	247	236.74	20	22	4.00	39
40	253	242.80	20	22	4.20	40
41	260	248.86	20	22	4.45	41
42	266	254.92	20	22	4.63	42
43	272	260.98	20	22	4.85	43
44	278	267.03	20	22	5.10	44
45	284	273.09	20	22	5.30	45
46	290	279.15	20	22	5.59	46
47	296	285.21	20	22	5.83	47
48	302	291.27	20	22	6.10	48
49	308	297.33	20	22	6.34	49
50	314	303.39	20	22	6.60	50
51	320	309.45	20	22	6.87	51
52	326	315.51	20	22	7.15	52
54	338	327.63	20	22	7.70	54
55	345	333.69	20	22	8.00	55
57	357	345.81	20	22	8.59	57
58	363	351.87	20	22	8.90	58
60	375	363.99	20	22	9.50	60
65	405	394.30	26	28	11.20	65
70	436	424.61	26	28	13.00	70
72	448	436.73	26	28	13.70	72
75	466	454.92	26	28	14.90	75
80	496	485.23	26	28	16.90	80
90	557	545.85	26	28	21.40	90

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

K Standard Plate Wheel Sprockets a Type K60A (Japanese KANA Standard)

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: K Standard Plate Wheel Sprockets a Type K60A (Japanese KANA Standard), Plate Wheel, Sprockets a Type
