LF-151A Rotary Mower Gearbox

Agricultural LF-151A 1:3 Rotary Mower Gearbox Product DescriptionThe rotary mower gearbox LF-151A is a type of gearbox that is specifically designed for use with rotary mowers. It is a custom-made gearbox that is engineered for high-power transmission at low speed. It is a high-performance gearbox t......
 Agricultural LF-151A 1:3 Rotary Mower Gearbox

Product Description
The rotary mower gearbox LF-151A is a type of gearbox that is specifically designed for use with rotary mowers. It is a custom-made gearbox that is engineered for high-power transmission at low speed. It is a high-performance gearbox that can withstand heavy loads and tough working conditions.Agricultural Lf-151A 1: 3 Rotary Mower GearboxAgricultural Lf-151A 1: 3 Rotary Mower Gearbox
Product Description
Rotary Mower Gearboxes - Replacement of Gearbox LF-151A 1:3
Product details
  • All gearboxes are supplied without oil.
  • First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
  • Contact us for power at a different RPM.
Application range
Mowers
Consists of
  • Gearbox
  • Without oil
Contains oil
No
Max. oil capacity
1.3 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG25
Weight
21.5 kg
Gear arrangement Increasing
21 - 22
Input power kW / HP Increasing
33.1 / 45 kW/HP
Input shaft Increasing
Y
Output Torque DaNm Increasing
18.9 daNm
Ratio Increasing
1: 3
Ratio Reducing
3: 1

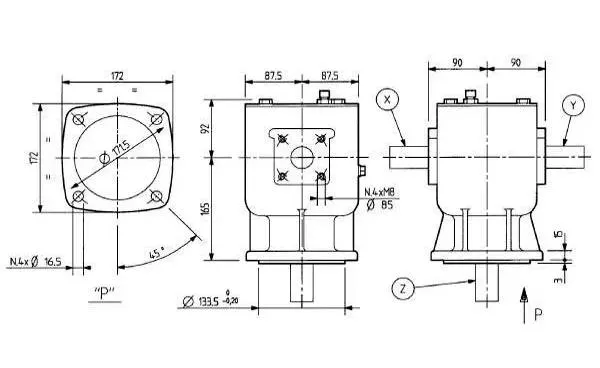

Shaft Y
1 3/8" (6) (A)
Shaft Z
35 (B)



We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.

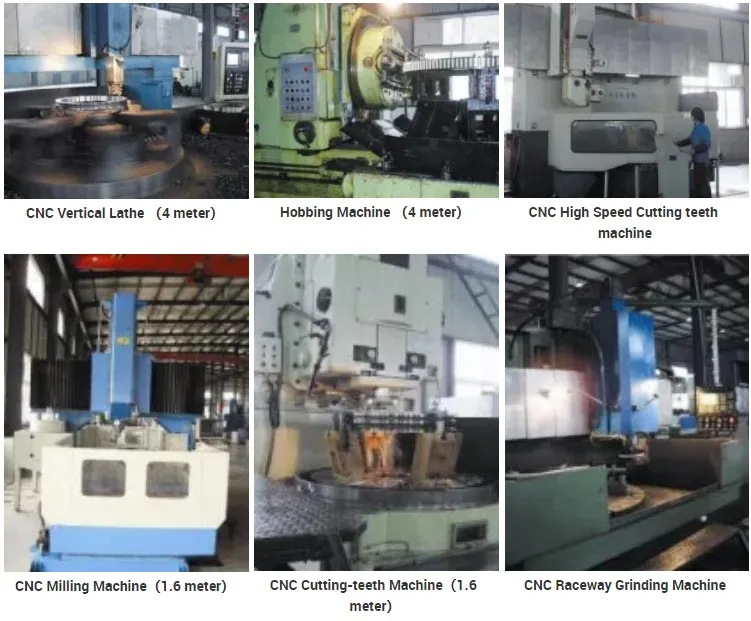

Our Equipments

Agricultural Lf-151A 1: 3 Rotary Mower Gearbox
Certification
Agricultural Lf-151A 1: 3 Rotary Mower Gearbox

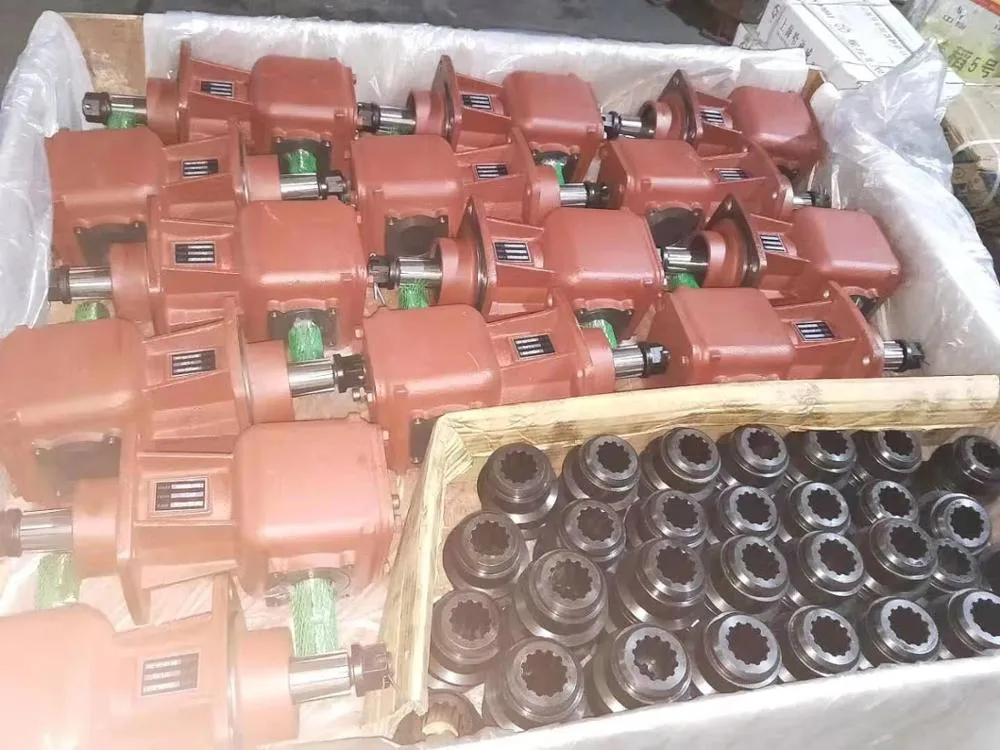

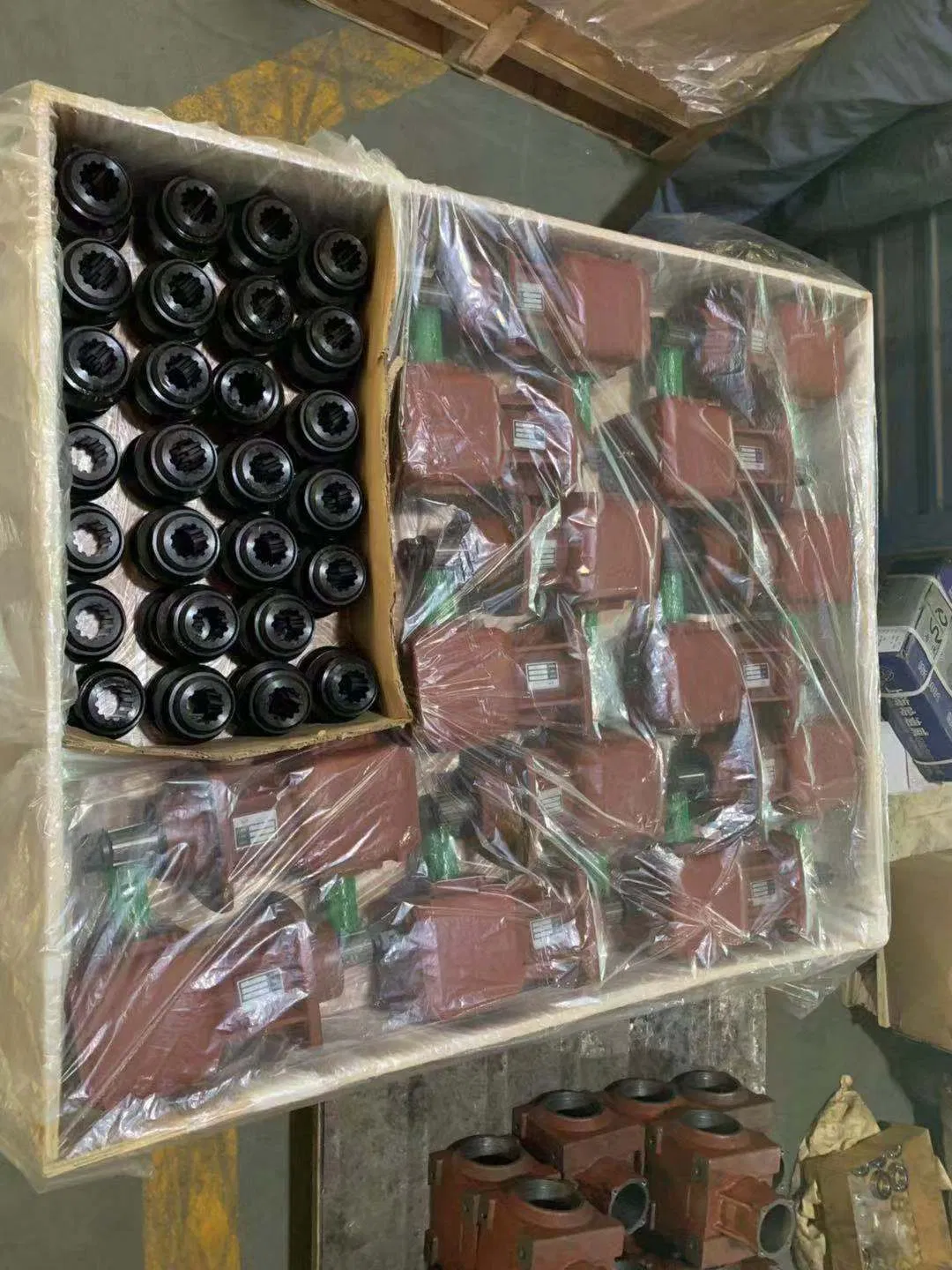

Packaging and Shipment
Agricultural Lf-151A 1: 3 Rotary Mower Gearbox
Related products

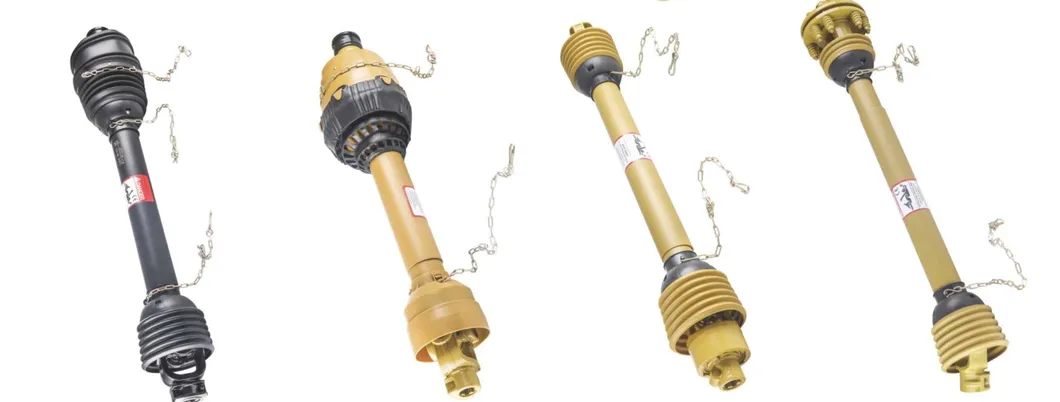

PTO Shaft
