The gearbox LF-211J is a type of rotary mower gearbox that is designed for use in agricultural and industrial applications. It is a high-performance gearbox that is designed to provide reliable and efficient power transmission for rotary mowers. The LF-211J rotary mower gearbox features a compact design and is made from high-quality materials, including high-strength steel and aluminum. It has a gear ratio of 1:1.46 and is capable of handling high torque loads. The rotary mower gearbox is designed to be easy to install and maintain, with a simple and robust design that minimizes the risk of failure. It is also designed to operate quietly, which can be important in applications where noise levels need to be kept to a minimum.
Overall, the rotary mower gearbox LF-211J is a reliable and efficient solution for agricultural and industrial applications that require high-performance power transmission. Its compact design, high torque capacity, and ease of installation and maintenance make it a popular choice in a variety of industries.
 |
 |
| Product Description |

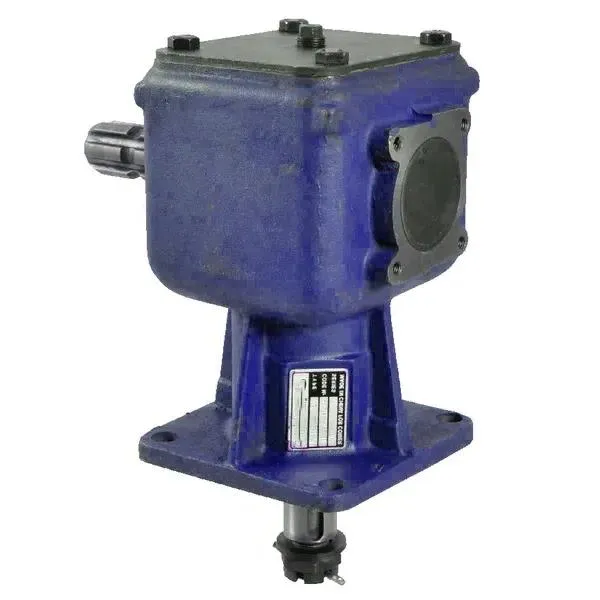

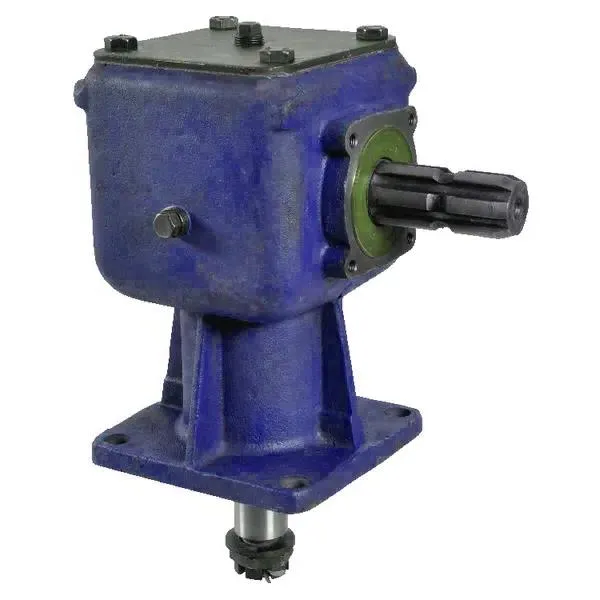

Rotary Mower Gearboxes - Replacement of Gearbox LF-211J
|
|---|---|
| Product details |
|
| Application range |
Mowers
|
| Consists of |
|
| Contains oil |
No
|
| Max. oil capacity |
0.8 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Cast iron GGG40
|
| Weight |
14 kg
|
| Gear arrangement Increasing |
3
|
| Input power kW / HP Increasing |
14.7 / 20 kW/HP
|
| Input shaft Increasing |
X
|
| Output Torque DaNm Increasing |
8.9 daNm
|
| Ratio Increasing |
1: 2.83
|
| Ratio Reducing |
2.83 : 1
|

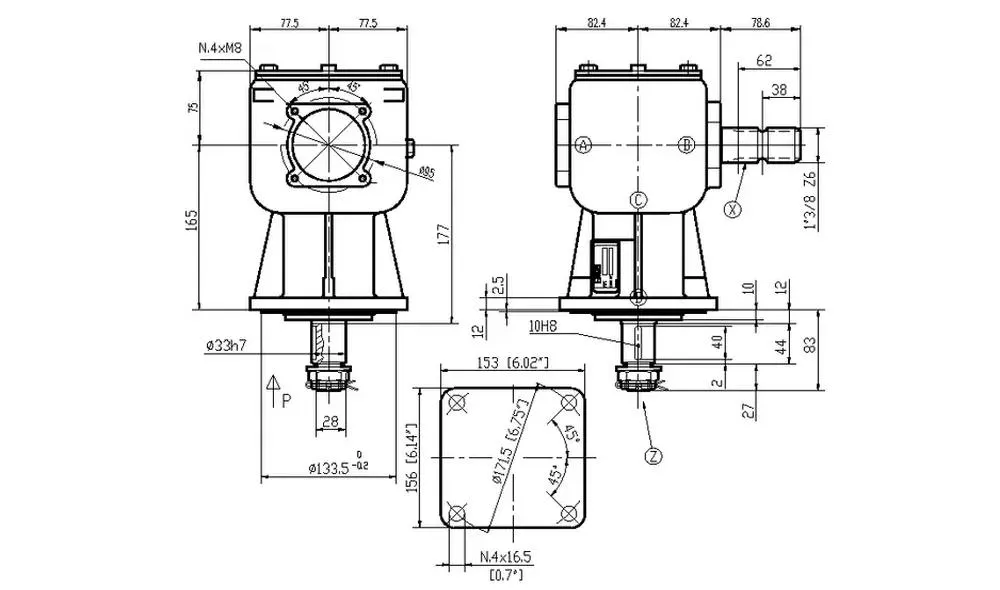

| Shaft X |
1 3/8" (6)
|
| Shaft Z |
33 h7
|
We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.
Our Equipments
PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
