Product Description

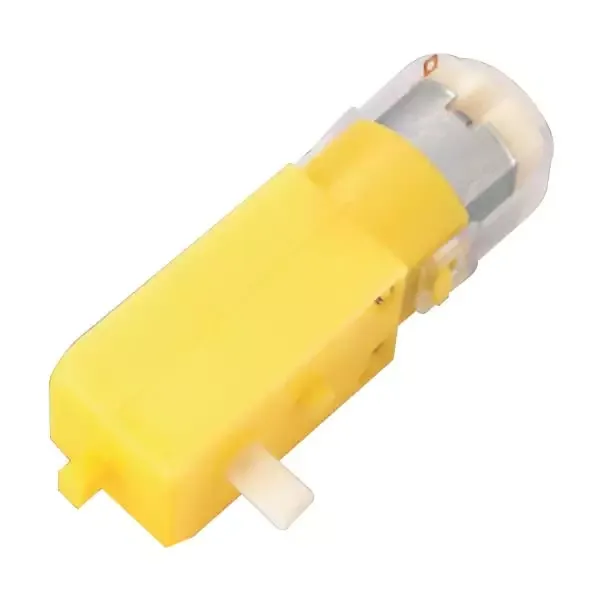

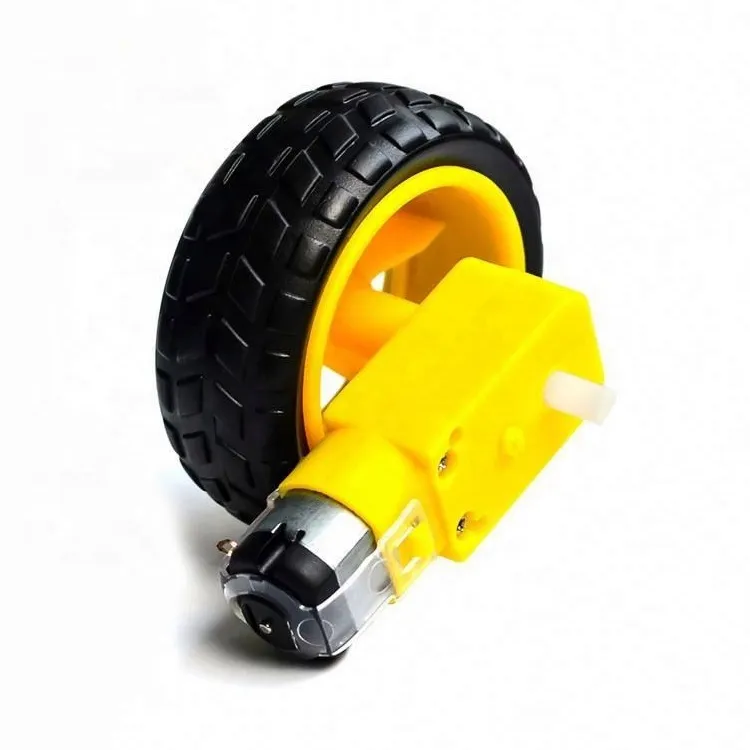

Plastic Gearbox Mini Geared Motor TGP01S-A130

* TGP plastic gears gearbox plus A130 permanent magnet DC motor
* Small size dc gear motor with low speed and big torque
* Suitable to small diameter, low noise, and big torque application
* reduction ratio: 48,120,180,220,288

Characters of Mini Geared Motor
* Small size dc gear motor with low speed and big torque
* Suitable for small diameter. Low noise and big torque application
* Reduction ratio: 48,120,180,220,288
* Single shaft. Small size 18.7mm*22.3mm*64.5mm
* DC plastic gear motor with low speed and big torque

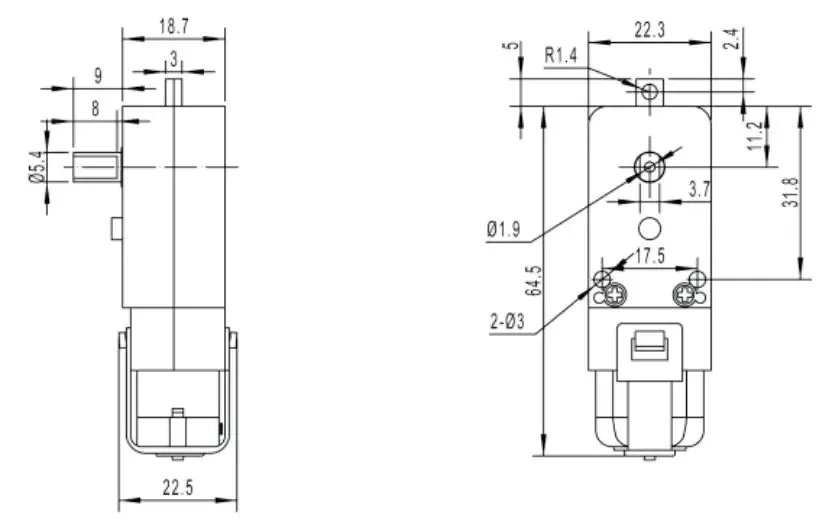

Gear motor dimension (mm)
Plastic Gearbox Mini Geared Motor Tgp01s-A130

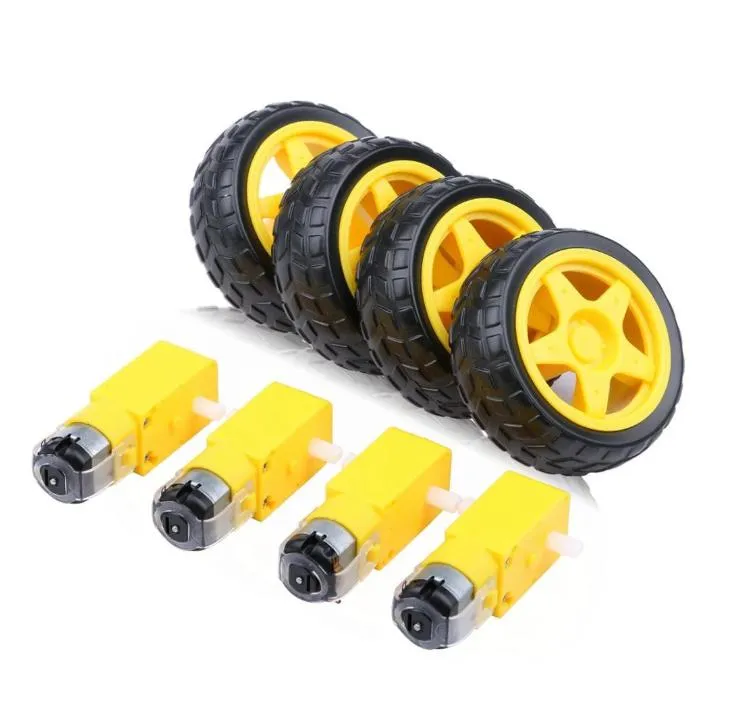

Application: Robot, Toys, Remote Control Toy cars, etc.
Mini Geared MotorTechnical Data

Motor model No	Rated voltage VDC	No-load speed r/min	No-load current mA	Stall torque g.cm	Stall current A
TFE-130RA-12215	6.0	11500	120	20	0.85
TFE-130RA-14175	3.0	8000	120	13	0.70
TFE-130RA-18100	3.0	11500	250	20	1.80

It is also available if you have any special requirements for the motor.
Gear Motor Technical Data:
Gearbox with motor: TGP01D-A130-12215-XXX
reduction ratio: 48 120 180 220 288
No-load speed rpm: 230 90 60 50 38
Max. momentary tolerance torque kg.cm: 0.7 1.4 2.0 2.2 2.8
Gearbox with motor
TGP01D-A130-14175-XXX
reduction ratio: 48 120 180 220 288
No-load speed rpm: 150 60 40 33 25
Max. momentary tolerance torque kg.cm: 0.5 0.9 1.2 1.4 1.8
TGP01D-A130-18100-XXX
reduction ratio: 48 120 180 220 288
No-load speed rpm: 230 90 60 50 38
Max. momentary tolerance torque kg.cm: 0.7 1.4 2.0 2.2 2.8

Application

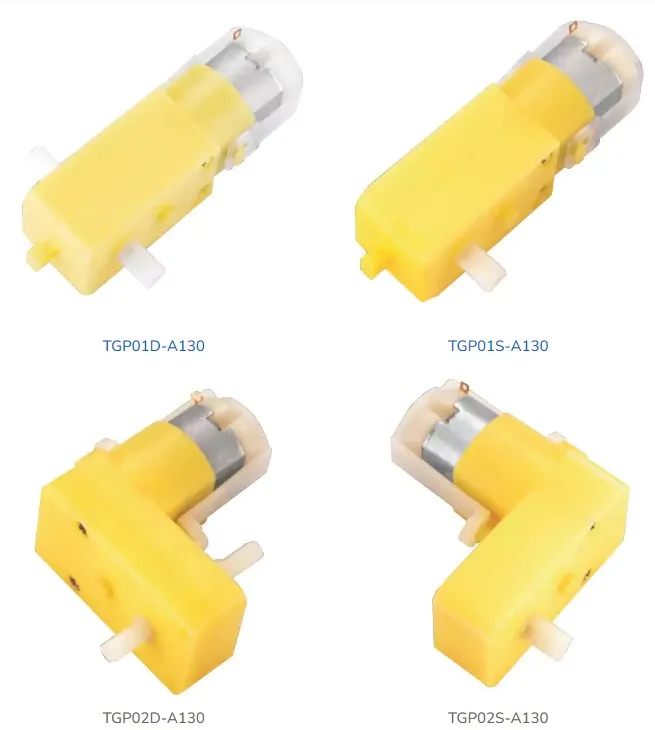

Plastic Gearbox Mini Geared Motor Tgp01s-A130 Other Plasstic gearbox plus A130 DC motor

What is a DC motor?
A direct current (DC) motor is a kind of rotating electrical device, which converts the direct current of electric energy into mechanical energy. The inductor (coil) in the DC motor generates a magnetic field and generates rotating motion when the DC voltage is applied to its terminals. There is an iron shaft inside the motor, which is wrapped in a circle of wires. The shaft contains two fixed north-south magnets on both sides, which generate repulsion and attraction and then generate torque. ISL products design and manufacture brushless DC motors and brushless DC motors. We customize the size and performance of DC motors to meet your specifications.
Micro gear motor selection process
Need help determining the motor suitable for your application? Check our motor selection guide or visit the ISL motor database. In the conceptual design stage, the motor selection process may be challenging, but our engineers will help. We provide concierge services for all DC motor and gear motor projects. Our team of engineers works with you to provide the best component solutions. The following points can help you determine and select the most suitable motor or gear motor for our application.
*Design requirements - the design evaluation stage of studying product development requirements, design parameters, equipment functions, and product optimization.
*Design calculation - the calculation used to determine which motor is most suitable for your application. The design calculation determines the transmission ratio, torque, rotating mass, working coefficient, suspension load, and test analysis.
*DC motor/gear motor type - the most common motor converts electrical energy into mechanical energy. These types of motors are powered by direct current (DC).
*Motor specifications - once the design calculations are made and the application parameters are defined, you can use these data to determine which motor or gear motor is best for your application. Some of the most common specifications to consider when selecting a motor or gear motor include:
**Voltage
*Current
*Power
*Torque
*Rotational speed
*Life expectancy / duty cycle
*Rotation (clockwise or counterclockwise)
*Shaft diameter and length
*Enclosure limits

Plastic Gearbox Mini Geared Motor Tgp01s-A130

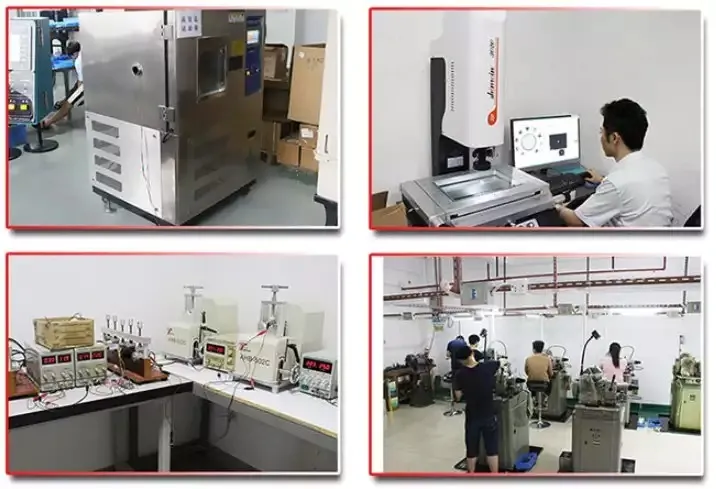

Nowadays, the company has a large-scale workshop, administration buildings, and staff dormitories. In the meanwhile, the company has an excellent research facility, manufacturing facility, and inspection facility. The company owns a specialized product engineering department, mold making and assembled center, and customer customization accepted. The company has strong technical strength, and excellent production, and management system. The company always focuses on every detail: materials, design, production, shipment, and customers' feedback. Providing satisfactory service to our customers is always the main principle of the company.
Instead of high profit-seeking, building and maintaining long-term cooperation relationship with customers is what the company truly focus on, and the company is sincerely looking forward to having a better future with cooperative partners.
