New Holland Combine Harvester Chain Sprocket

Raydafon Group presents the New Holland Combine Harvester Chain Sprocket, a durable component crafted from high-grade steel for smooth operation in agricultural harvesting. Ideal for farmers, it ensures reliability and efficiency, reducing downtime with superior design. Feel the confidence of enhanced performance and longevity, standing out with precision engineering and trusted quality. A must-have for seamless farming success.

Send Inquiry

Product Description

80417785 Chain Sprocket Fits the following models

New Holland Combine harvester : 8030 8040 8050 8055 8060 8070 8080 TC52 TC56 TC57 TC54 TF42 TF44 TF46 TF74 TF78 TX30 TX32 TX34 TX36 TX62 TX64 TX65 TX66 TX67 TX68

A spare part for NEW HOLLAND сombine.
The Sprocket is a necessary component of the chain drive. It transmits torque between two parallel shafts through flexible components (chain).
A sprocket is a single row toothed special-shaped wheel, which is characterized by the following parameters: width of roller sprocket, chain pitch, the outer diameter of the sprocket, and a number of teeth of the sprocket, width of sprocket diameter matched with the shaft.

Weight, W	kg	1.44
Inner diameter, d	mm	30
Outer diameter, D	mm	104
Number of teeth, Z		9
Mounting holes diameter, Dm	mm	7.5
Height, H	mm	75
Outside diameter, D1	mm	129
Key slot	mm	8х75х4

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

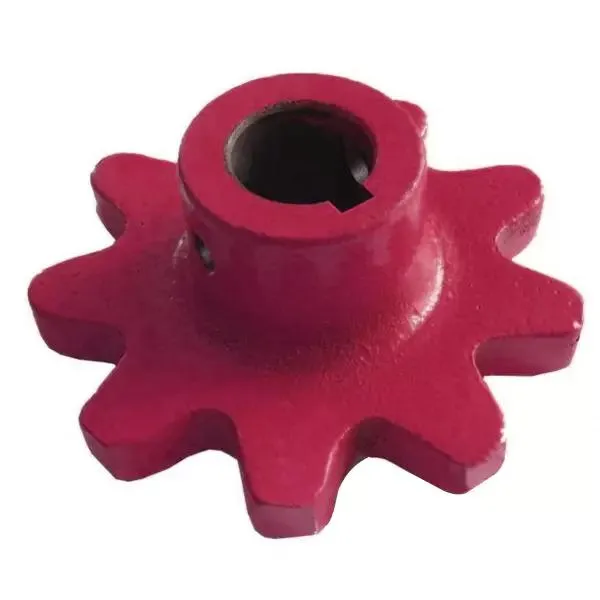

Agricultural 80417785 Chain Sprocket for New Holland Combine Harvest

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.
