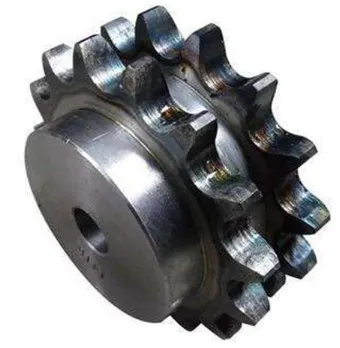

Nk Standard Sprockets B Type Duplex Nk100-2b 2c

Product Description Chain TypeNo.100-2 Pitch(P)31.75 mmInternal width(W)19.05 mmRoller Dia.(Dr)19.05 mmTeeth width(T)17.0 mm (M)52.8 mmSprockets No.Outside Dia.DoPitch Dia.DpBore dHubWeight(kg)TypeTeeth No.Stockmin.max.BDBLNK100-2B NK100-2C10117102.7422244670803.5011127112.7022245580804.2012138122.......

Send Inquiry

Product Description

Chain Type	No.100-2
Pitch	(P)	31.75 mm
Internal width	(W)	19.05 mm
Roller Dia.	(Dr)	19.05 mm
Teeth width	(T)	17.0 mm
	(M)	52.8 mm

Sprockets No.		Outside Dia. Do	Pitch Dia. Dp	Bore d			Hub		Weight (kg)
Type	Teeth No.	Outside Dia. Do	Pitch Dia. Dp	Stock	min.	max.	BD	BL	Weight (kg)
NK100-2B NK100-2C	10	117	102.74	22	24	46	70	80	3.50
	11	127	112.70	22	24	55	80	80	4.20
	12	138	122.67	28	30	60	90	80	5.00
	13	148	132.67	28	30	66	100	80	6.00
	14	158	142.68	28	30	75	110	80	7.00
	15	168	152.71	28	30	80	120	80	7.10
	16	179	162.74	28	30	89	130	80	7.70
	17	189	172.79	28	30	89	130	80	8.90
	18	199	182.84	28	30	89	130	80	9.60
	19	209	192.90	28	30	89	130	90	12.80
	20	220	202.96	28	30	89	130	90	13.50
	21	230	213.03	28	30	89	130	90	14.30
	22	240	223.10	28	30	89	127	90	19.35
	23	250	233.17	28	30	89	127	90	20.85
	24	260	243.25	38	40	95	137	90	22.62
	25	270	253.32	38	40	95	137	90	24.25
	26	281	263.40	38	40	95	137	90	25.94
	28	301	283.57	38	40	95	137	90	29.52
	30	321	303.75	38	40	95	137	90	33.37
	32	341	323.92	38	40	95	137	90	37.48
	35	372	354.20	38	40	95	137	90	44.15
	36	382	364.29	38	40	95	137	90	46.50
	38	402	384.48	38	40	95	137	90	51.41
	40	422	404.67	38	40	103	147	100	58.46
	42	443	424.86	38	40	103	147	100	63.90
	45	473	455.16	38	40	103	147	100	72.56
	48	503	485.45	38	40	103	147	100	81.81
	50	524	505.65	38	40	103	147	100	88.31
	54	564	546.05	38	40	103	147	100	102.11

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Nk Standard Sprockets B Type Duplex Nk100-2b / Nk100-2c Japanese Standard
