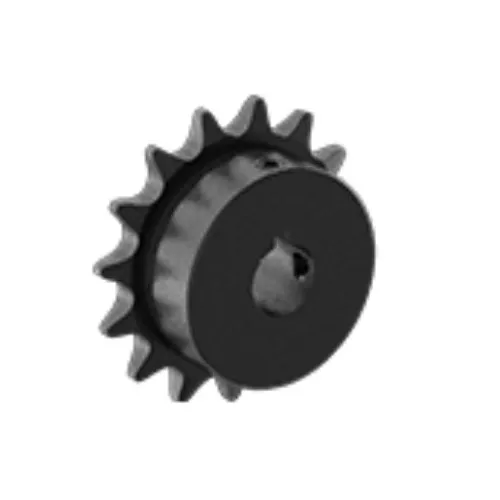

NK160B Sprockets B Type

Product Description Sprocket No.Outside Dia.DoPitch Dia.DpBore Dia.dHubWeight(kg) TypeZStock Bore Min.MaxBDBL NK160B10186164.39262870105636.8 11204180.31262880117638.3 12220196.28262889127639.9 13237212.272628951377112.5 14253228.302628951377113.8 15269244.332628951377115.2 16286260.39262810......

Send Inquiry

Product Description

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia.d			Hub		Weight (kg)
Type	Z	Outside Dia. Do	Pitch Dia. Dp	Stock Bore	Min.	Max	BD	BL	Weight (kg)
NK160B	10	186	164.39	26	28	70	105	63	6.8
	11	204	180.31	26	28	80	117	63	8.3
	12	220	196.28	26	28	89	127	63	9.9
	13	237	212.27	26	28	95	137	71	12.5
	14	253	228.30	26	28	95	137	71	13.8
	15	269	244.33	26	28	95	137	71	15.2
	16	286	260.39	26	28	103	147	71	17.4
	17	302	276.46	26	28	103	147	71	18.9
	18	319	292.55	26	28	103	147	71	20.6
	19	335	308.64	26	28	103	147	71	22.3
	20	351	324.74	26	28	103	147	71	24.2
	21	368	340.84	26	28	103	147	71	26.1
	22	384	356.96	26	28	118	167	80	30.2
	24	416	389.19	26	28	118	167	80	34.4
	25	433	405.32	26	28	118	167	80	36.6
	26	449	421.45	26	28	118	167	80	38.9
	30	514	485.99	26	28	118	167	100	52.3
	35	595	566.71	26	28	118	167	100	66.9

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Japanese Kana Nk Standard Nk160b Sprockets B Type

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: Japanese Kana Nk Standard Nk160b Sprockets B Type, Sprocket, Chain Sprocket
