| Description |

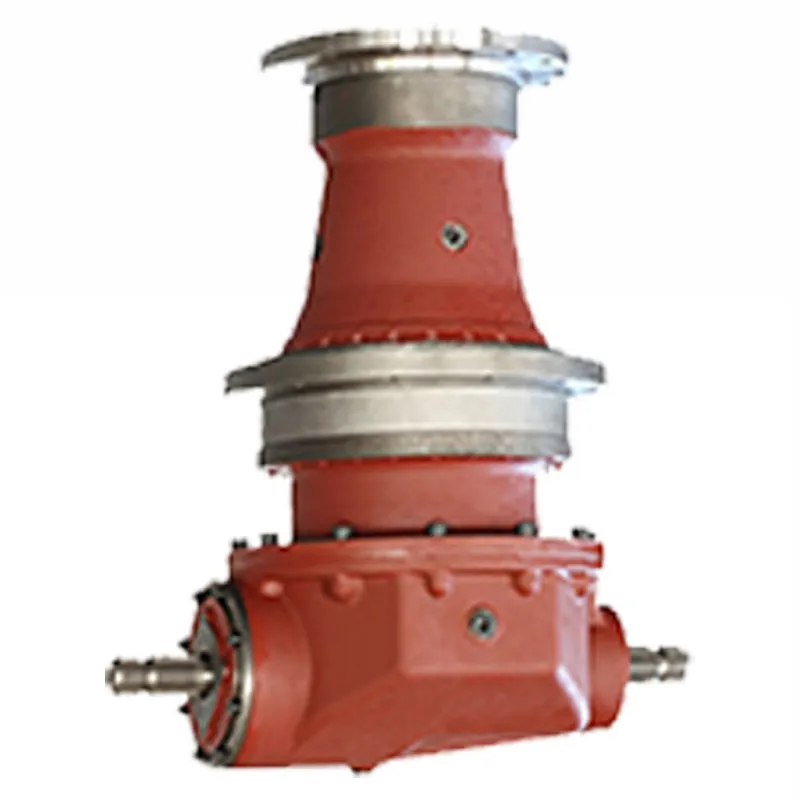

Feed Mixer Machines Gearboxes - Replacement of Code PGA-1602
|
|
|---|---|---|
| Specifications |
Has a special bearing complete where the screw spindle can be directly connected.
|
|
| Benefits |
No separate bearing complete required for the winch
|
|
| Application |
|
|
| Consists of |
|
|
| Model |
PGA 1602
|
|
| Max. output rotation speed |
29 r/min
|
|
| Max. output torque |
15700 nm
|
|
| Max. output torque |
1570 daNm
|
|
| Contains oil |
No
|
|
| Oil SAE viscosity grade |
90EP
|
|
| Weight |
265 kg
|
|
| Gear ratio |
16.1:1
|
|
| Input power KW / HP Reducing |
88.7 kW/HP
|
|
| Ratio Reducing |
16,2:1
|
|
| Shaft type |
2 x 1.3/4 (Z20)
|
Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
Our Equipments
PTO Shaft
Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
