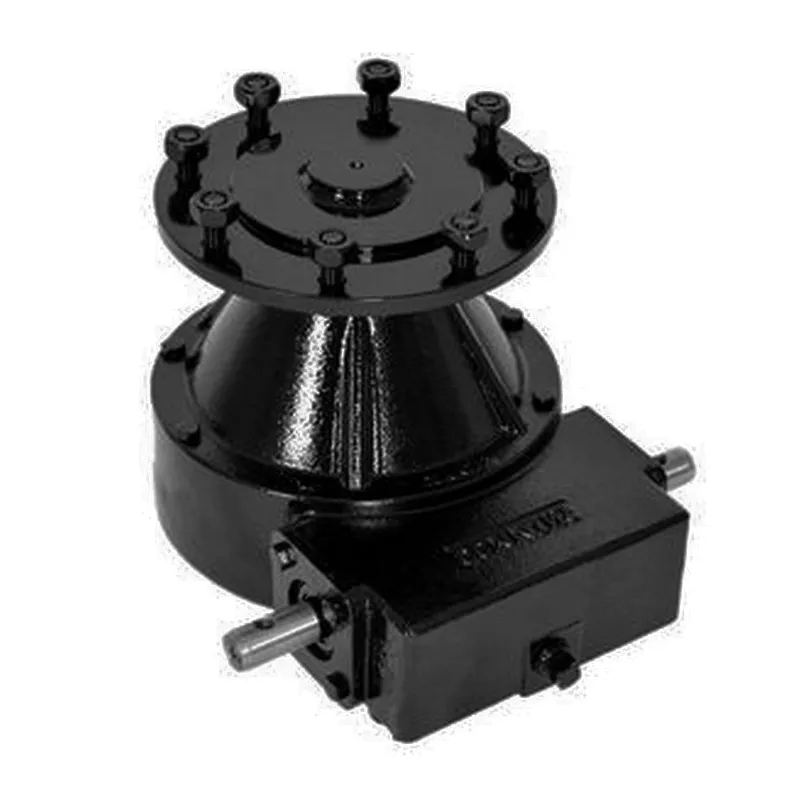

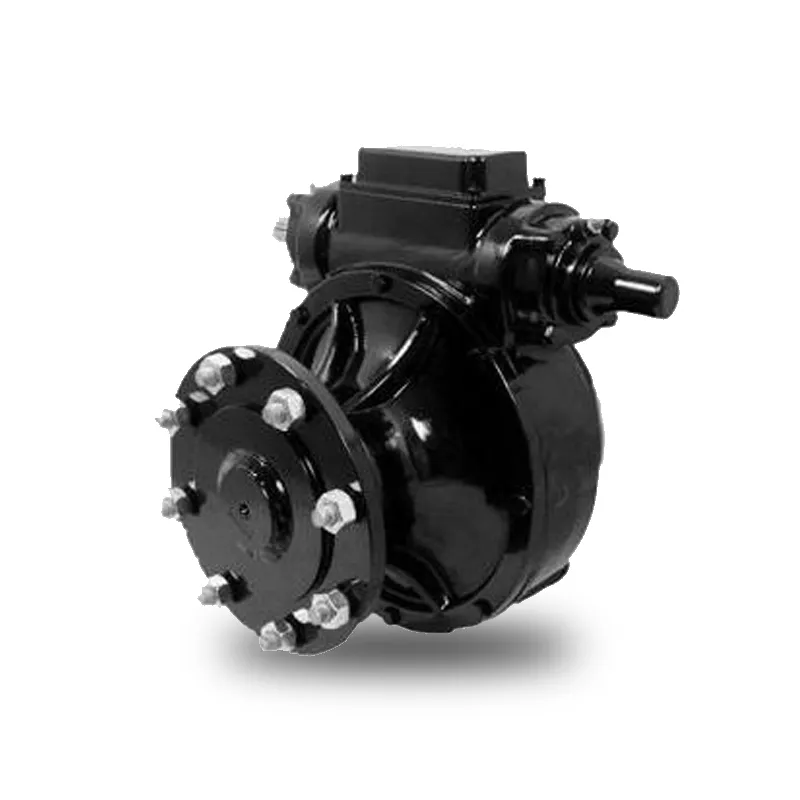

Input and output bearings: American made and case hardened; Industrys highest load rating for longer life Gearbox housing: More material in high-stress areas to handle extreme operating conditionsBronze bull gear option: Provides additional load capabilities with hardened steel worm for extreme oper......
Input and output bearings: American made and case hardened; Industrys highest load rating for longer life
Gearbox housing: More material in high-stress areas to handle extreme operating conditions Bronze bull gear option: Provides additional load capabilities with hardened steel worm for extreme operating conditions or extended life under less severe conditions
Large-capacity rubber diaphragm: Expands with heat and pressure to minimize water condensation. Input and output bearings: American made and case hardened to provide the highest quality and highest load rating available in the industry. Worm gear: High-strength ductile iron provides significantly longer wear life than steel when combined with a cast iron bull gear. Tooth design: Industry exclusive 25° tooth angle provides 40% longer life and better reliability in tough conditions compared to normal 14 1/2° tooth designs. Largest bull gear neck and keyway: For strength in critical load-bearing area. Expansion chamber: Cap made of corrosion-resistant cast aluminum; rubber diaphragm allows oil to expand and contract during operation. Vented cap prevents pressure buildup and prevents seals from leaking. Threaded endcap: Allows accurate bearing preload to increase bearing life. 50:1 gear ratio: Fully recessed tooth design keeps oil between engaged gears. Bull gear: High-strength cast iron provides the highest load capacity and longest life in the industry. Optional bronze gear is available for extreme conditions. Multi-viscosity gearbox oil: Exceeds 85w140 GL5 oil for long gear wear under extreme load conditions.
