No.
|

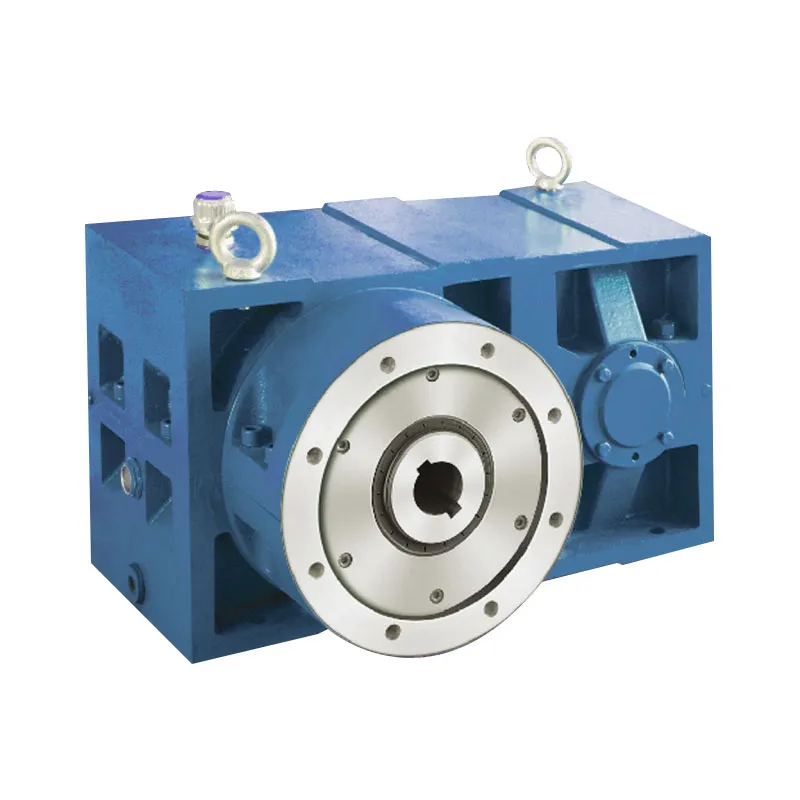

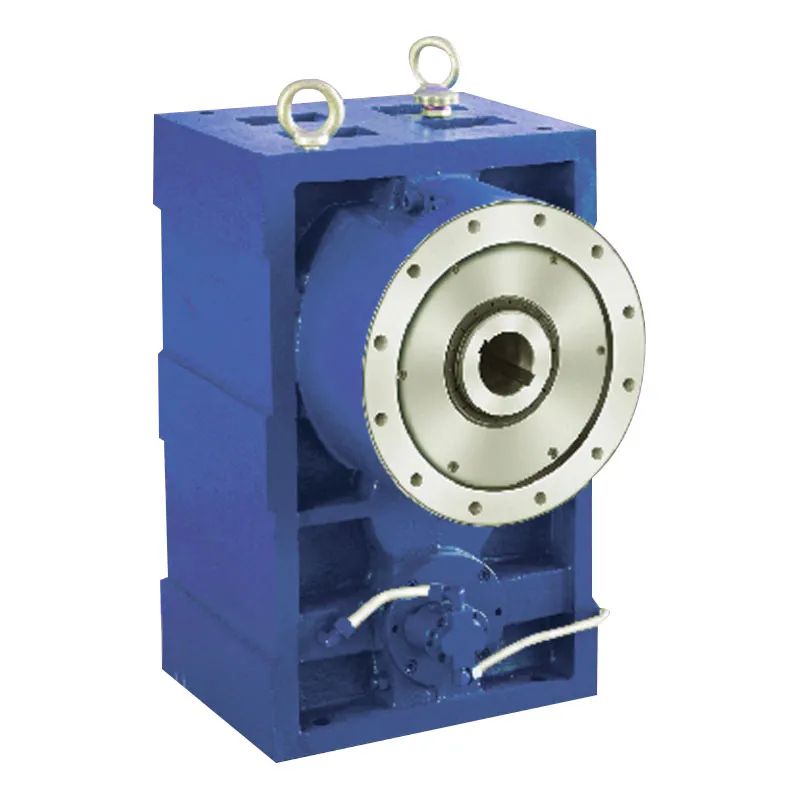

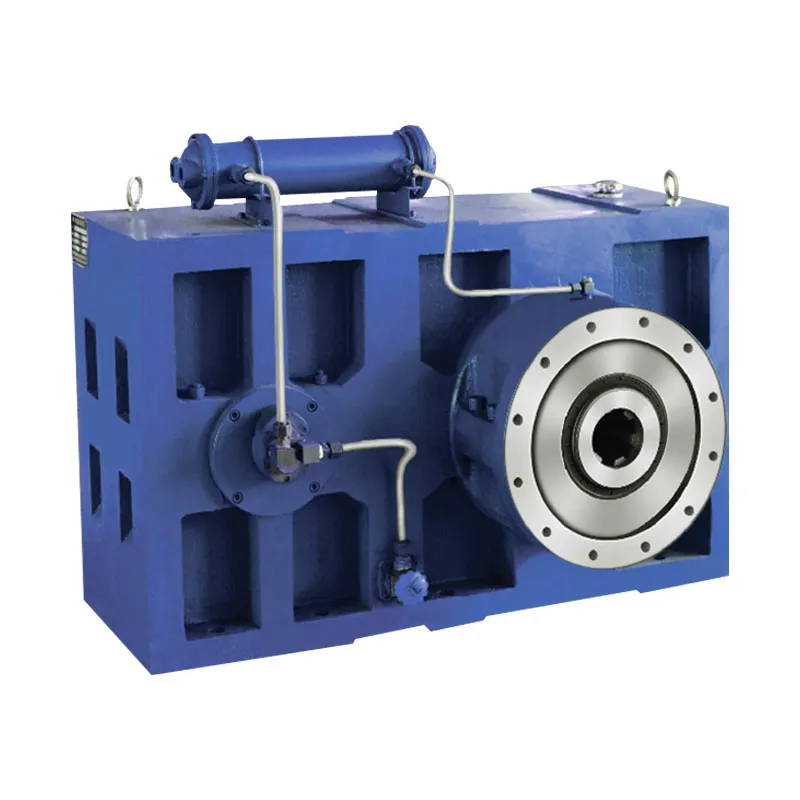

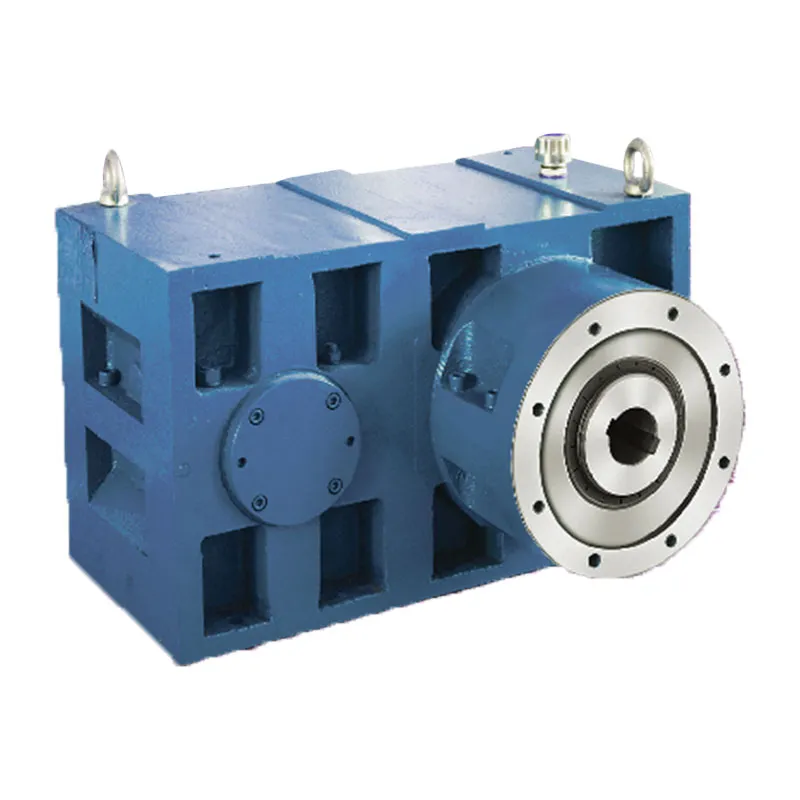

gearbox model
|
Ratio range
|
recommend screw diameter/mm
|
recommend power/HP
|
rating load torque/N.m
|

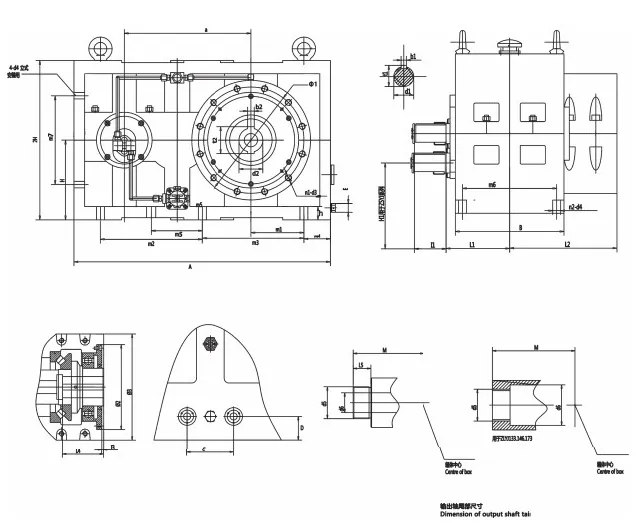

size(L*W*H)/mm
|
Net weight/KG
|
|
1
|
ZLYJ133
|
8/12.5/16/20
|
35/45/50
|
6~15
|
764
|
478*170*260
|
144
|
|
2
|
ZLYJ146
|
10/12.5/16/20
|
45/55
|
10~20
|
1165
|
560*250*320
|
205
|
|
3
|
ZLYJ173
|
10/16/20
|
55/65
|
15~30
|
1962
|
576*256*340
|
256
|
|
4
|
ZLYJ180
|
|
65
|
15~40
|
2764
|
650*256*400
|
350
|
|
5
|
ZLYJ200
|
12.5/16/20
|
65/75
|
30~60
|
3583
|
750*340*480
|
350
|
|
6
|
ZLYJ225
|
12.5/16/20
|
90
|
40~75
|
5334
|
800*360*500
|
650
|
|
7
|
ZLYJ250
|
16/12.5/20
|
100
|
50~100
|
6306
|
930*380*560
|
815
|
|
8
|
ZLYJ280
|
16/12.5/20
|
105/110
|
75~122
|
7643
|
970*410*600
|
1020
|
|
9
|
ZLYJ315
|
16/12.5/20
|
120
|
100~175
|
11822
|
1160*450*700
|
1410
|
|
10
|
ZLYJ330
|
16/12.5/20
|
150/160
|
150~217
|
21000
|
1160*450*700
|
1520
|
|
11
|
ZLYJ375
|
16/12.5/20
|
150/160
|
217~312
|
21096
|
1280*466*800
|
1800
|
|
12
|
ZLYJ420
|
16/12.5/20
|
150/165
|
272~428
|
25478
|
1420*550*920
|
1800
|
|
13
|
ZLYJ450
|
16/12.5/20
|
165
|
380~544
|
33885
|
1550*1200*1000
|
3560
|
With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.
Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and efficiently.

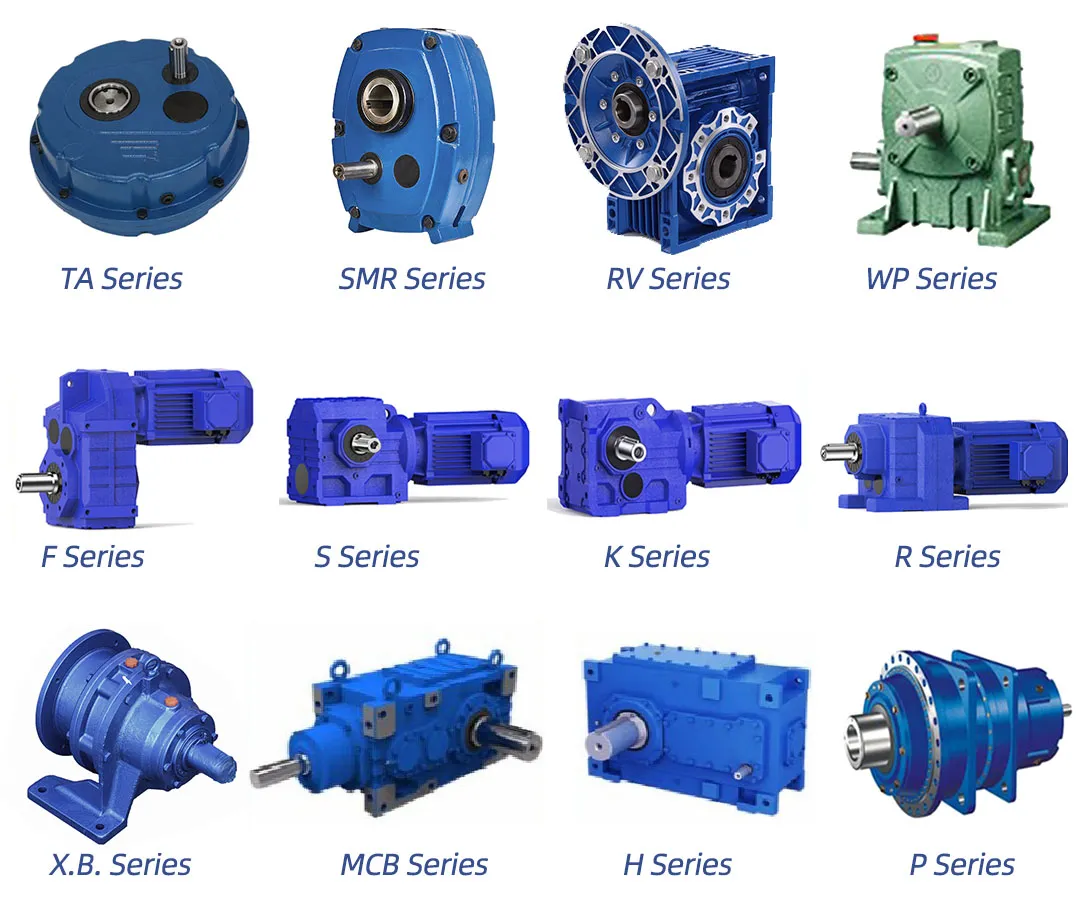

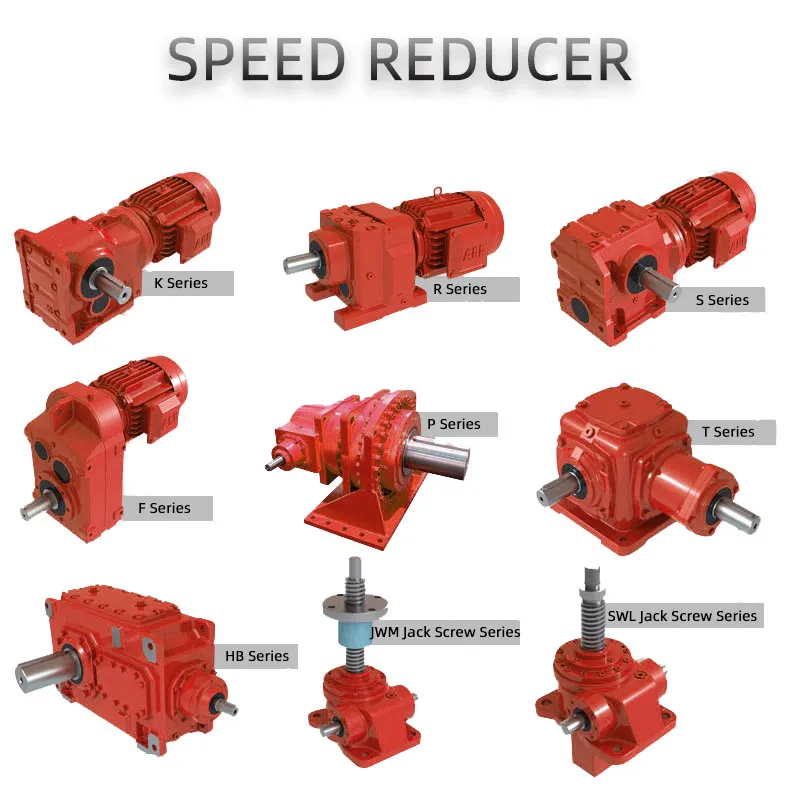

We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.
These features enable a reliable and safe service life of over 200 000 operational hours.
Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
 |
 |
 |
 |
