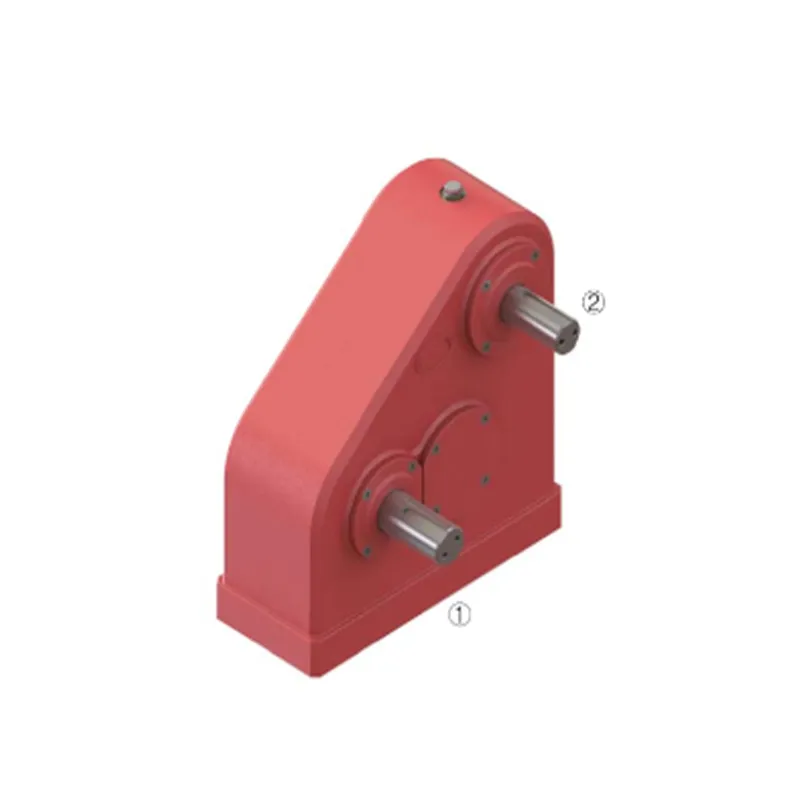

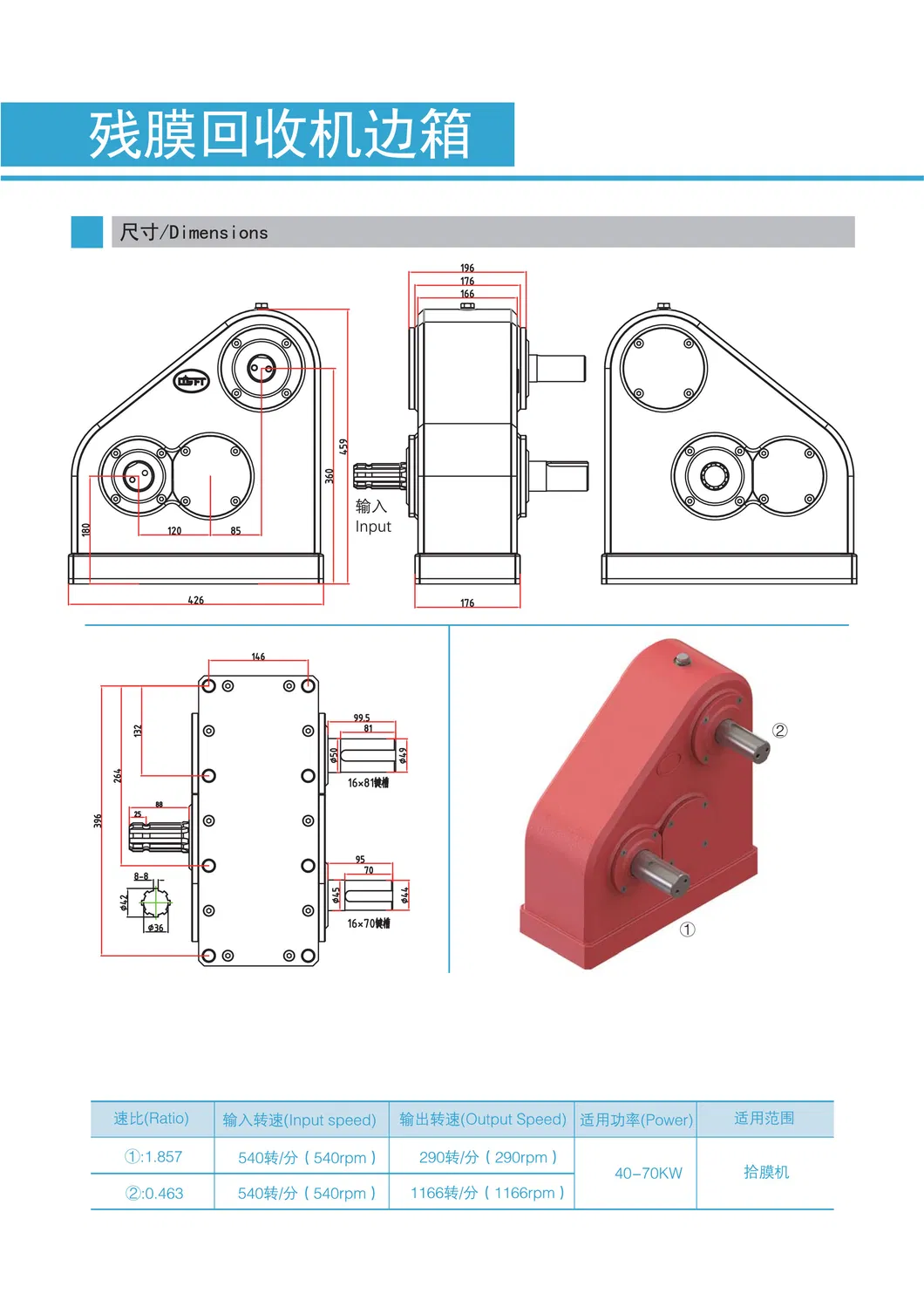

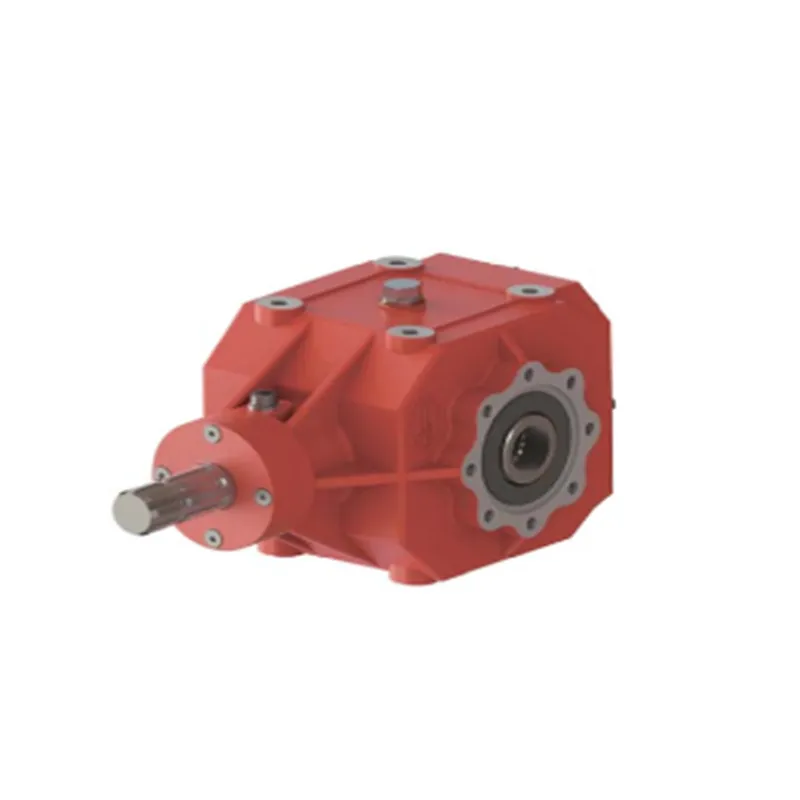

Residual Film Recovery Machine Gearbox

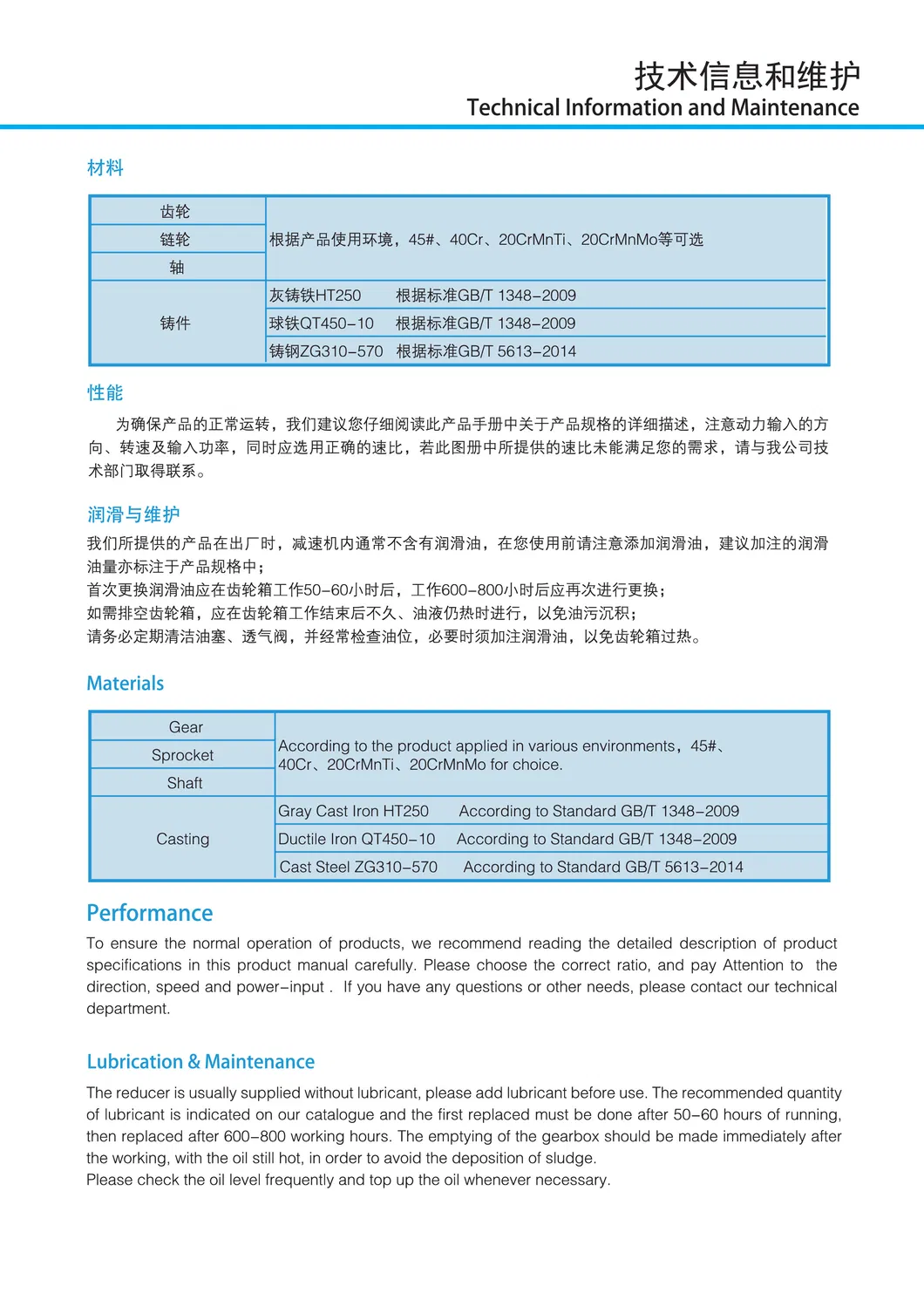

GEAR MATERIALS
20CrMnTi/20CrMnMo for your choice

CASTINGS MATERIALS
Gray cast iron HT250 according to standard GB/T 1348-2009
Ductile iron QT450-10 according to standard GB/T 1348-2009
Cast steel ZG310-570 according to standard GB/T 5613-2014

SHAFTS MATERIALS
40Cr,45#,20CrMnTi,20CrMnMo for your choice according to your request.

POWER
To ensure the correct use of the product we recommand to pay attention to the specifications mentioned on our technical
sheet.Consider also the input rotation speed,the power input and the transmission ratios.Where the rotation or other working
conditions are different,please contact LongQuan technical department.

LUBRICATION
The reducer is usually supplied without lubricant.The recommended quantity of lubricant is indicated on our catalogue and the
first replaced must be done after 50-60 hours of running,then replaced after 600-800 working hours.
The emptying of the gearbox should be made immediately after the working,with the oil still hot,in order to avoid the deposition
of sludge.Check frequently the oil level and top up the oil whenever necessary.
