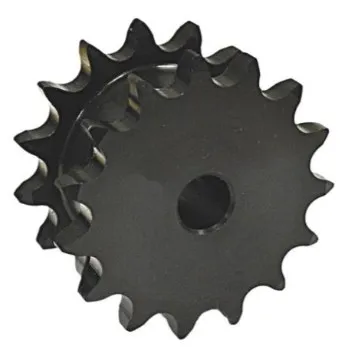

Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.
Below is a chart of all of the standard C2050 double pitch roller chain sprockets. We also stock a full line of high quality C2050 roller chain.
Stock C2050 Roller Chain Sprockets
| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
|
2050A24
|
24 | 5.120" | 23/32" | -- | -- | 1.58 LBS |
|
2050A25
|
25 | 5.320" | 23/32" | -- | -- | 1.68 LBS |
|
2050A26
|
26 | 5.223" | 23/32" | -- | -- | 1.88 LBS |
|
2050A28
|
28 | 5.920" | 23/32" | -- | -- | 2.22 LBS |
|
2050A30
|
30 | 6.320" | 23/32" | -- | -- | 2.54 LBS |
|
2050B11
|
11 | 2.500" | 5/8" | 13/16" | 1" | 0.62 LBS |
|
2050B12
|
12 | 2.710" | 5/8" | 1" | 1" | 0.80 LBS |
|
2050B13
|
13 | 2.910" | 5/8" | 1-7/32" | 1" | 0.82 LBS |
|
2050B14
|
14 | 3.110" | 5/8" | 1-9/32" | 1" | 1.00 LBS |
|
2050B15
|
15 | 3.320" | 5/8" | 1-13/32" | 1" | 1.22 LBS |
|
2050B16
|
16 | 3.520" | 5/8" | 1-13/32" | 1" | 1.44 LBS |
|
2050B17
|
17 | 3.720" | 5/8" | 1-3/4" | 1" | 1.68 LBS |
|
2050B18
|
18 | 3.920" | 5/8" | 1-25/32" | 1" | 1.94 LBS |
|
2050B19
|
19 | 4.120" | 5/8" | 1-31/32" | 1" | 2.24 LBS |
|
2050B20
|
20 | 4.320" | 3/4" | 2" | 1" | 2.30 LBS |
|
2050B21
|
21 | 4.520" | 3/4" | 2" | 1" | 2.40 LBS |
|
2050B22
|
22 | 4.720" | 3/4" | 2" | 1" | 2.54 LBS |
|
2050B23
|
23 | 4.920" | 3/4" | 2" | 1" | 2.66 LBS |
|
2050B24
|
24 | 5.120" | 3/4" | 2" | 1-1/4" | 3.30 LBS |
|
2050B25
|
25 | 5.320" | 3/4" | 2" | 1-1/4" | 3.42 LBS |
|
2050B26
|
26 | 5.520" | 3/4" | 2" | 1-1/4" | 3.62 LBS |
|
2050B28
|
28 | 5.920" | 3/4" | 2" | 1-1/4" | 3.78 LBS |
|
2050B30
|
30 | 6.320" | 3/4" | 2-1/4" | 1-1/4" | 4.58 LBS |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
