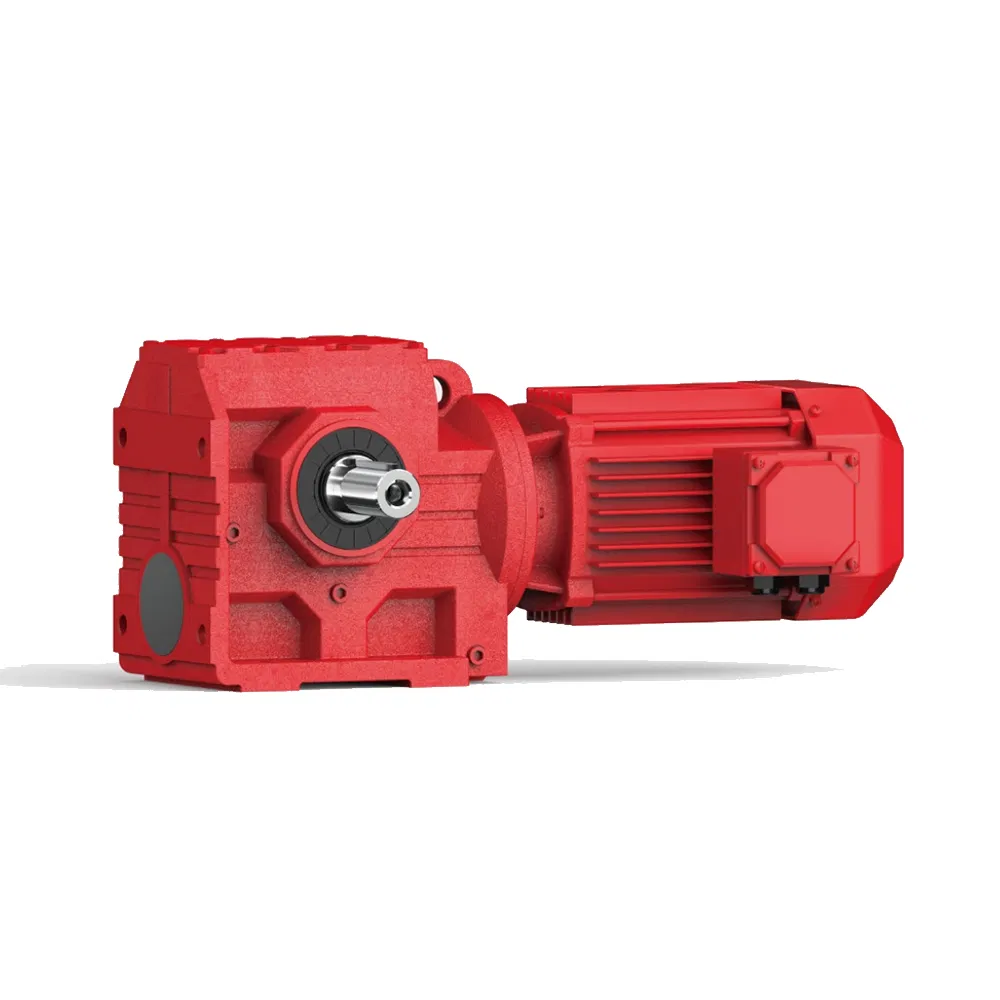

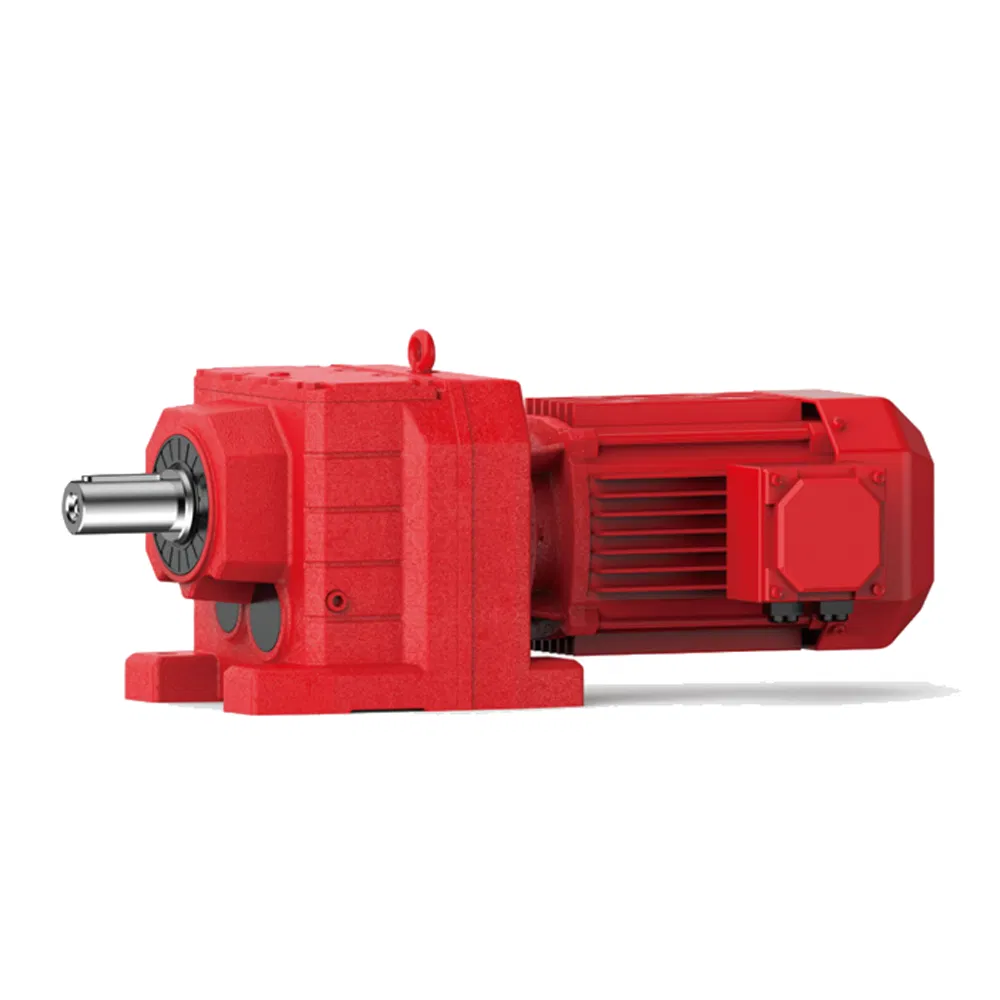

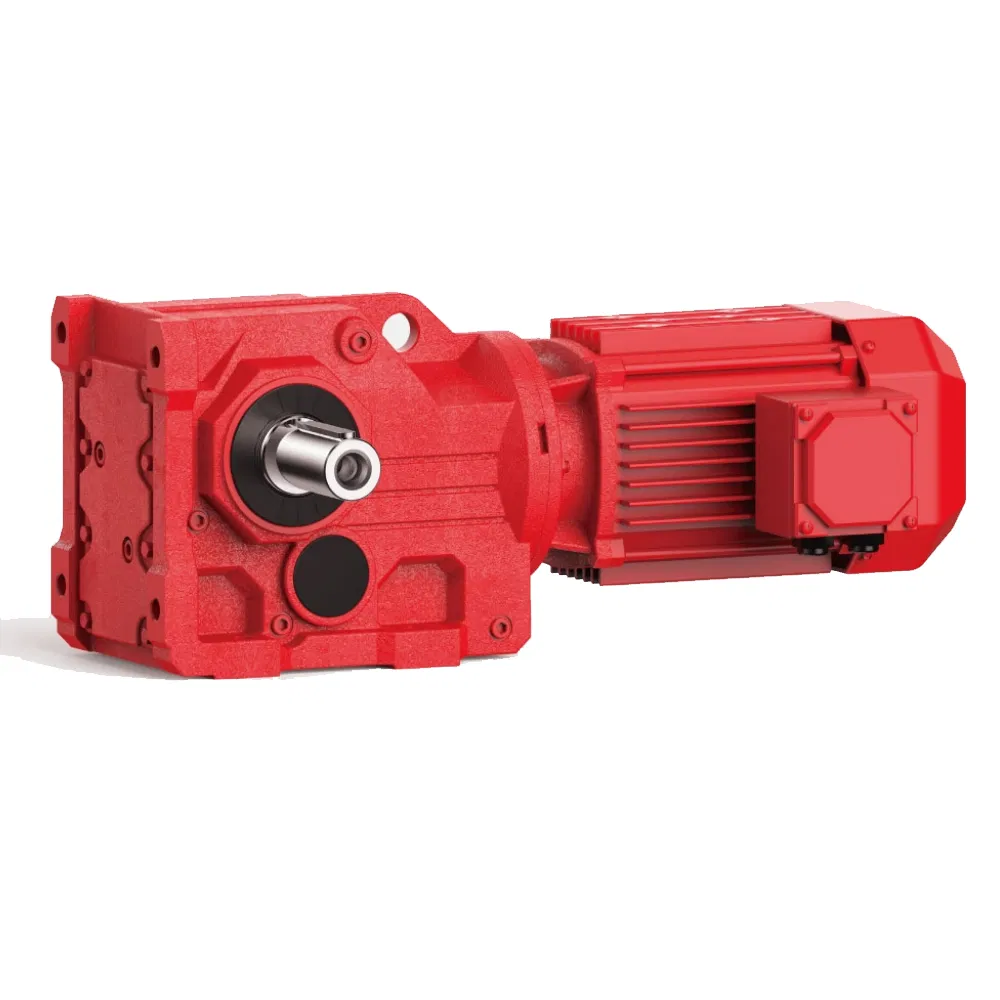

SKF Bevel Gear Reducer Motor R87 Helical Gear Box

Raydafon Group presents the SKF Bevel Gear Reducer Motor R87 Helical Gear Box, a high-performance solution for industrial applications. With superior durability, precision engineering, and smooth operation, it's ideal for engineers seeking reliability and efficiency. Experience reduced downtime and enhanced productivity—perfect for manufacturing and automation sectors.

Send Inquiry

Product Description

Hard Tooth Surface Flange Mounted S K F R 0.12kw-25kw R Bevel Gear Reducer Motor R87 Helical Gear Box for AC Motor

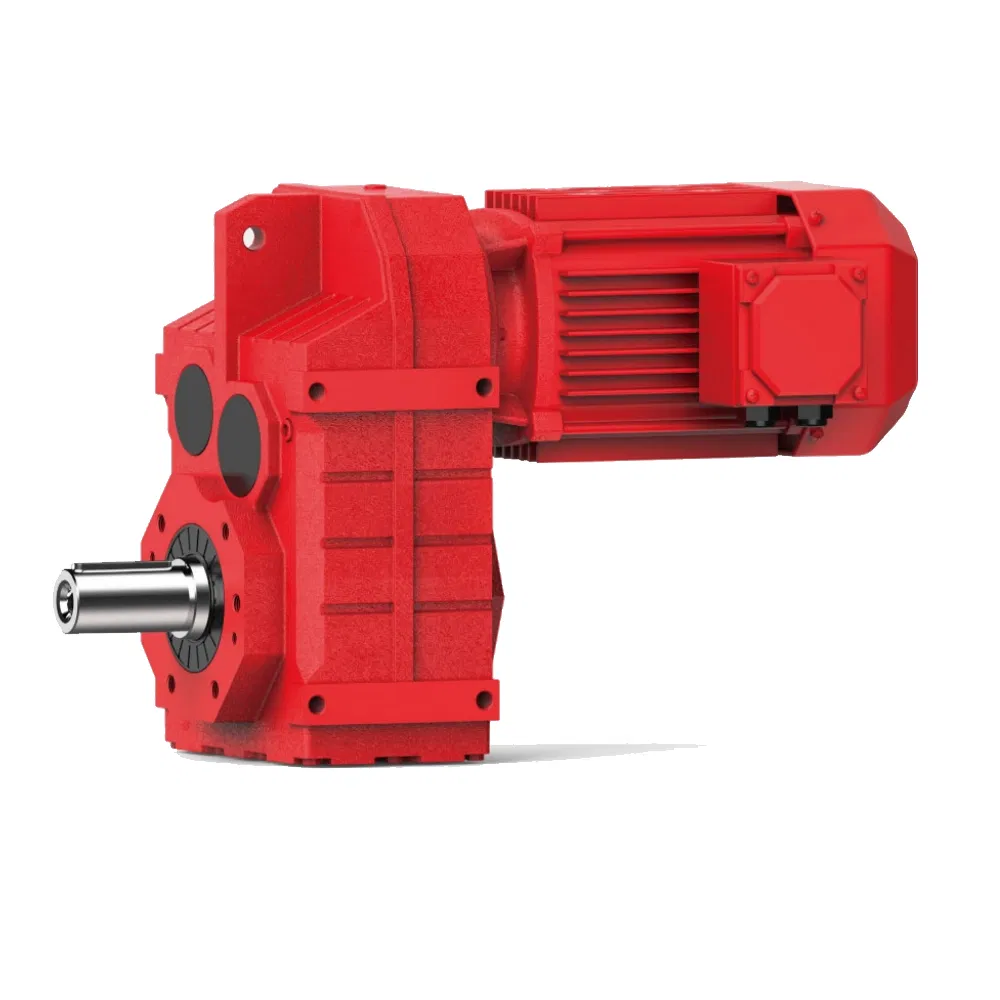

F series differential gearbox is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stageshelical
gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the
process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise
and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,
Chemical Industry , Pharmacy ,Agriculture equipment and Oil industry

1) Output speed: 0.6~1,028r/min

2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW

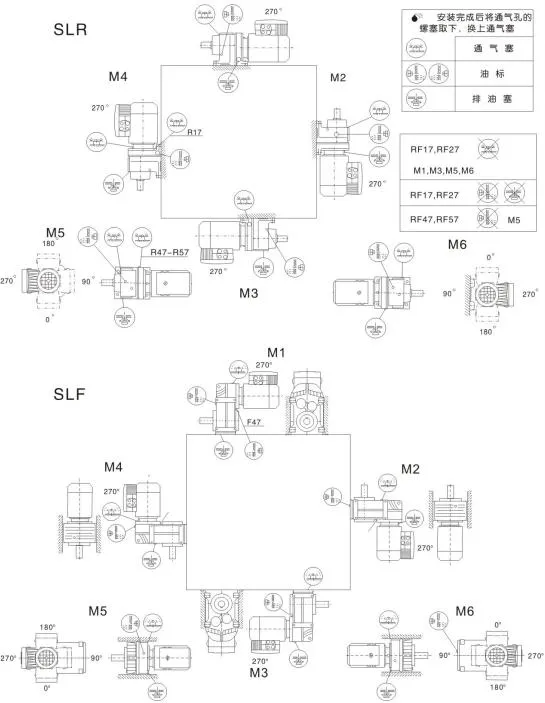

4) Mounted form: foot-mounted and flange-mounted mounting

Gear Material	20CrMnTi
Case Material	HT250
Shaft Material	20CrMnTi
Gear Processing	Grinding finish by HOFLER Grinding Machines
Color	Customized
Noise Test	65~70dB
Efficiency	94%~98% (depends on the transmission stage)
Lubricating oil	Shell Omala synthetic oil or mineral oil , or similar brand
Heat treatment	tempering, cementiting, quenching,etc.
Brand of bearings	C&U bearing, ZWZ,LYC, HRB,NSK and so on
Brand of oil seal	NAK or other brand
Temp. rise (MAX)	40 °
Temp. rise (Oil)(MAX)	50 °
Vibration	≤20µm
