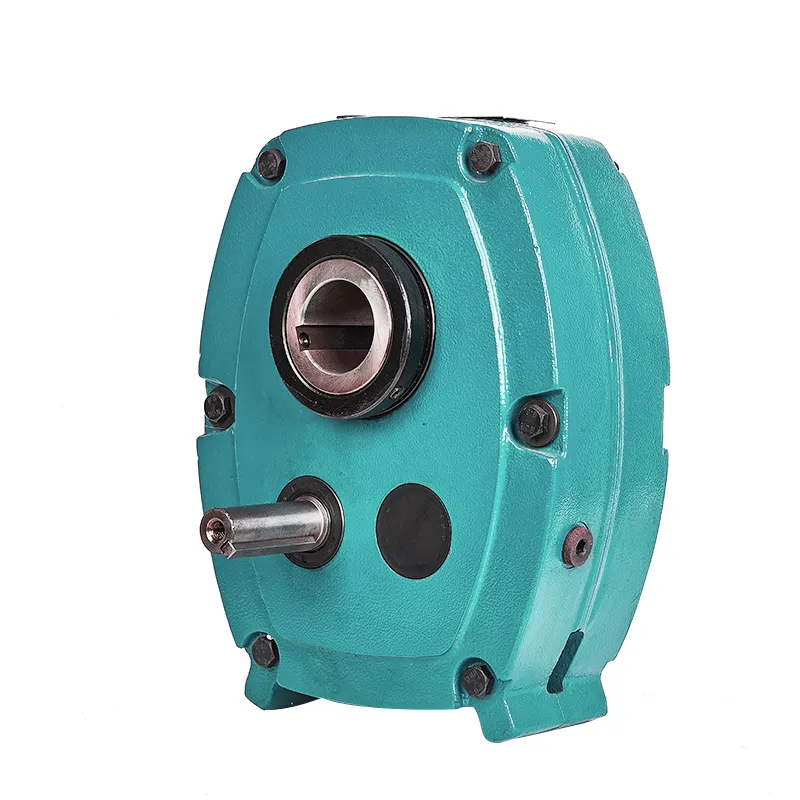

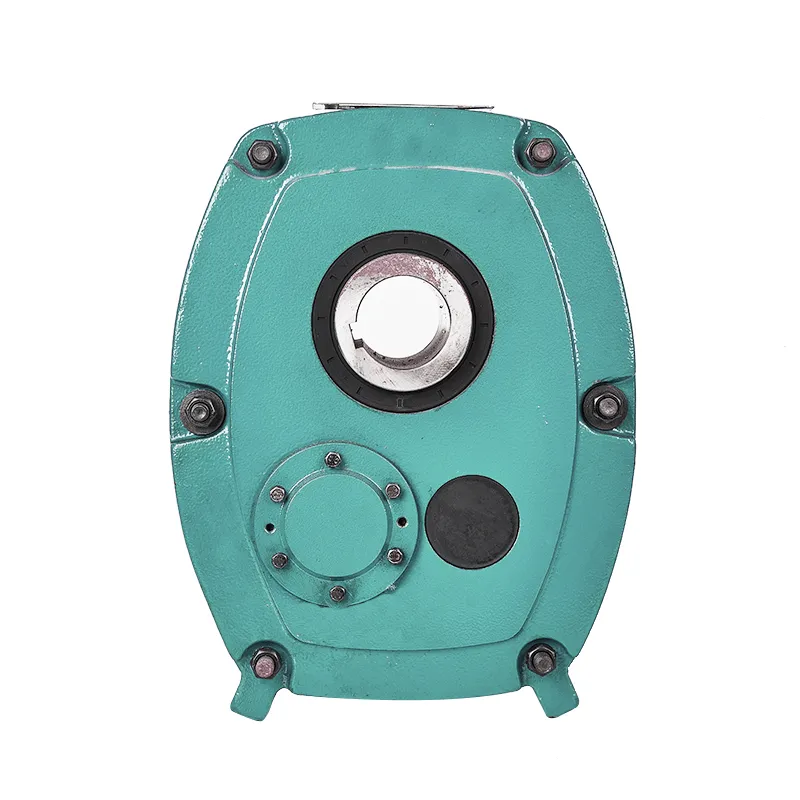

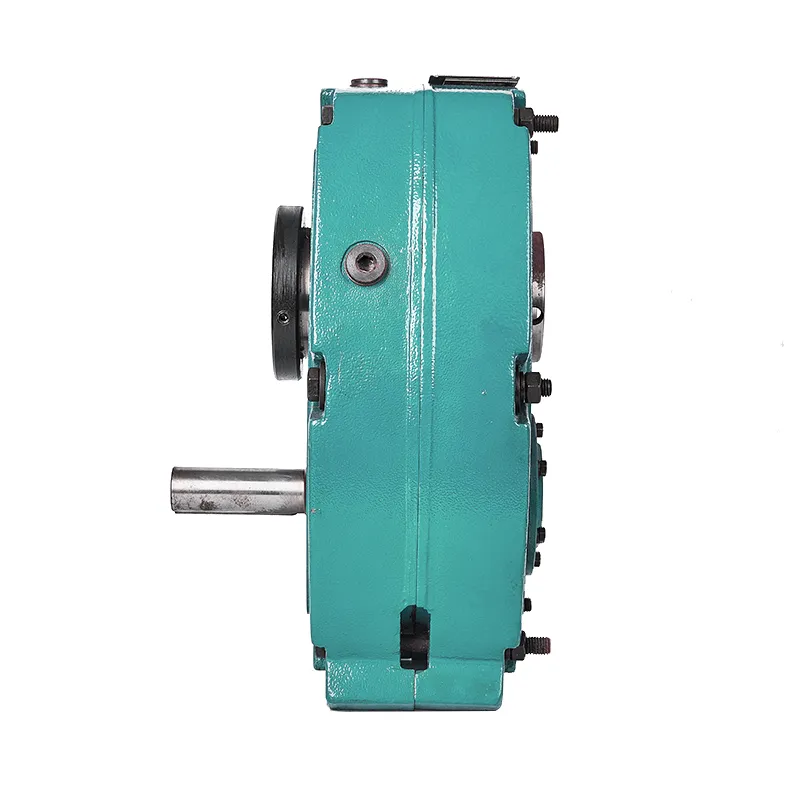

SMR Series Helical Gear Reducer

High Torque Smr Series Helical Gear Reducer Keyed Hollow Shaft Mounted Output Reduction Gearboxes for Mining Quarry ApplicationComponents:1. Housing: High-strength Gray Cast Iron Gearboxes2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding3. Shafts: High-strength Hardening Alloy Steel......

Send Inquiry

Product Description

High Torque Smr Series Helical Gear Reducer Keyed Hollow Shaft Mounted Output Reduction Gearboxes for Mining Quarry Application

Components:
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations: Keyed Solid Shaft Input
5. Output Configurations: Keyed Hollow Shaft Output
6. Oil Seal: Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional Backstop

Models:
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system

Applications:
Conveyors in Mine, Quarry, Gravel Transport, Baggage & Bulk Handling, Animal Feeding, etc.

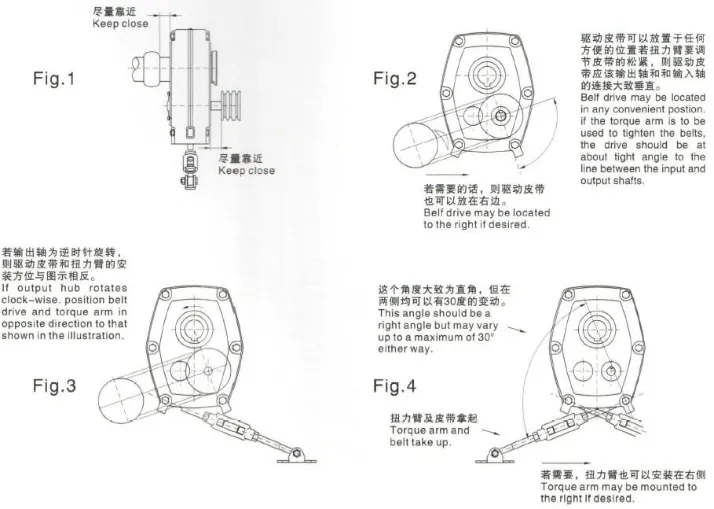

Installation:

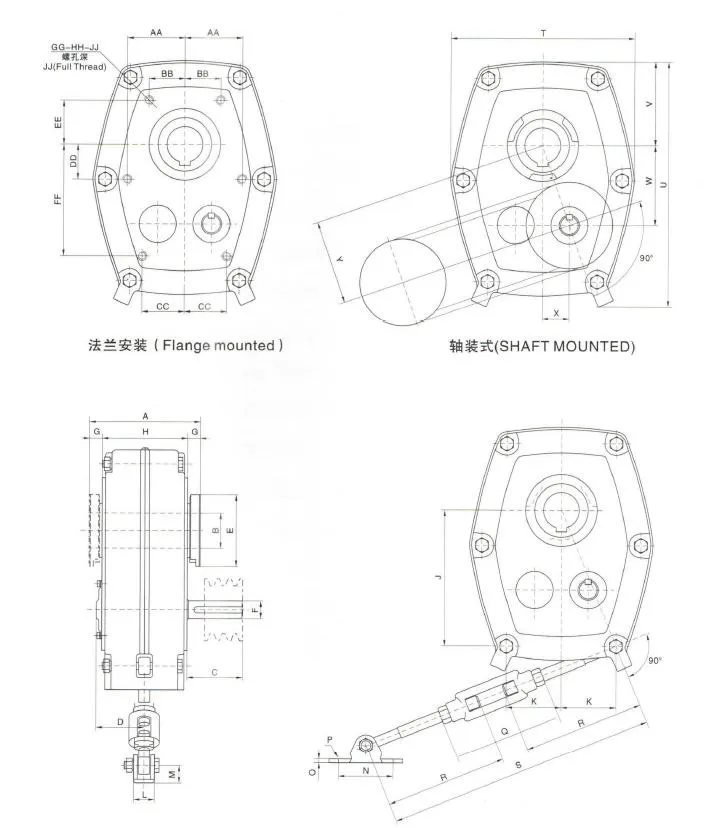

1. Hanging Shaft Mounted
2. Output Flange MountedLubrication:
Oil-bath and Splash

Lubrication
Lubricating Oil: Mineral Oil and Synthetic Oil
Extreme pressure oil is not recommended, unless in case of with backstop

Cooling:
Natural Cooling

High Torque Smr Series Helical Gear Reducer Keyed Hollow Shaft Mounted Output Reduction Gearboxes for Mining Quarry Application

Models	Output Shaft Bore		Max. Torque*	Nominal Ratio
Models	Standard	Optional	Max. Torque*	Nominal Ratio
SMR-B	30mm	40mm	277N.m	5 13 20
SMR-C	40mm	50mm	468N.m
SMR-D	50mm	55mm	783N.m
SMR-E	55mm	65mm	1194N.m
SMR-F	65mm	75mm	1881N.m
SMR-G	75mm	85mm	2970N.m
SMR-H	85mm	100mm	4680N.m
SMR-J	100mm	120mm	7449N.m
