New Holland Combine harvester : 8050 8060 8070 8080 CS520 CS540 CS6050 CS6060 CS6070 CS6080 CS6090 CS640 CS660 CSX7060 CSX7080 TF42 TF44 TF46 TF74 TF78 TX30 TX32 TX34 TX36 TX66

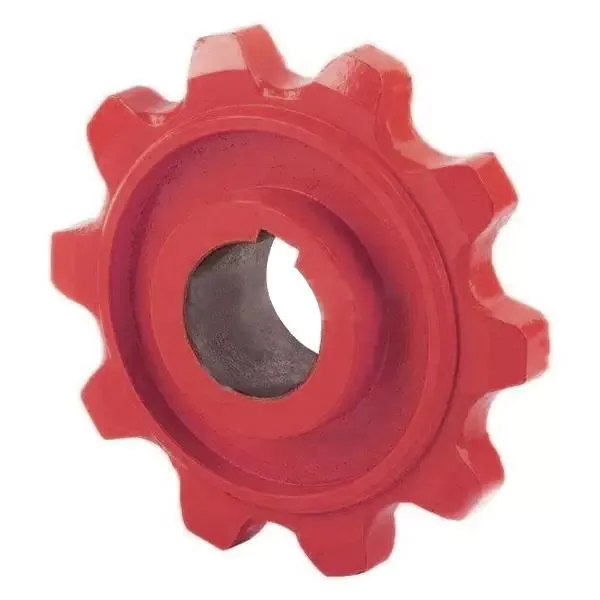

Spare parts for new Dutch combine grain and return lift.
Start the grain elevator to load the grain into the bin, or start the return elevator to return the grain for additional threshing.
This spare part is used to replace worn or damaged parts during maintenance.
Made of steel. In order to connect it to the shaft in the center hole, the key has a groove.
The component is heat-treated to enhance its strength and wear resistance. The outer surface is painted.
| Weight, W | kg | 1.69 |
|---|---|---|
| Inner diameter, d | mm | 45 |
| Outer diameter, D | mm | 62 |
| Number of teeth, Z | 10 | |
| Height, H | mm | 41 |
| Outside diameter, D1 | mm | 145 |
| Key slot | mm | 41x12x3 |
| Height, H2 | mm | 18 |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
