Product Description

Planetary Reduction Gearboxes

The EP400 series planetary track drives by Ever-Power Group Co.,Ltd. enjoy following features:

Output torque Range: 1000 … 220000 N.m
Gear Ratios: i=5.3 … 365
Support: rotating housing flange to fit tracks
Applicable motors: axial piston hydraulic motors, Hydraulic orbit motors
Hydraulic motor options: Pressure relief valve, Overcenter valve on request
Brake: hydraulic released parking brake on request

Track drives	Max. torque	Range of ratios	Max. Input speed	Braking torque
Type	N.m	( i )	(rpm)	(N.m)
EP400 L1	1300	6.09	1000	120-250
EP401 L1	2800	6.09	1000	250-350
EP402 L2	5000	12.4-25.8	3000	--
EP403 L2	6000	15.4-40	3000	220-310
EP405 L2	10000	20-53	3000	220-310
EP406 L2,L3	17000	26-140	3000	220-450
EP406A L3	24000	90-140	3000	300
EP407 L3	36000	66-140	3000	550
EP410 L3	50000	67-150	3000	800
EP413 L3	60000	94-170	3000	750
EP414 L3	80000	76-186	3000	1025
EP415 L3	110000	95-215	3000	1100
EP416 L3	160000	160-250	3000	1100
EP417 L3	220000	95-365	3000	1400

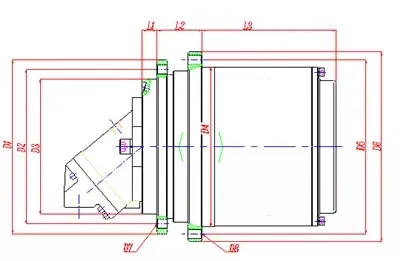

Track drives	Dimensions
Track drives	D1	D2	D3	D4	D5	D6	D7	D8	L1	L2	L3
EP400 L1	195	175	155	160	180	200	M10*1.5 n=8	M10*1.5 n=8	21	40	104
EP401 L1	230	200	180	190	210	230	M10*1.5 n=8	M10*1.5 n=8	21	40	130
EP402 L2	190.5	165.1	133.3	200	241.3	279.4	5/8"-11 UNC n=8	1/2"-13 UNC n=9	10.2	105.9	145
EP403 L2	260	230	190	200	240	280	M16 *2 n=8	M20*1.5 n=8	34	72	160
EP405 L2	260	230	190	220	260	290	M16*2 n=12	M16*2 n=16	18	72	166
EP406 L2,L3	320	290	250	280	305	330	M20*2.5 n=16	M16*2 n=16	30	82	230
EP406A L3	320	290	250	280	305	330	M20*2.5 n=16	M16 *2 n=16	30	82	240
EP407 L3	350	310	270	320	350	380	M20*2.5 n=16	M16*1.5 n=16	30	90	269
EP410 L3	350	310	270	350	400	430	M20*1.5 n=20	M20*1.5 n=16	40	82	313
EP413 L3	410	370	330	370	410	450	M20*1.5 n=20	M20 *2.5 n=20	25	114	318
EP414 L3	480	430	380	430	480	520	M24*3 n=20	M24*3 n=20	22	148	338
EP415 L3	500	460	420	460	500	540	M24*3 n=24	M18* 1.5 n=36	22	165	361
EP416 L3	560	510	450	535	600	650	M24 *2 n=30	M24*2 n=30	30	168	380
EP417 L3	650	600	460	610	680	735	M24*2 n=30	M24 *2 n=30	45	170	400

Related Products

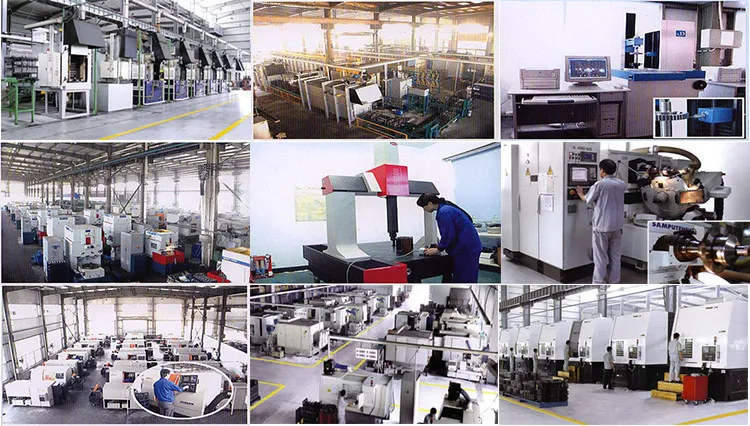

Our Company

Ever-power Group specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vacuum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
We provides a reliable grantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system.
In recent years, the company has been developing rapidly by its rich experience in production, advanced management system, standardized management system, strong technical force. We always adhere the concept of survival by quality, and development by innovation in science and technology.
Our Group is willing to work with you hand in hand and create brilliance together!

Material available
Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment
Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment
High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

Certifications

FAQ:

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.

Packing & Delivery

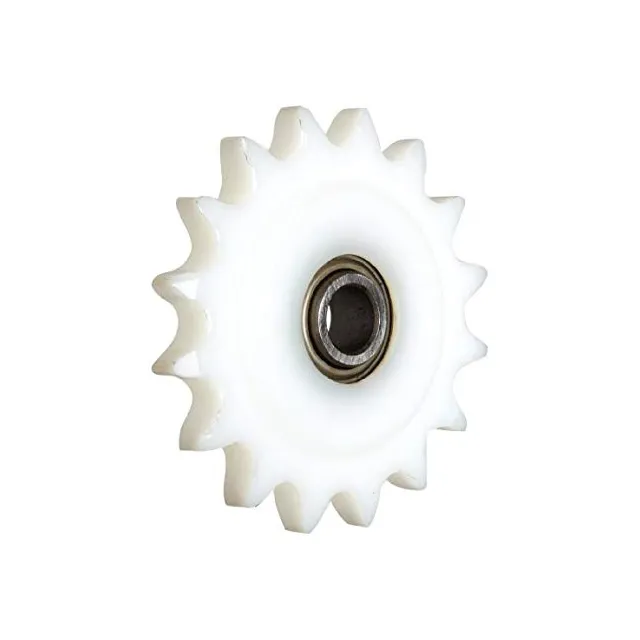

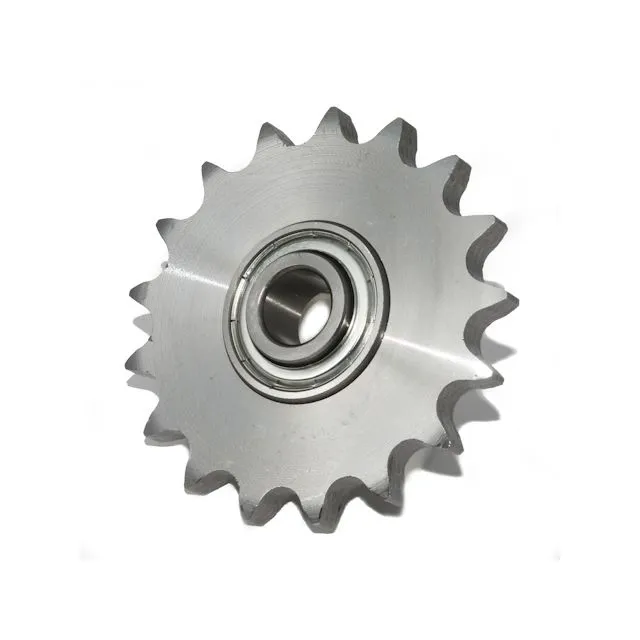

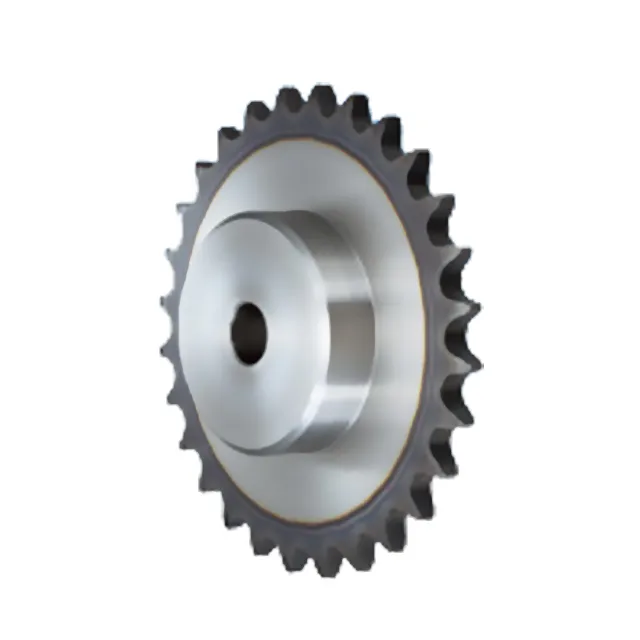

Chain Sprocket
