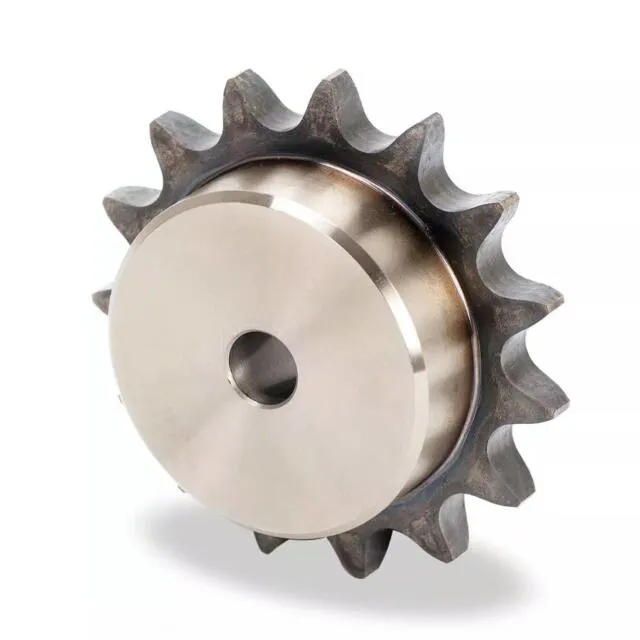

Standard NK100B Sprockets B Type

Product DescriptionSprockets No.Outside dia.DoPitch dia.DpBore DiaHubWeight(kg)TypeTeeth No.StockminmaxBDBLNK100B910692.84202240*70501.610117102.7420224565501.9011127112.7020225175502.3012138122.6720225786502.9013148132.6720226394503.1014158142.6820226698503.6015168152.7120226698504.2016179162.74202......

Send Inquiry

Product Description

Sprockets No.		Outside dia. Do	Pitch dia. Dp	Bore Dia			Hub		Weight (kg)
Type	Teeth No.	Outside dia. Do	Pitch dia. Dp	Stock	min	max	BD	BL	Weight (kg)
NK100B	9	106	92.84	20	22	40	^*70	50	1.6
	10	117	102.74	20	22	45	65	50	1.90
	11	127	112.70	20	22	51	75	50	2.30
	12	138	122.67	20	22	57	86	50	2.90
	13	148	132.67	20	22	63	94	50	3.10
	14	158	142.68	20	22	66	98	50	3.60
	15	168	152.71	20	22	66	98	50	4.20
	16	179	162.74	20	22	66	98	50	4.60
	17	189	172.79	20	22	75	107	50	5.30
	18	199	182.84	20	22	75	107	50	5.70
	19	209	192.90	20	22	75	107	50	6.10
	20	220	202.96	20	22	75	107	50	6.50
	21	230	213.03	20	22	75	107	50	7.00
	22	240	223.10	20	22	80	117	56	7.90
	23	250	233.17	20	22	80	117	56	8.50
	24	260	243.25	20	22	80	117	56	8.80
	25	270	253.32	20	22	80	117	56	9.30
	26	281	263.40	20	22	80	117	56	9.80
	27	291	273.49	20	22	80	117	56	10.30
	28	301	283.57	20	22	80	117	56	10.90
	29	311	293.66	20	22	80	117	56	11.50
	30	321	303.75	26	28	80	117	56	12.10
	32	341	323.92	26	28	80	117	56	14.50
	33	352	334.01	26	28	80	117	56	16.10
	34	362	344.11	26	28	80	117	56	16.60
	35	372	354.20	26	28	89	127	63	17.50
	36	382	364.29	26	28	89	127	63	18.00
	37	392	374.38	26	28	89	127	63	18.90
	38	402	384.48	26	28	89	127	63	19.50
	40	422	404.67	26	28	89	127	63	20.40
	41	433	414.77	26	28	89	127	63	21.50
	42	443	424.86	26	28	89	127	63	22.60
	45	473	455.16	26	28	89	127	63	24.70
	47	493	475.35	26	28	89	127	63	26.70
	48	503	485.45	26	28	89	127	63	27.50
	50	524	505.65	26	28	89	127	63	30.00
	54	564	546.05	26	28	103	147	80	37.40
	55	574	556.15	26	28	103	147	80	41.60
	60	625	606.66	26	28	103	147	80	44.30
	65	675	657.17	26	28	103	147	80	54.50

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Japanese Kana Nk Standard Nk100b Sprockets B Type

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.

Hot Tags: Japanese Kana Nk Standard Nk100b Sprockets B Type, Sprocket Nk100b, B Type Sprocket
