Cast sprockets are compatible with the following sizes: 75, 78, 88, H78, H79, BRH, 188, C188 conveyor chain, SS188, 78, MXS882, MSR1288, 433-1/2, H74, H75, H78A rooftop chain, H78B rooftop chain, H78SR, BRH188 conveyor chain, MW188RT, 488 pintle chain, SS578, and 81X.
Steel sprockets are compatible with the following sizes: 78, H74, 75, H75, H78LR, H75RT, H78SR, H79, 88, 188, S188, S78, R588, RR588, R778, RR778, 988, IS880, 87R, IS881, 81X, IS882, 433-1/2, LXS881, LXS886, US881, LXS887, LXS882, 488 pintle chain, XS578, SS188, C188 conveyor chain, US278R, US882, 578R, and 588R.
| Sprocket Size | Tooth Count | Style | Outside Diameter | Hub Diameter | Length Thru Bore | Stock Bore | Max Bore |
|---|---|---|---|---|---|---|---|

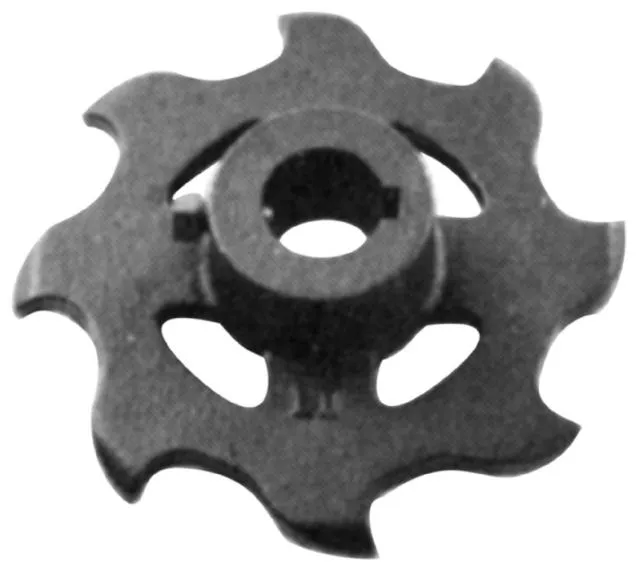

| 81X-SG510 | 10 | B | 4.484" | 2.375" | 2" | 1" | 1.5" |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
