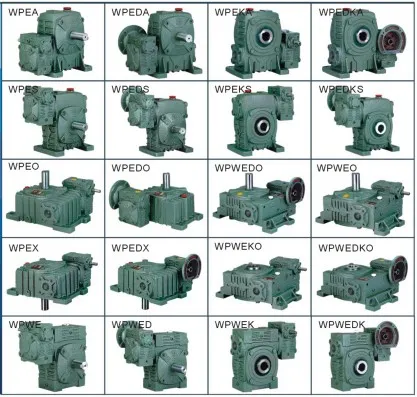

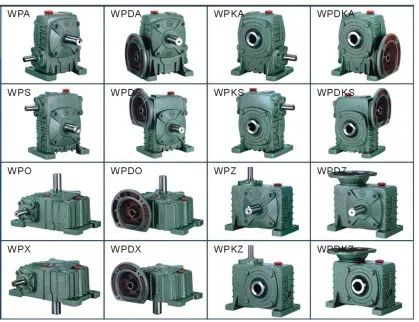

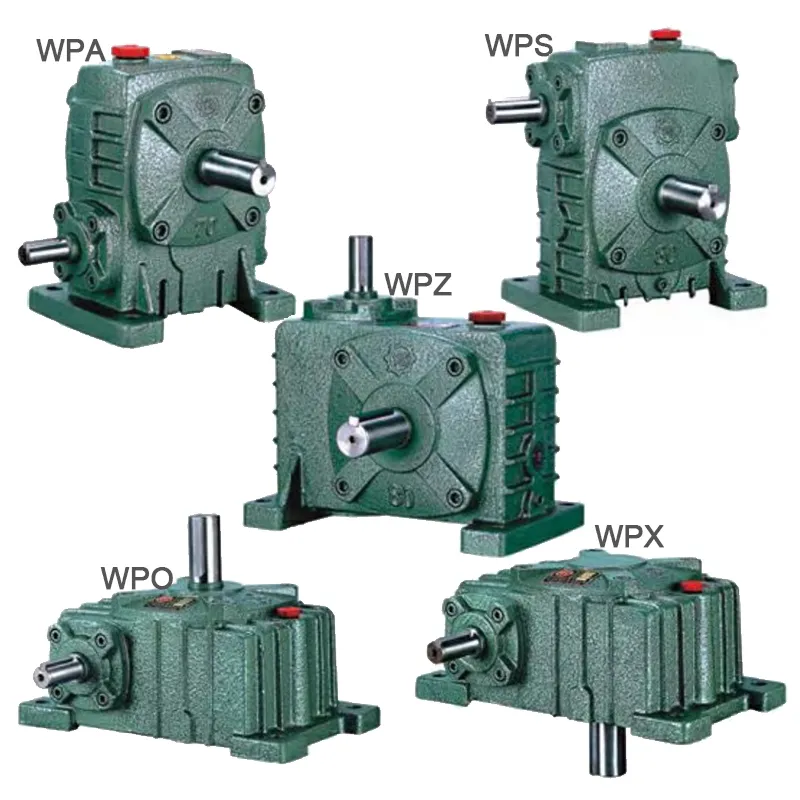

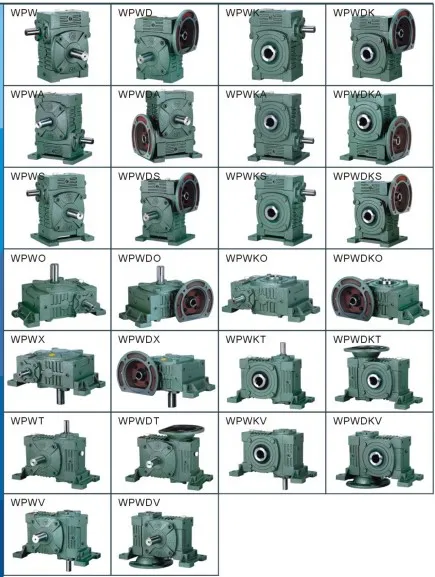

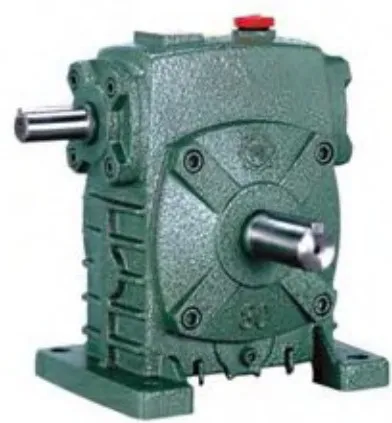

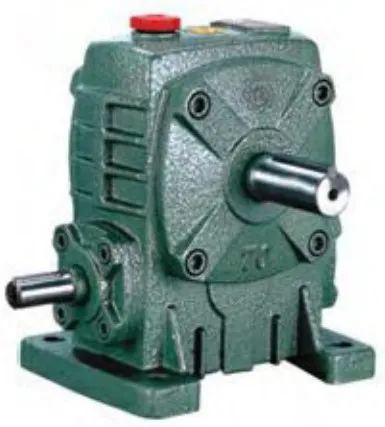

WP series worm gearbox is developed on the basis of the WD series worm gearbox. The housing is made of rigid cast iron with high strength, which can be suitable for harsh environments. It has various housing designs, the input forms include solid shaft input, hollow hole input, and flange input, and the output forms include solid shaft output and hollow hole output, so the WP series worm gearbox owns a variety of installation forms for option. It can be directly connected to the motor conveniently and be used with various mechanical equipment.
WP series worm gearbox product specifications 40-250; transmission ratio 10-60 single stage, 200-900 double stage; input power 0.12-33.2kW; output torque 6-6050N.m: a total of 60 series of more than 20,000 different specifications, transmission ratio, connection and installation methods can be selected to meet various user needs.
| Type: | WP series Single-stage Speed Reducer-Iron Worm Gear Box |
| Model: | WPKA40,50,60,70,80,100,120,135,155,175,200,250 |
| Brand name: | Ever-power or OEM |
| Color: | Blue/Green or on request |
| Ratio: | 10-60 |
| Input power: | 0.12-33kw(Under the case of input speed 1500rpm) |
| Output torque: | 6-6025n.m |
| Bearing: | C&U, NSK, SKF or specified |
| Seal: | CTY, CFW, SKF or specified |
| Origin: | Zhejiang, China |
| Warranty: | 1 year |
| Product features: |
It adopts American technology with durability, stable transmission, large carrying capacity, low noise, compact structure, large transmission ratio and wide power. |
| Application areas: | Textile printing and dyeing, rubber and plastic machinery, building materials machinery, environment protection machinery, lifting machinery, food packaging, metallurgical machinery, petrochemical industry, stage machinery and new energy field. |
|
Single Speed Worm Gearbox ratio: 1/5-1/60 |
Double Speed Worm Gearbox ratio: 1/100-1/3600 |
 |
 |
Universal Speed Worm Gearbox
ratio: 1/5-1/60
Packaging: To ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.
Delivery time: Each reducer is manufactured and tested by strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.
Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.
Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.
