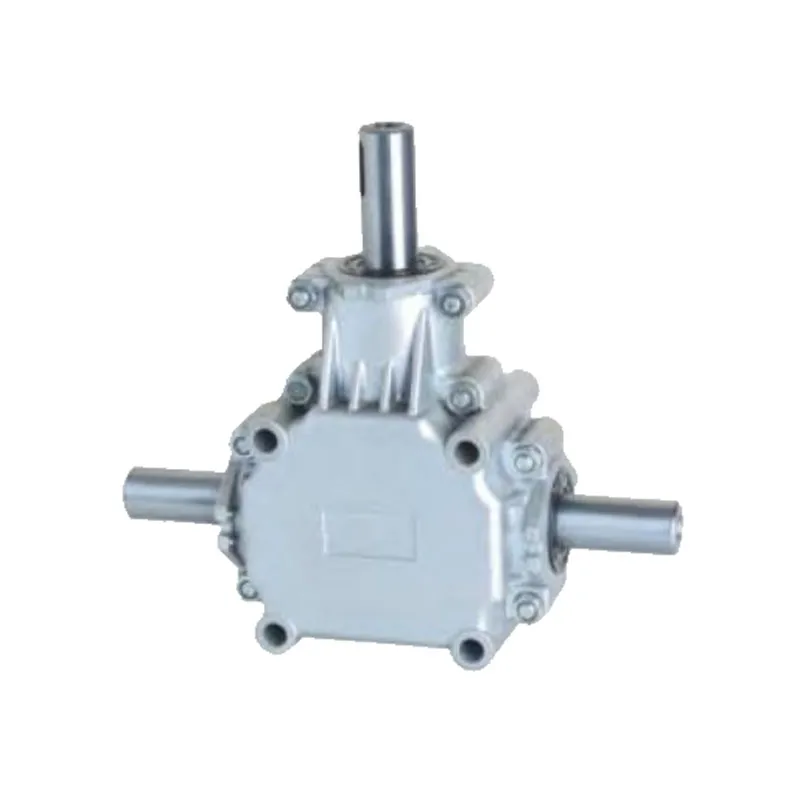

T-25j Rotary Mowers Gearbox

• Various (agricultural) applications
• Mowers
• Chemical fertiliser spreaders
• Band saws

  Description	Rotary Mowers Gearboxes - Replacement of T-25J speed increasing
  Application	Various (agricultural) applications Mowers Chemical fertiliser spreaders Band saws
  Consists of	Gearbox Without oil
  Technical information	If you have any questions regarding performance at different speeds, please do not hesitate to contact us When using for the first time, replace the oil after 50 operating hours
  Max. output torque	22.7 daNm
  Contains oil	No
  Max. oil capacity	0.35 l
  Max. oil change interval	500 h
  Oil SAE viscosity grade	80W-90
  Housing material	Aluminium
  Weight	4.1 kg
  Gear arrangement Reducing	3 - 4
  Input power kW / HP Increasing	11 / 15 kW/HP
  Input shaft Increasing	X
  Input shaft Reducing	Z
  Input power KW / HP Reducing	7 / 9.5 kW/HP
  Output Torque DaNm Increasing	9.9 daNm
  Ratio Increasing	1 : 1,9
  Ratio Reducing	1,9 : 1
  Shaft X	1 3/8" (6) (A)
  Shaft Z	22 (D)

We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.

Our Equipments

Agricultural gearbox:
Flail mower gearbox, rotary tiller gearbox, lawn mower gearbox, rotary cutter gearbox, agricultural sprayer gearbox, post hole digger gearbox, feed mixer gearbox, rotary mower gearbox, gearbox for circular saws, irrigation reels gearbox, agricultural generator gearbox, fertilizer spreader gearbox, hydraulic drive gearbox, manure spreader gearbox, rotary rakes gearbox, hay tedders gearbox, micro tiller gearbox, cutter bars gearbox, fertilizer mixer gearbox, agitators gearbox for sewage, round baler gearbox, snowblower gearbox
