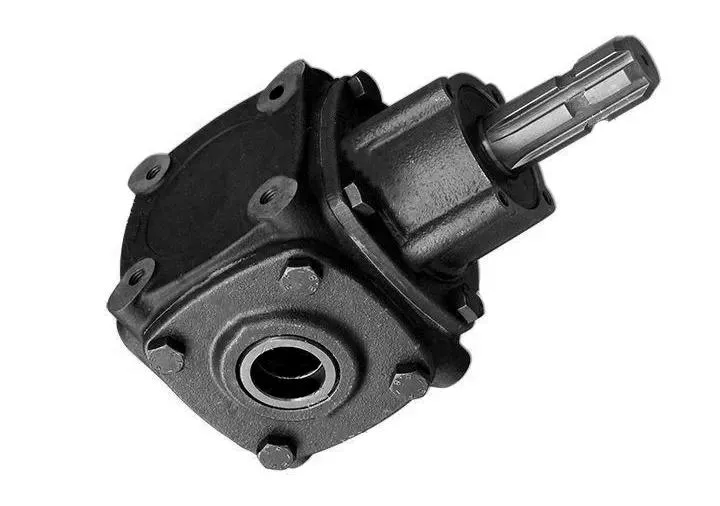

Manure spreader gearbox TB-19C is a specific type of gearbox used in manure spreader machines. It is produced by the brand Toper, which is known for its high-quality gearboxes for agricultural machinery. The manure spreader gearbox TB-19C is designed with a 1:1.46 gear ratio, which allows for efficient power transmission and optimum speed for the spreader paddles. It is made of cast iron for durability and heavy-duty use on agricultural fields. The gearbox has a torque rating of 423 nm, which means it can handle heavy loads of manure and other fertilizers without breaking down. Overall, the manure spreader gearbox TB-19C is a reliable and efficient choice for farmers and agricultural workers who demand high-performance equipment for spreading manure and fertilizers.
| Product details |
|
|---|---|
| Application range |
|
| Consists of |
|
| Max. output torque |
42.3 daNm
|
| Contains oil |
No
|

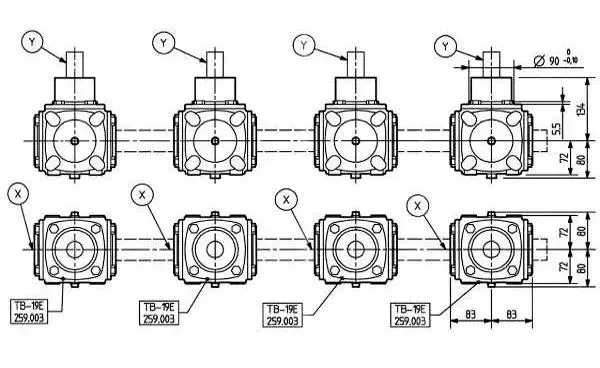

| Gear arrangement Increasing |
25 - 26 - 27 - 28
|
| Gear arrangement Reducing |
5 - 6
|
| Input power kW / HP Increasing |
20.6 / 28 kW/HP
|
| Input shaft Increasing |
X - Y
|
| Input shaft Reducing |
Z
|
| Input power KW / HP Reducing |
16.9 / 23 kW/HP
|
| Output Torque DaNm Increasing |
24.1 daNm
|
| Ratio Increasing |
1: 1.46
|
| Ratio Reducing |
1.46: 1
|

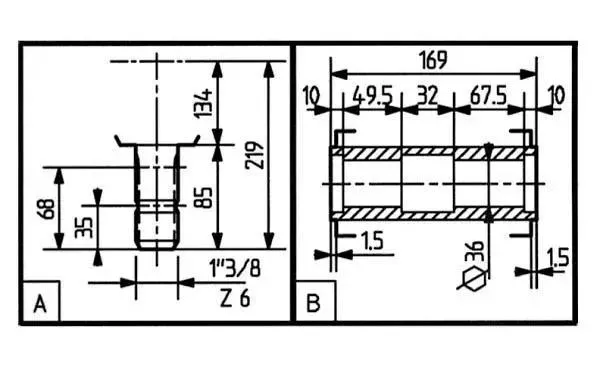

| Shaft X |
SW 36 (B)
|
| Shaft Y |
SW 36 (B)
|
| Shaft Z |
1 3/8" (6) (A)
|
Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

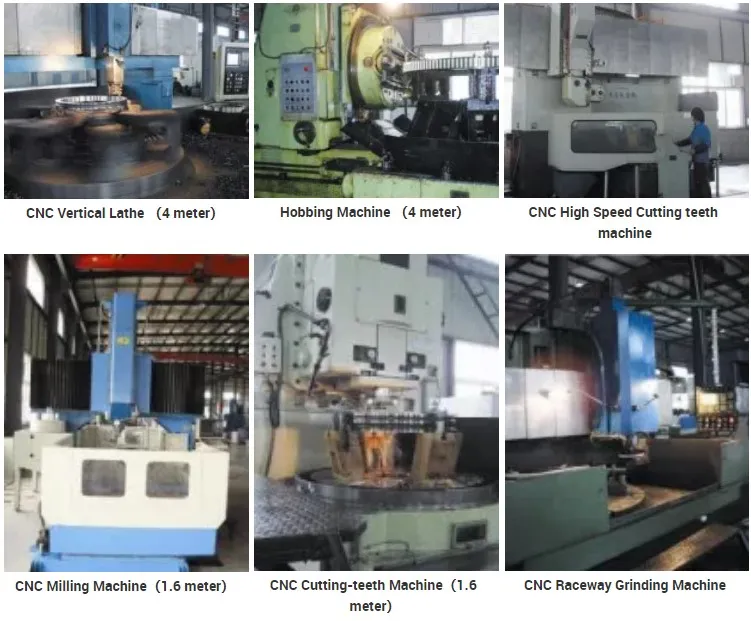

Our Equipments
