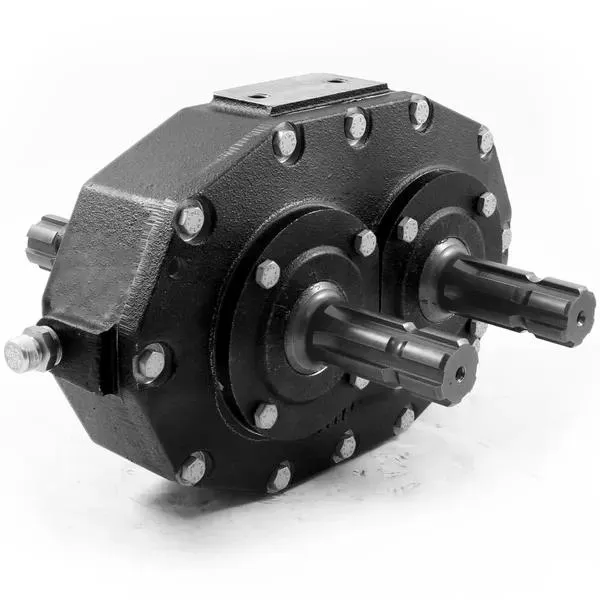

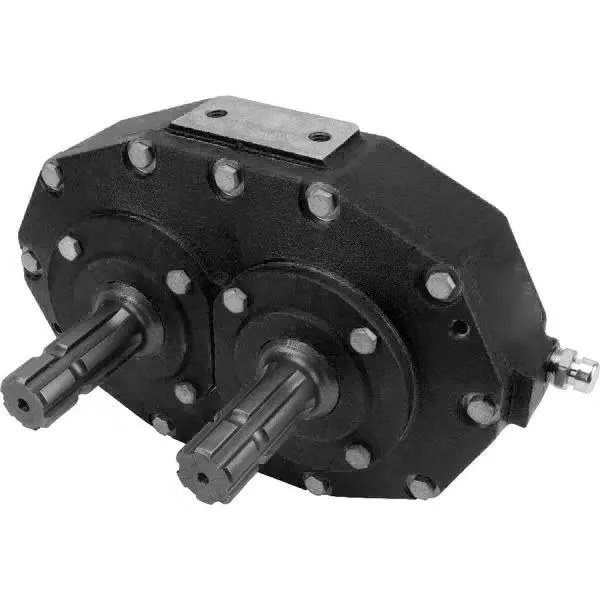

Tractor Pto Fertilizer Mixer Gearbox MR-90

Product DescriptionThe fertilizer mixer gearbox MR-90 is a mechanical device that is used in agricultural applications to mix and blend fertilizer materials. It is designed to convert the rotational motion from a tractor's PTO (Power Take-Off) shaft into the linear motion needed to drive the mix......
Product Description

The fertilizer mixer gearbox MR-90 is a mechanical device that is used in agricultural applications to mix and blend fertilizer materials. It is designed to convert the rotational motion from a tractor's PTO (Power Take-Off) shaft into the linear motion needed to drive the mixing blades of the fertilizer mixer. The MR-90 fertilizer mixer gearbox is typically made of heavy-duty cast iron or steel to withstand the high torque and rotational forces generated by the mixing blades. It contains multiple gear ratios that allow for the efficient mixing of various types of fertilizer materials. These gear ratios can be adjusted to match the specific mixing requirements of the application, allowing for optimal performance and efficiency.

Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1 Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1

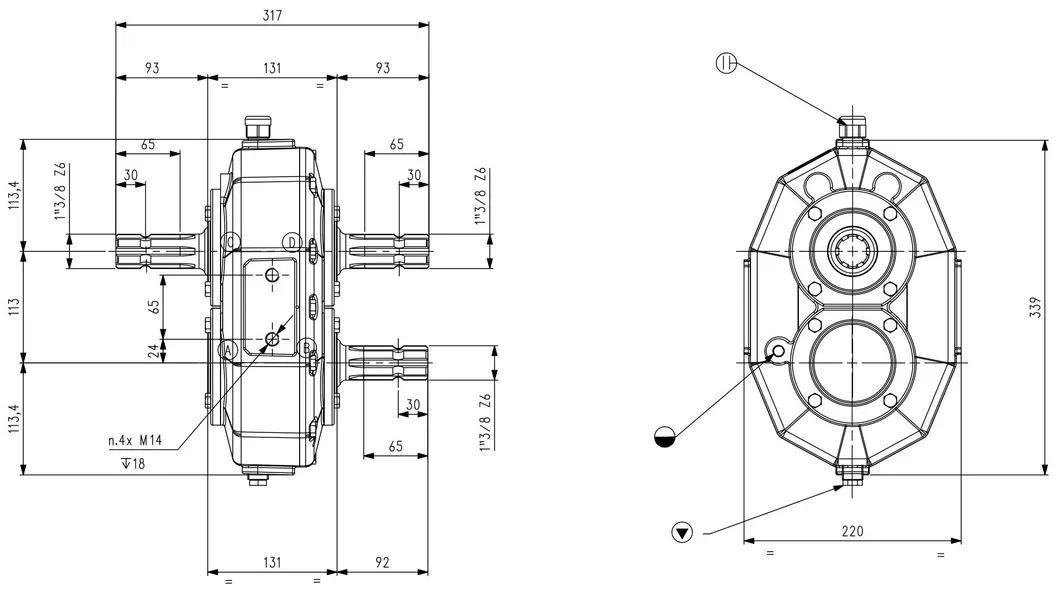

Product Parameters

Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1

Product details
  • Contact us for power at a different RPM
  • The gearbox is delivered without oil and must be filled before first use.
  • First, the oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.
Application range
  • Various (agricultural) applications
  • Fertiliser mixer
Consists of
  • Gearbox
  • Without oil
Max. input power
62.6 kW
Max. output torque
1071 nm
Max. output torque
107.1 daNm
Contains oil
No
Max. oil capacity
0.8 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG25
Weight
27.5 kg
Gear arrangement
43 - 44
Ratio
1:1
Input section
Y
Input shaft
Y
Shaft X
1 3/8" (6) (C)
Shaft Y
1 3/8" (6) (A)
Shaft Z
1 3/8" (6) (A)




Company Profile

Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1

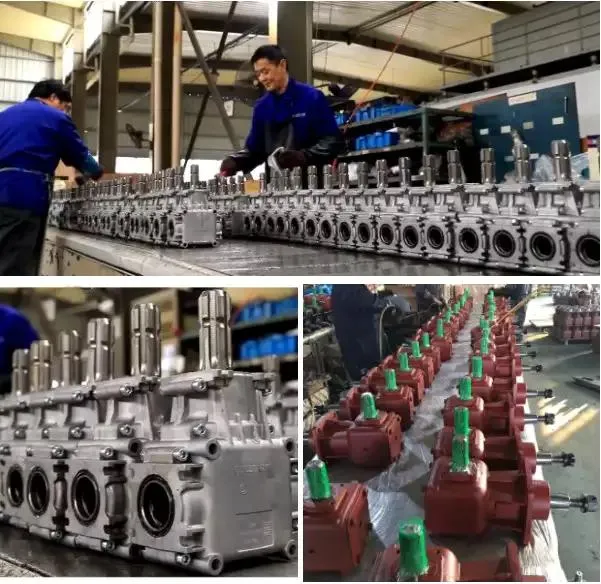

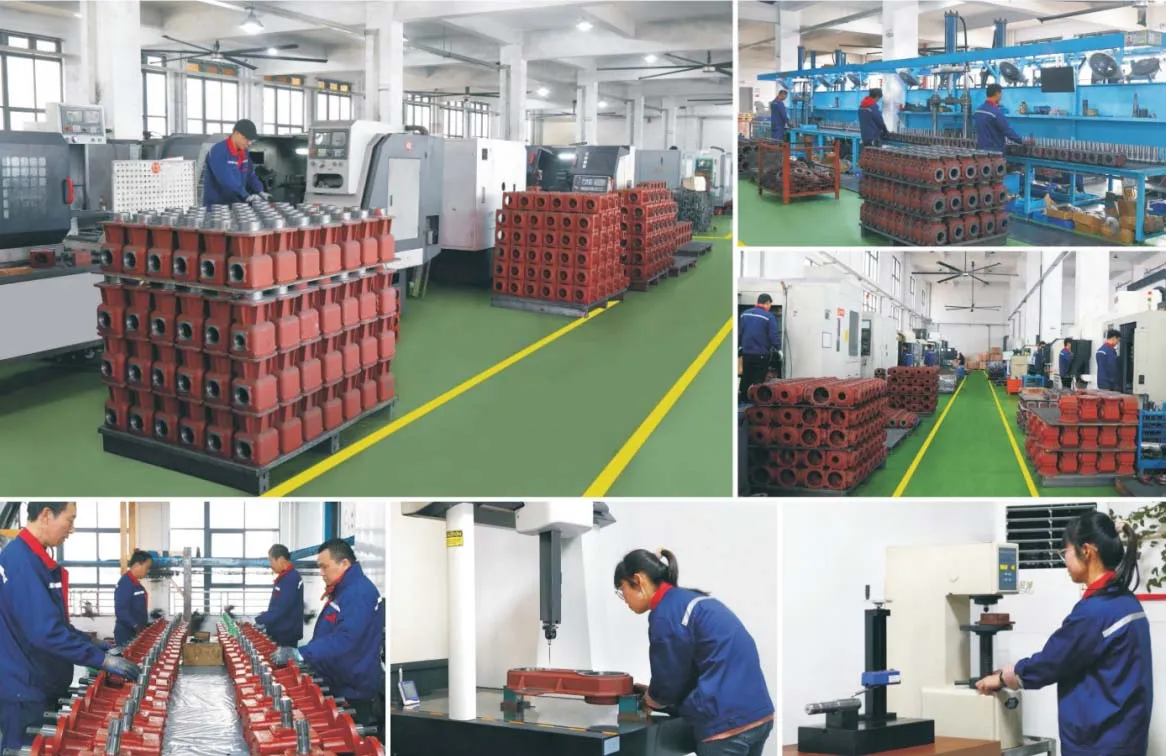

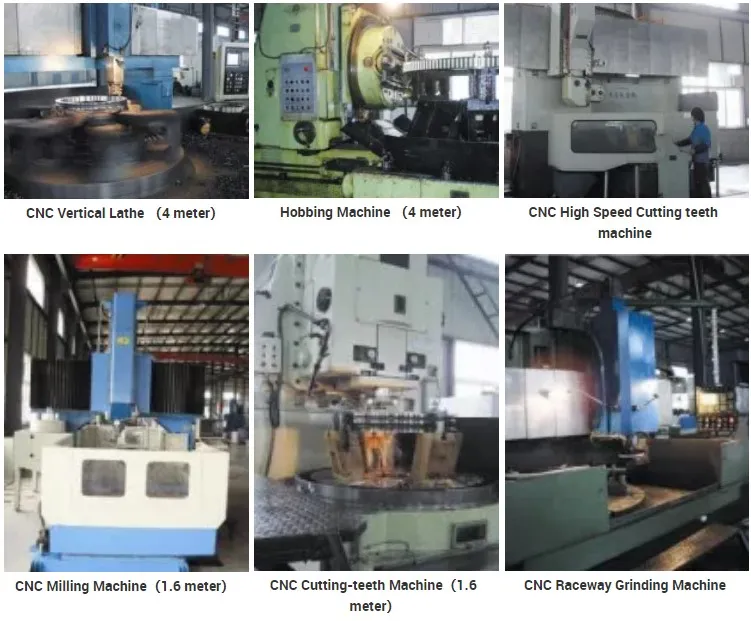

Our Equipments

Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1
Certification
Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1

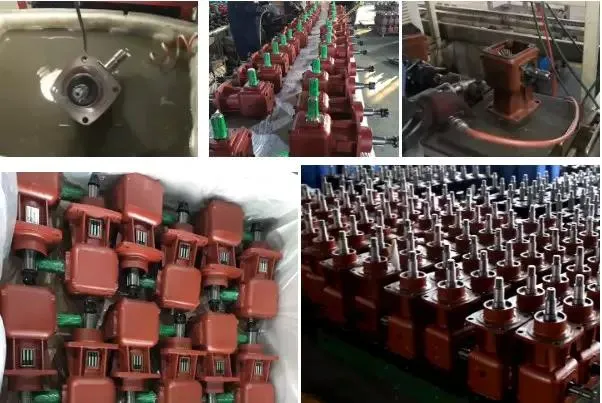

Packaging and Shipment
Agricultural Tractor Pto Fertilizer Mixer Gearboxes Mr-90 1: 1
Related products

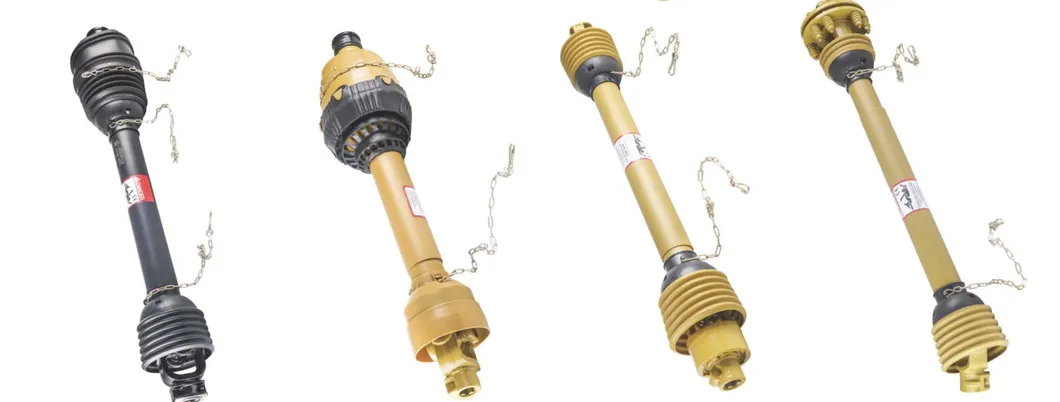

PTO Shaft
