Transmission Hard Chrome Gear Shaft

Raydafon Group's Transmission Hard Chrome Gear Shaft delivers superior durability and precision for automotive and industrial applications, ensuring smooth performance and extended lifespan, ideal for engineers and mechanics seeking reliable, high-quality solutions that boost efficiency and reduce downtime.

Send Inquiry

Product Description

OEM transmission Hard Chrome Forging Casting steel 45C Carbon Steel Transmission Spur Helical Pinion Spline Gear Shaft propeller shaft

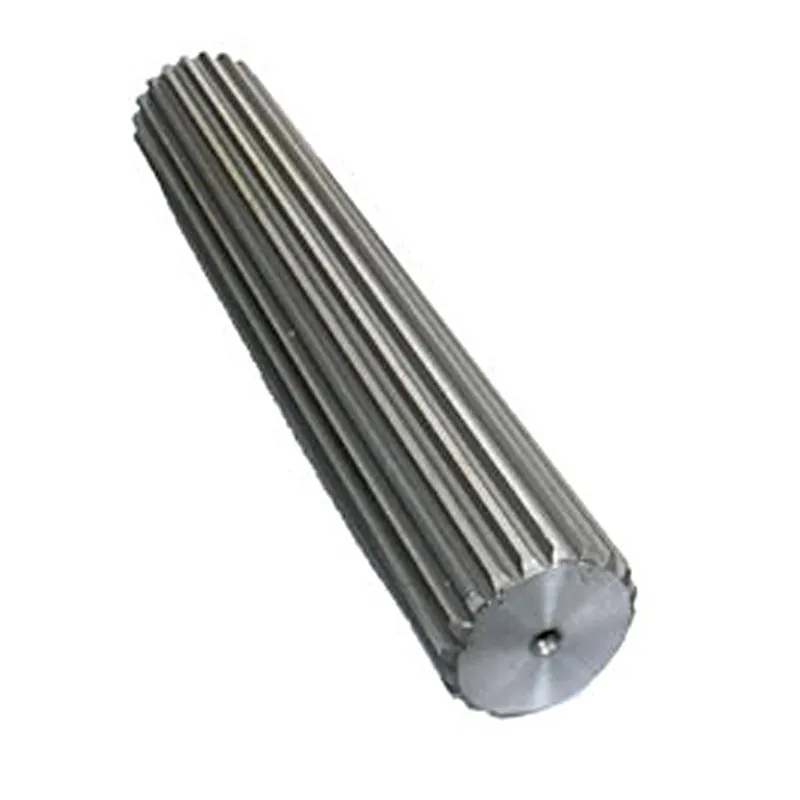

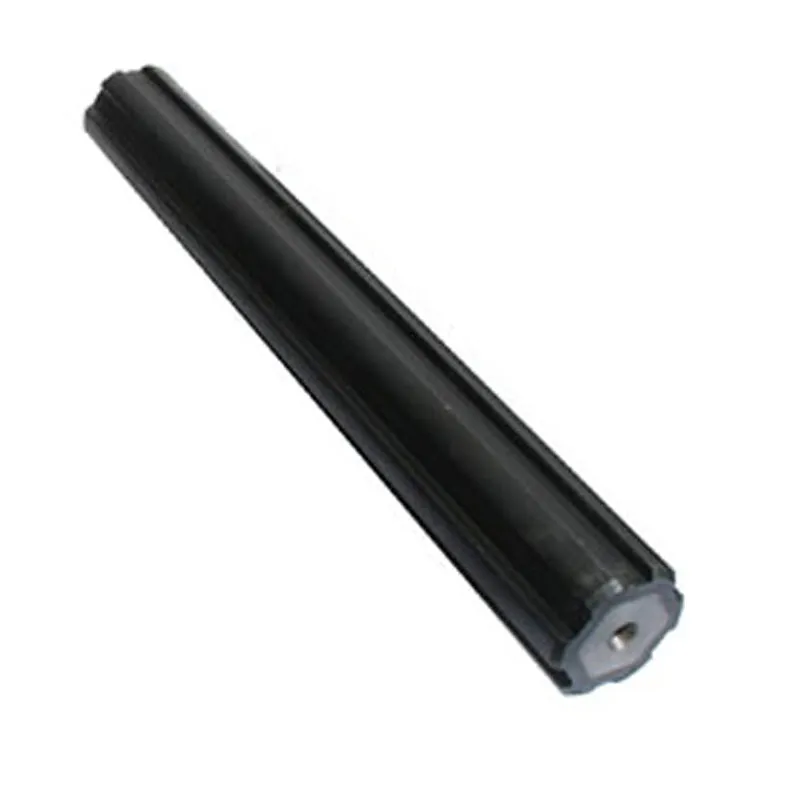

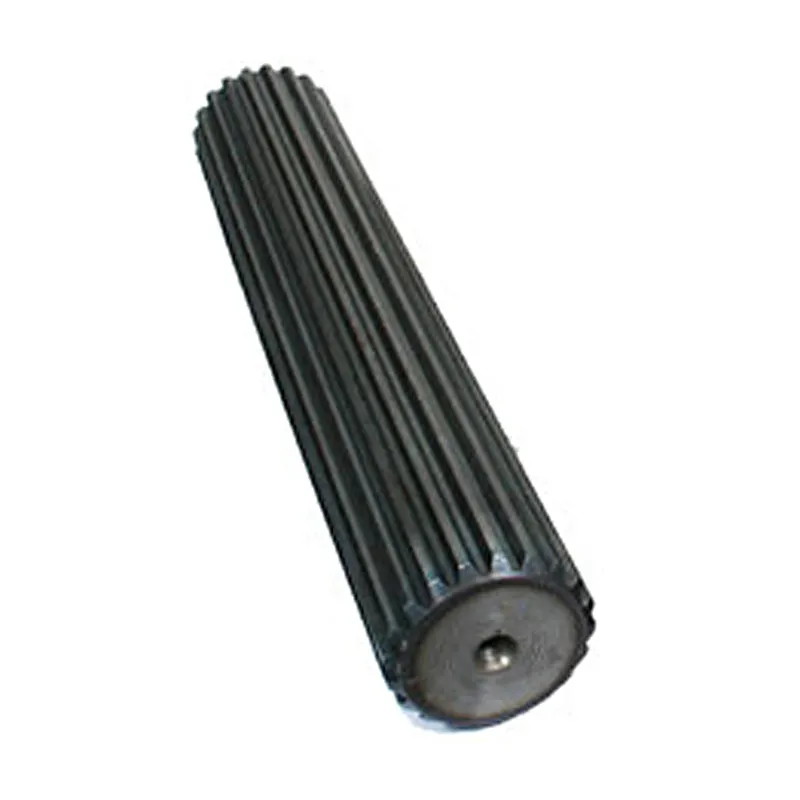

FULL SPLINED SHAFT

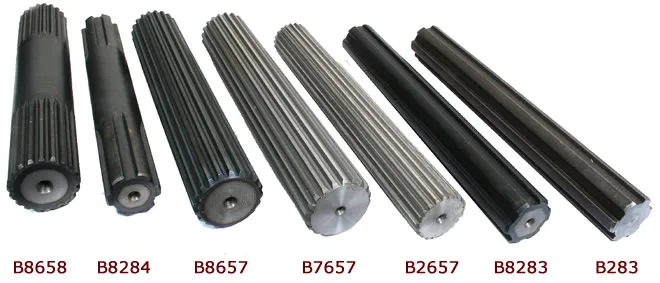

PART No.	DESCRIPTION	SPLINE SIZE	LENGTH
B283	Splined shafting 1045 carbon steel	1 3/8" dia x 6 spline	10" (250mm)
B6283		1 3/8" dia x 6 spline	29 1/2" (750mm)
B7283		1 3/8" dia x 6 spline	9.8ft (3 mtrs)
B2657		1 3/8" dia x 21 spline	10" (250mm)
B7657		1 3/4 dia x 20 spline	10" (250mm)
B9657		1 3/4 dia x 20 spline	39" (1000mm)
B8283	Heat treated high tensile grade 8	1 3/8" dia x 6 spline	10" (250mm)
B8657	Heat treated high tensile grade 8	1 3/4" dia x 20 spline	10" (250mm)

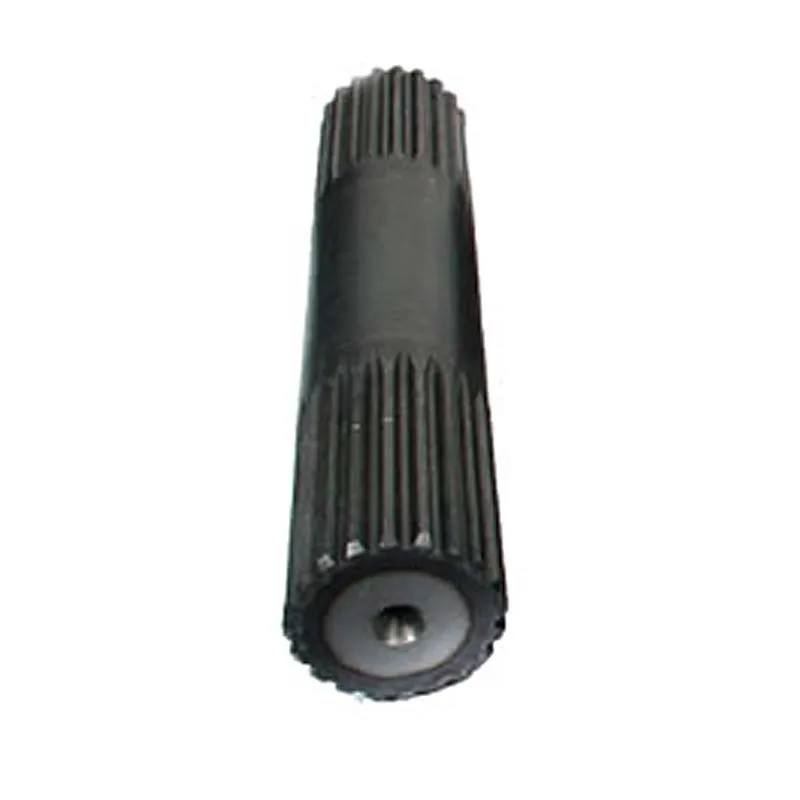

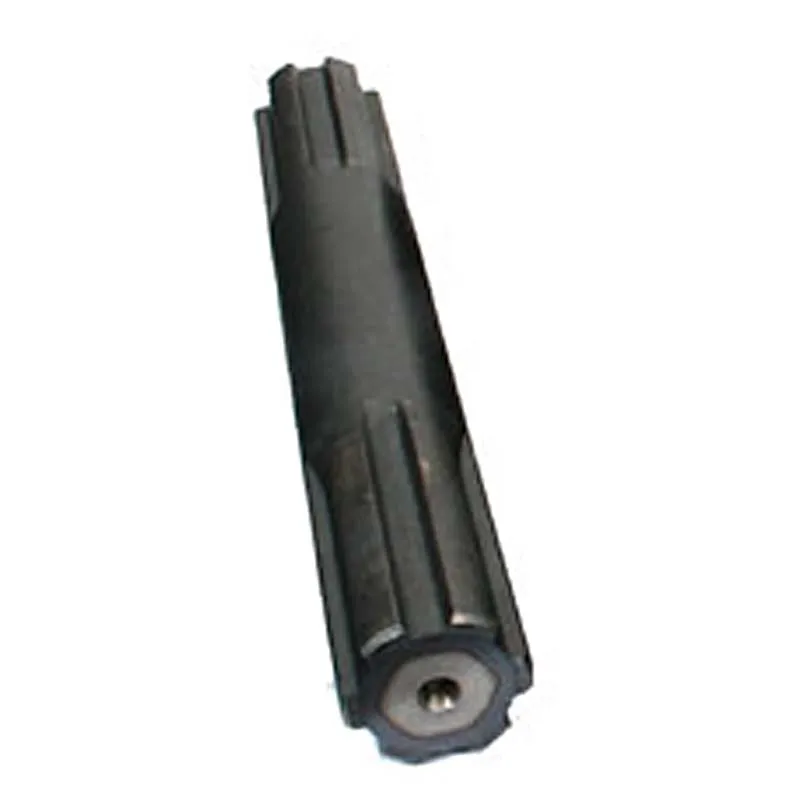

SPLINED SHAFT - PLAIN CENTRE
PART No	DESCRIPTION	SPLINE SIZE	LENGTH
B8284	Plain Centre Splined shafting Heat treated high tensile	1 3/8" dia x 6 spline	10" (250mm)
B8658	Plain Centre Splined shafting Heat treated high tensile	1 3/4" dia x 20 spline	10" (250mm)

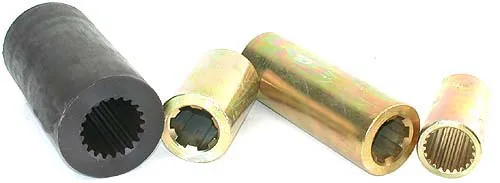

PART No.	DESCRIPTION	O.D.	SPLINE SIZE	LENGTH
B287	Splined sleeve 1045 carbon steel	2 1/8 " (54mm)	1 3/8" x 6 spline	3 1/4" (82mm)
B7287		2 1/8 " (54mm)	1 3/8" x 6 spline	6" (150mm)
B2418		2 1/8 " (54mm)	1 3/4" x 21 spline	6" (150mm)
B6418			1 3/4" x 20 spline	6" (150mm)
B8287	Heat treated high tensile grade 8	2 1/8 " (54mm)	1 3/8 x 6 spline	6" (150mm)
B9418	Heat treated high tensile grade 8	3" (75mm)	1 3/4" x 20 spline	Heavy wall 6" (150mm)
