Weasler 77 Series Pto Shaft

Product DescriptionHigh torque bearing capacity: The 77 series PTO shaft is usually used to drive large agricultural machinery, so it needs to have high torque bearing capacity to withstand strong power from tractors.Good lubrication performance: The 77 series PTO shaft needs to maintain good lubric......

Send Inquiry

Product Description

High torque bearing capacity: The 77 series PTO shaft is usually used to drive large agricultural machinery, so it needs to have high torque bearing capacity to withstand strong power from tractors.
Good lubrication performance: The 77 series PTO shaft needs to maintain good lubrication performance to ensure long-term use and stability.
Reliable sealing performance: The 77 series PTO shaft needs to have reliable sealing performance to prevent substances such as lubricating oil and dust from leaking out from both ends of the shaft.
Excellent durability: 77 series PTO shaft requires excellent durability to ensure stable operation in various harsh working environments.

Weasler 77 Series PTO Shaft

*Cross & Bearing Kit* Dim. "A" Bore=1 25/32" Dim. "B"=4 31/32"		Spline Shaft Dim. "A" =2" x 20 Spl. Length=3" Major Dim.=1.978/1.973
*Tractor Yoke*		Slip Sleeve Dim. "A" Bore=2" x 20 Spl. Length=5" Fits Tube Size=3" (.188 wall)
*Dim. "A" Bore*	*Dim. "B"*	*Implement Yoke*
1 3/8" × 6 Spl.	7"	*Implement Yoke*
1 3/4" × 20 Spl.	7"	*Dim. "A" Bore*	*Dim. "B"*	*Standard* *Keyway*
1 3/8" × 21 Spl.	7"	1 3/4"	5 3/4"	3/8"
*Shaft Weld Yoke* *Dim. "A" Bore=2" x 20 Spl. Dim. "B" Bore=*5 1/4"		2"	6 1/4"	1/2"
		1 3/4" x 20 Spl.	6 1/4"
*Tube* *Length=*6' or 3'		2" Rd.	6 1/4"
*Tube* *Length=*6' or 3'		*Yoke & Shaft Assembly* *Shaft Size=2" x 20 Spl. Dim. "A"=*32.75"
*Tube Weld Yoke* *Dim. "A"=5 3/4"* *Fits Tube Size=3" (.188 wall)*
		Guard
*Easy Lock Replacement Kit*	*Guard Chain Kit*	*Overall Driveline Length*	48"	60"
*Easy Lock Replacement Kit*	*Guard Chain Kit*	*Bearing Kit (2-per kit)*	961-4535	961-4535

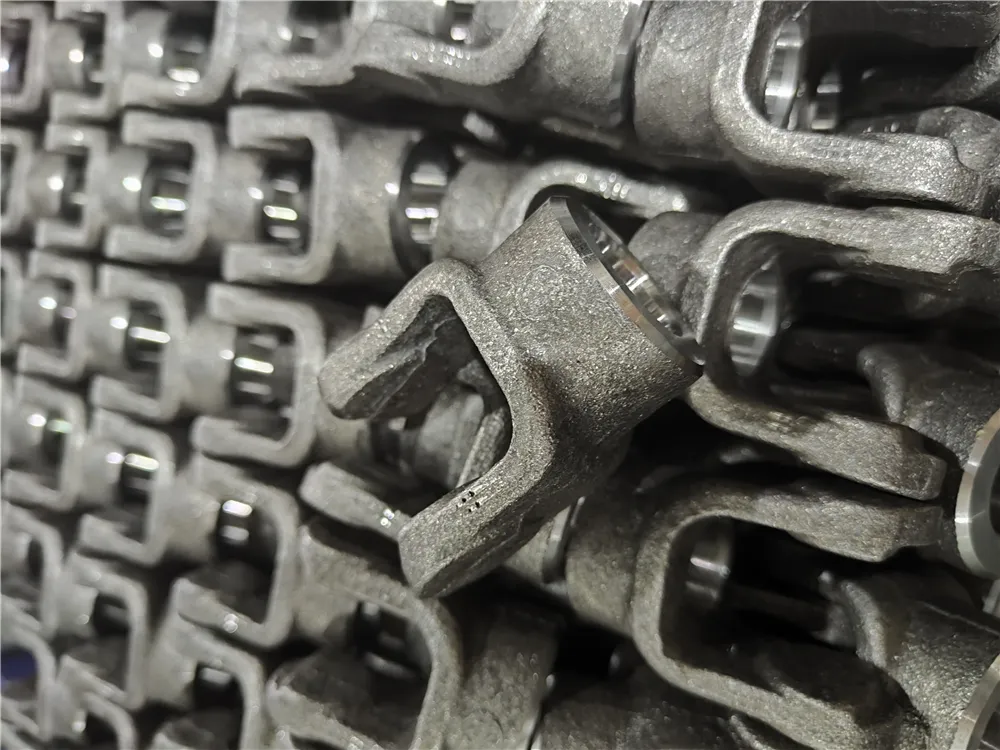

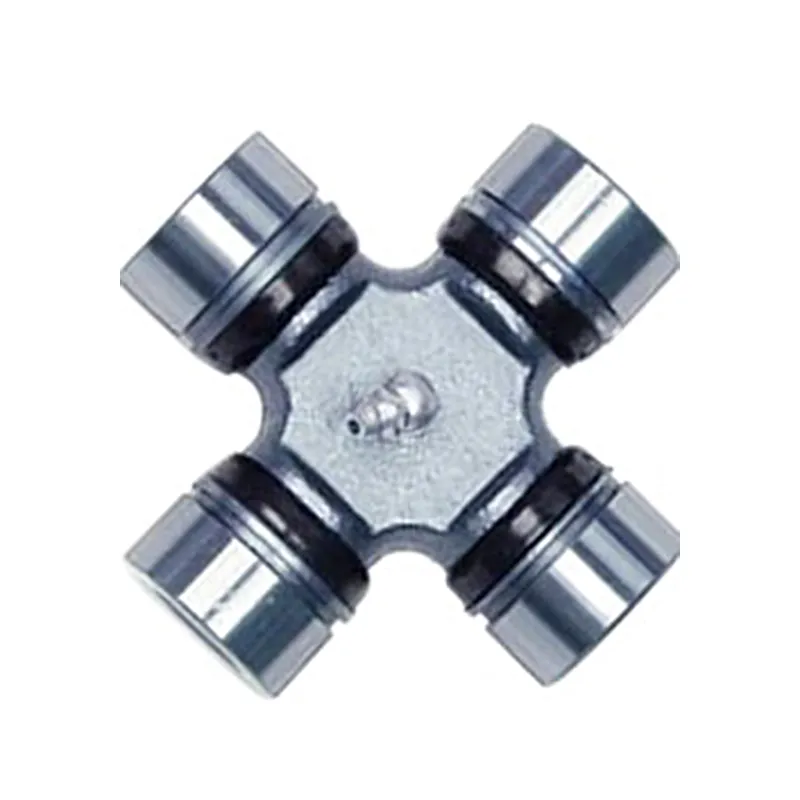

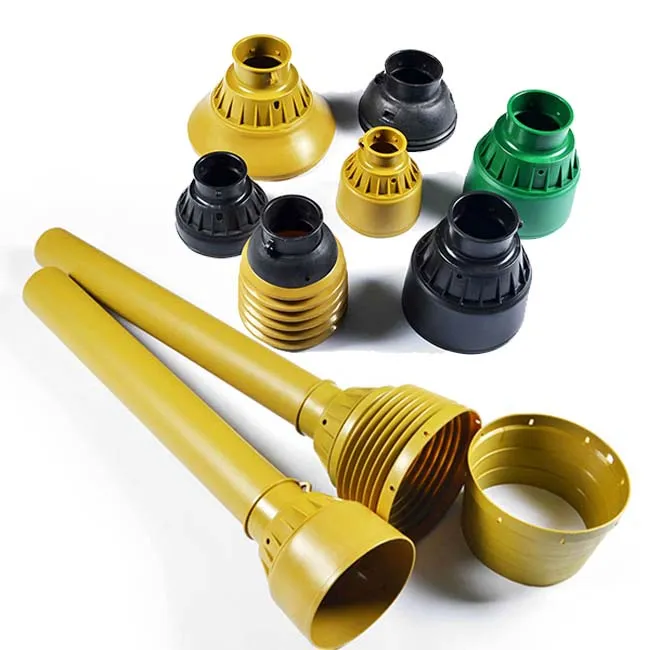

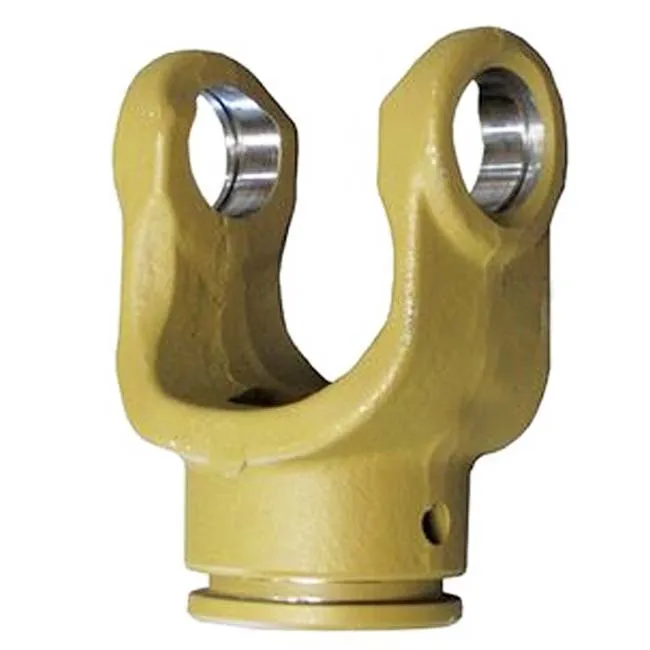

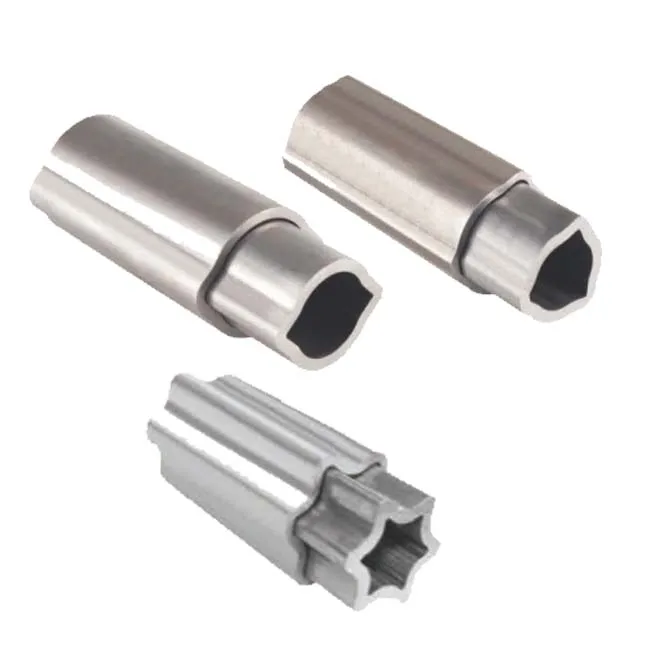

Cross Kit/ Universal Joint	Tube	Shaft Shield Guard	Yoke

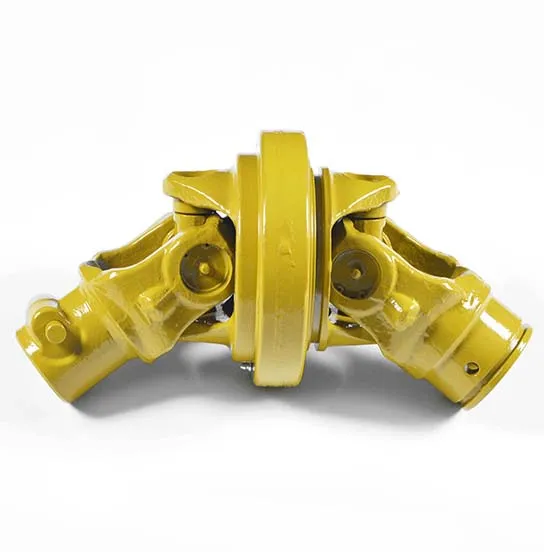

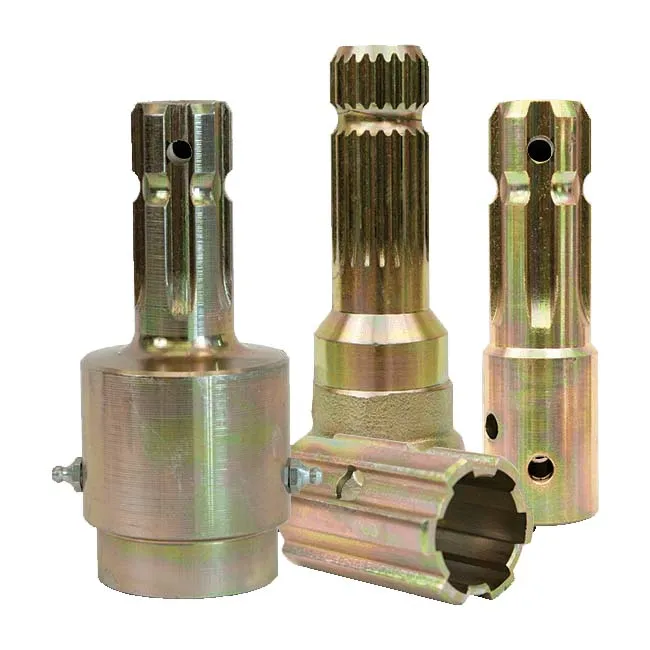

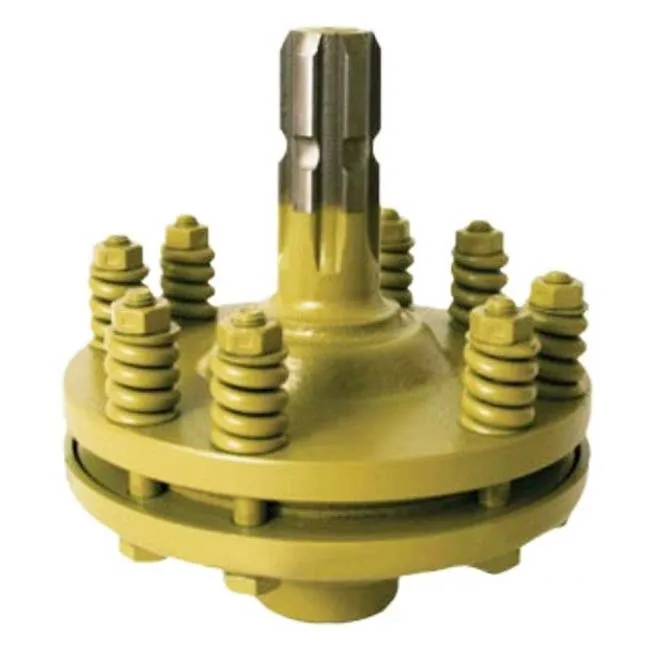

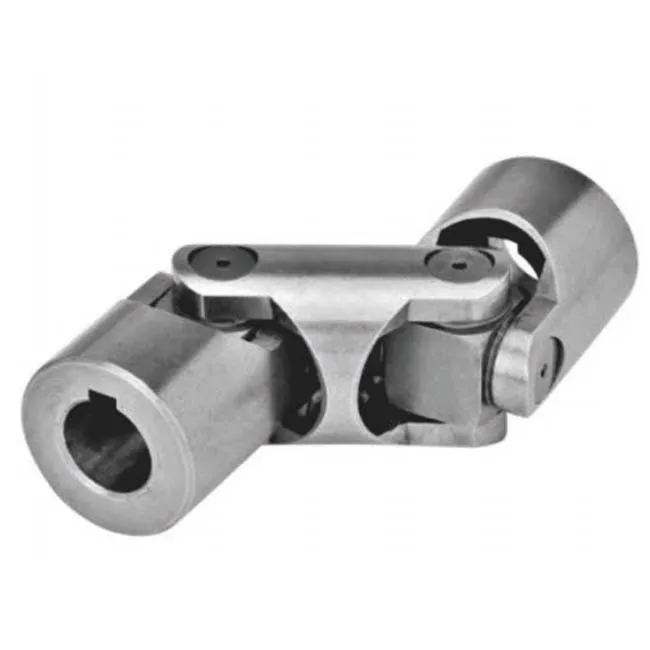

Torque Limiter	PTO Spline & Adaptor & Hub	Universal Coupling	Wide Angle Joint

As a China PTO shaft manufacturer, we have the following advantages:

High quality products: We use the most advanced technology and materials to ensure that the PTO shafts we produce have excellent quality and durability.
Comprehensive product line: Our PTO shafts cover a variety of types and sizes to meet the needs of different customers.
Customized service: We can produce customized PTO shaft products according to the specific needs of customers, thereby ensuring that customer requirements are met.
Fast delivery time: Our production line operates efficiently and can quickly respond to customer needs, ensuring rapid delivery of PTO shaft products.
Professional technical support: We have a professional technical team that can provide customers with various technical support and consulting services to ensure that customers receive the best solution.

Weasler 77 Series Pto Shaft Replacement Agricultural Farm Tractor Driveline

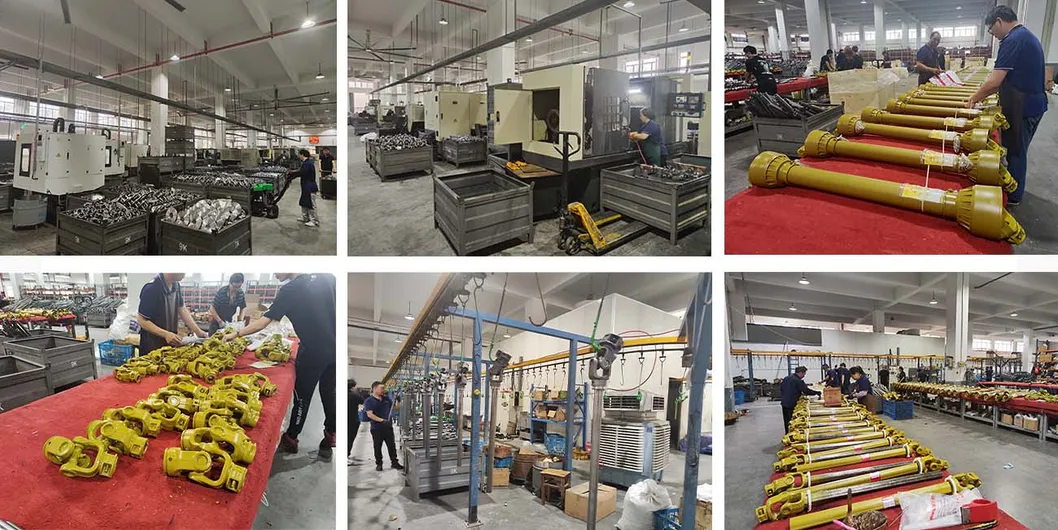

We welcome you to our PTO shaft production factory in China. We are one of the largest China PTO shaft manufacturers , focusing on providing customers with high-quality and high-performance PTO shaft. We are an experienced manufacturer dedicated to producing high-quality PTO shafts to help customers successfully complete their various projects.
We are committed to using the most advanced technology and equipment to ensure that the PTO shafts we produce have excellent quality and reliability, to ensure that customers receive the best performance and service life. Our team is composed of experienced professionals who can tailor the PTO shaft to the customer's needs to best meet their specific requirements.
In addition, our factory has a strict quality management system to ensure that each PTO shaft meets industry standards and passes all necessary quality tests. We have first-class after-sales service and will make every effort to ensure customer satisfaction.
We look forward to working with you and manufacturing high-quality PTO shafts for you to help your project achieve greater success. If you have any questions about our factory, please feel free to contact us.

Hot Tags: Weasler 77 Series Pto Shaft Replacement Agricultural Farm Tractor Driveline, Driveline, Pto Drive Shaft
