Y2 Series Aluminium Brake Motors with Hand Release

Discover Raydafon Group's Y2 Series Aluminium Brake Motors with Hand Release: lightweight, durable, and reliable for industrial use. Featuring easy manual release, superior efficiency, and quiet operation, it's ideal for machinery, automation, and elevators. Experience enhanced safety, reduced downtime, and smooth performance—engineered for professionals seeking quality and innovation. Trust in excellence with Raydafon.

Send Inquiry

Product Description

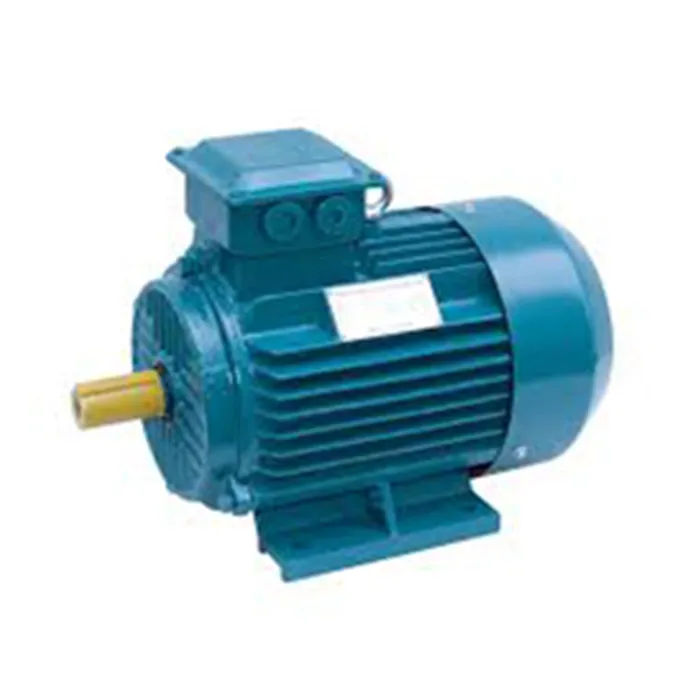

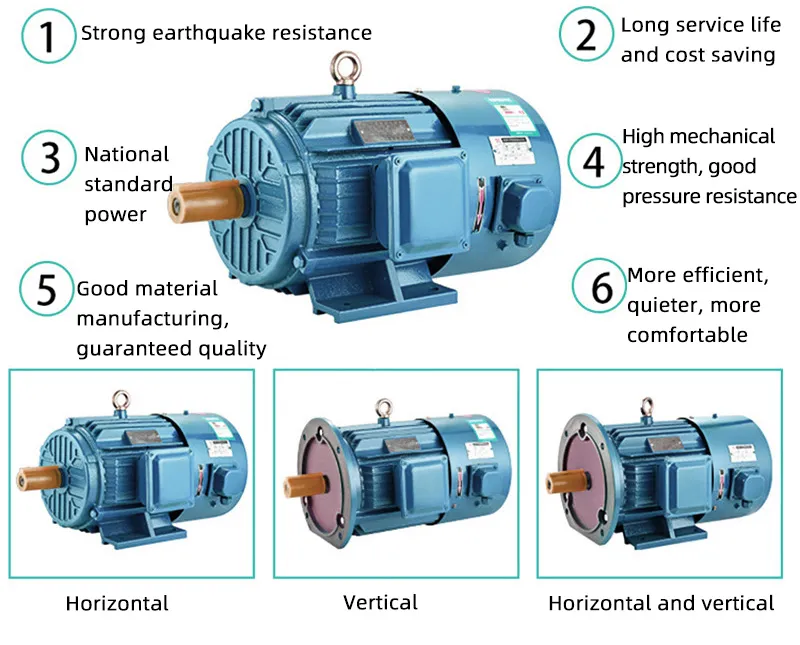

Y2 Series Aluminium Housing Copper Wire AC DC Brake Three-Phase Asynchronous Motors with Hand Release with Double Side Output Shaft

Product Application

Our Motor are a fully closed, self-fan cold mouse cage three-phase asynchronous motor manufactured with new materials, new techniques, and optimized design, have high efficiency, high starting torque, low noise, more reasonable structure, and cooling conditions mature. This series of motors for general purpose three-phase asynchronous motors. It can be used to drive a variety of general mechanical equipment, such as compressors, fans, pumps, and other mechanical equipment, but also in petroleum, chemical, pharmaceutical, mining, and other fields.

Type	Amps	Watts(HP)	rmp	Eff.%	Cos.fi	Tsn/In	Isn/In	Tmax/Tn
YE3-80M1-2	1.7	1.1	2880	80.7	0.82	2.3	7	2.3
YE3-80M2-2	2.4	1.5	2880	82.7	0.83	2.2	7.3	2.3
YE3-90S-2	3.2	2	2895	84.2	0.84	2.2	7.6	2.3
YE3-90L-2	4.6	3	2895	85.9	0.85	2.2	7.6	2.3
YE3-100L-2	6	4	2995	87.1	0.87	2.2	7.8	2.3
YE3-112M-2	7.8	5.5	2905	88.1	0.88	2.2	8.3	2.3
YE3-132S1-2	10.6	7.5	2930	89.2	0.88	2	8.3	2.3
YE3-132S2-2	14.4	10	2930	90.1	0.88	2	7.9	2.3
YE3-160M1-2	20.6	15	2945	91.2	0.89	2	8.1	2.3
YE3-160M2-2	27.9	20	2945	91.9	0.89	2	8.1	2.3
YE3-160L-2	34.2	25	2945	92.4	0.89	2	8.2	2.3
YE3-180M-2	40.5	30	2960	92.7	0.89	2	8.2	2.3
YE3-200L1-2	54.9	40	2955	93.3	0.89	2	7.6	2.3
YE3-200L2-2	67.4	50	2955	93.7	0.89	2	7.6	2.3
YE3-225M-2	80.8	60	2965	94	0.9	2	7.7	2.3
YE3-250M-2	98.5	75	2970	94.3	0.9	2	7.7	2.3
YE3-280S-2	133.7	100	2975	94.7	0.8	1.8	7.1	2.3
YE3-280M-2	159.9	120	2975	95	0.9	1.8	7.1	2.3
