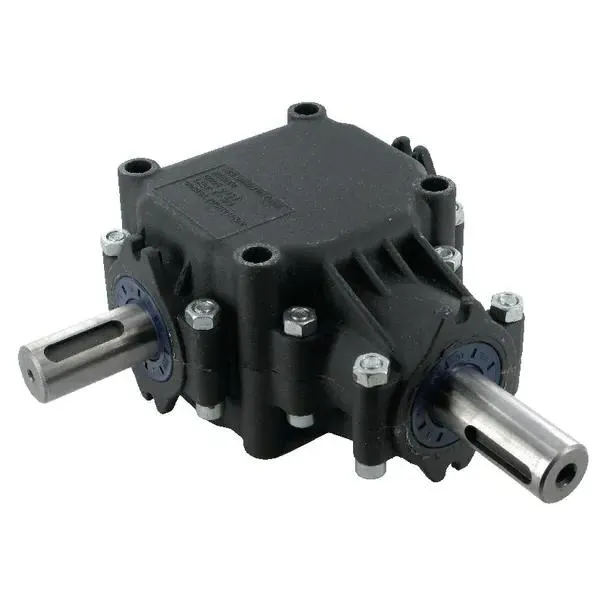

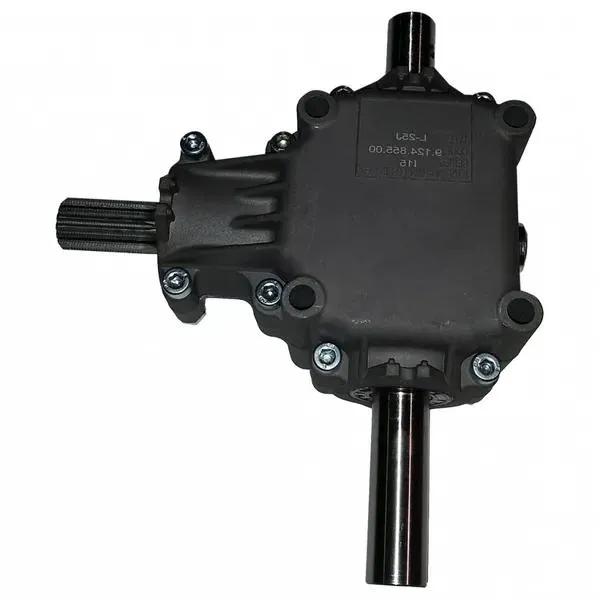

The fertilizer spreader gearbox L-25J is a type of agricultural gearbox designed specifically for use in fertilizer spreaders. It is a high-quality and durable gearbox that is designed to provide a smooth and efficient operation and is capable of handling a wide variety of fertilizer materials. The fertilizer spreader gearbox L-25J is typically made of high-strength metal materials such as cast iron, which provides excellent durability and resistance to wear and tear. It is designed with a gear ratio that is optimized for fertilizer spreading operations, which helps to ensure the accurate application of the fertilizer.
| Description |
Fertilizer Spreader Gearbox - Replacement of Gearbox L-25J
|
|---|---|
| Application |
|
| Consists of |
|
| Technical information |
|
| Max. output torque |
22.7 daNm
|
| Contains oil |
No
|
| Max. oil capacity |
0.35 l
|
| Max. oil change interval |
500 h
|
| Oil SAE viscosity grade |
80W-90
|
| Housing material |
Aluminium
|
| Weight |
4.1 kg
|
| Gear arrangement Reducing |
3 - 4
|
| Input power kW / HP Increasing |
11 / 15 kW/HP
|
| Input shaft Increasing |
X
|
| Input shaft Reducing |
Z
|
| Input power KW / HP Reducing |
7 / 9.5 kW/HP
|
| Output Torque DaNm Increasing |
9.9 daNm
|
| Ratio Increasing |
1: 1,9
|
| Ratio Reducing |
1.9: 1
|
| Shaft X |
1 3/8" (6) (A)
|
| Shaft Z |
22 (D)
|
