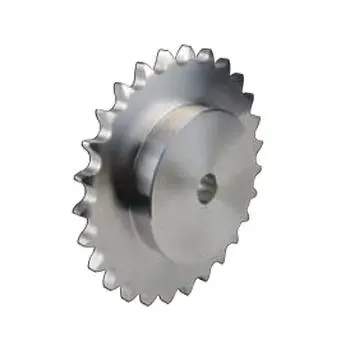

We stock a full line of ANSI single-strand 304-grade stainless steel sprockets, both as A-Plate style and B-Hub style. We keep these on the shelf as standard stock bores. However, we can supply sprockets with finished bores thanks to our fast-reaction in-house industrial machine shop. Typically our sprockets are manufactured out of 304-grade stainless steel, but 316, as well as a few other grades, are available upon request.
This series of sprockets can be used with 1874TAB-G Flat Top Chains Sideflexing.
| CODE | TYPE A | TYPE B | ||||||
| Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
Do Outer dia. (mm) |
Dp Pitch dia. (mm) |
D Bore dia. (mm) |
d Hub dia. (mm) |
H Overall length (mm) |
|
| 13T | 89 | 79.60 | 14 | 89 | 79.60 | 14 | 57 | 32 |
| 14T | 95 | 85.61 | 16 | 95 | 85.61 | 16 | 62 | 32 |
| 15T | 101 | 91.62 | 16 | 101 | 91.62 | 16 | 68 | 32 |
| 16T | 107 | 97.65 | 16 | 107 | 97.65 | 16 | 73 | 32 |
| 17T | 113 | 103.67 | 16 | 113 | 103.67 | 16 | 73 | 32 |
| 18T | 119 | 109.71 | 16 | 119 | 109.71 | 16 | 83 | 40 |
| 19T | 126 | 115.74 | 16 | 126 | 115.74 | 16 | 83 | 40 |
| 20T | 132 | 121.78 | 16 | 132 | 121.78 | 16 | 83 | 40 |
| 21T | 138 | 127.82 | 16 | 138 | 127.82 | 16 | 83 | 40 |
| 22T | 144 | 133.86 | 16 | 144 | 133.86 | 16 | 83 | 40 |
| 23T | 150 | 139.90 | 16 | 150 | 139.90 | 16 | 83 | 40 |
| 24T | 156 | 145.95 | 16 | 156 | 145.95 | 16 | 83 | 40 |
| 25T | 162 | 151.99 | 16 | 162 | 151.99 | 16 | 83 | 40 |
| 26T | 168 | 158.04 | 16 | 168 | 158.04 | 16 | 83 | 40 |
| 27T | 174 | 164.09 | 20 | 174 | 164.09 | 20 | 83 | 40 |
| 28T | 180 | 170.14 | 20 | 180 | 170.14 | 20 | 83 | 40 |
| 29T | 187 | 176.20 | 20 | 187 | 176.20 | 20 | 83 | 40 |
| 30T | 193 | 182.25 | 20 | 193 | 182.25 | 20 | 83 | 40 |
NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
