Product Description

(1) Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS Chain

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

Product Specifications

CODE	Z	Do mm	DF mm
I32010	10	122	25/30/35/40
I32012	12	147	25/30/35/40

(2) Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS Chain

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

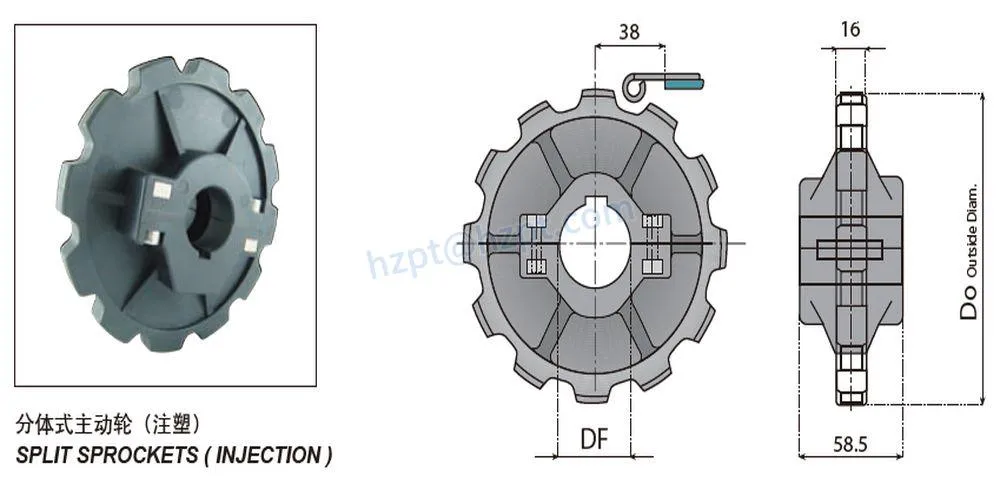

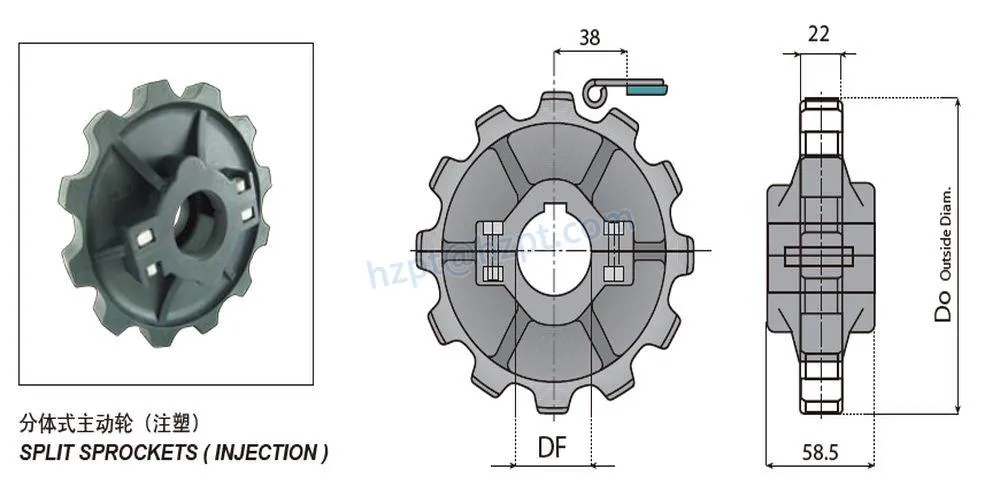

Product Specifications (Split Sprockets)

CODE	Z	Do mm	DF mm
I33009-1	9	110	25/30/35/40
I33010-1	10	122	25/30/35/40
I33011-1	11	135	25/30/35/40
I33012-1	12	147	25/30/35/40

Product Specifications (Single-Piece Sprockets)

CODE	Z	Do mm	DF mm
I33009-2	9	110	25/30/35/40
I33010-2	10	122	25/30/35/40
I33011-2	11	135	25/30/35/40
I33012-2	12	147	25/30/35/40

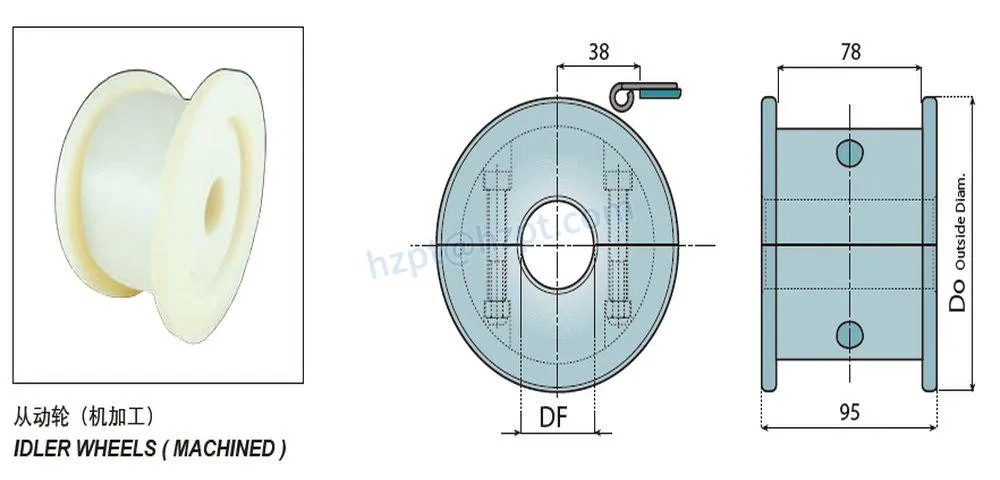

(3) Sprockets and Idler Wheels For 880/880M/880TAB/878TAB/880BS Chain

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

Product Specifications

CODE	Z	Do mm	DF mm
I34010-ID	10	122	25/30/35/40
I34012-ID	12	147	25/30/35/40

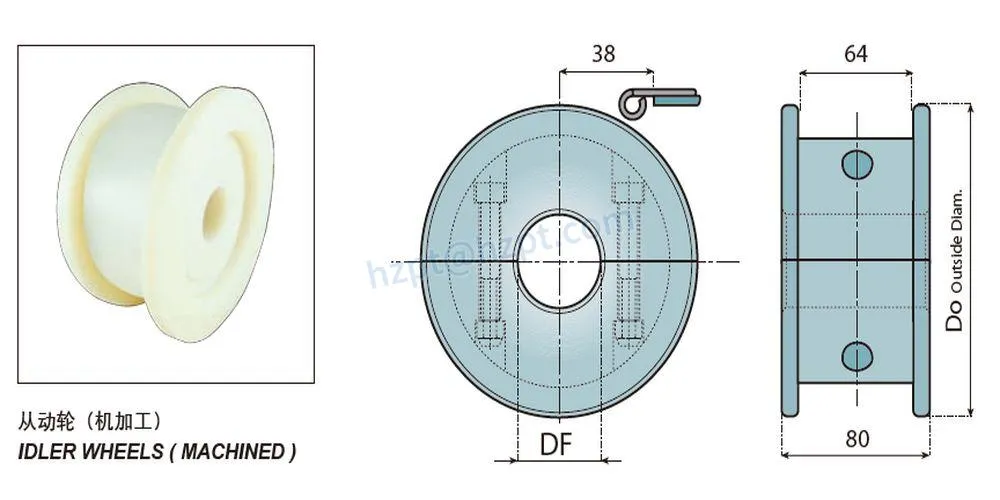

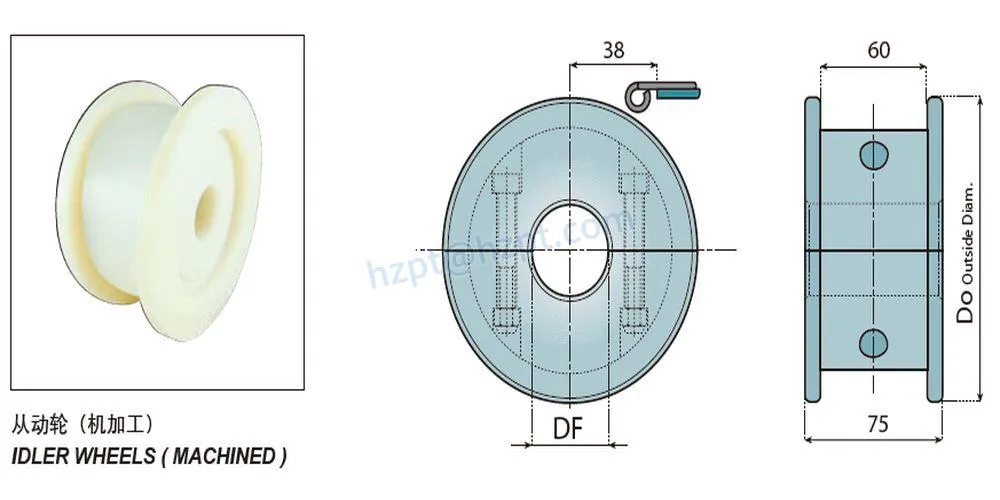

(4) Sprockets and Idler Wheels For 880-880M Chain

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

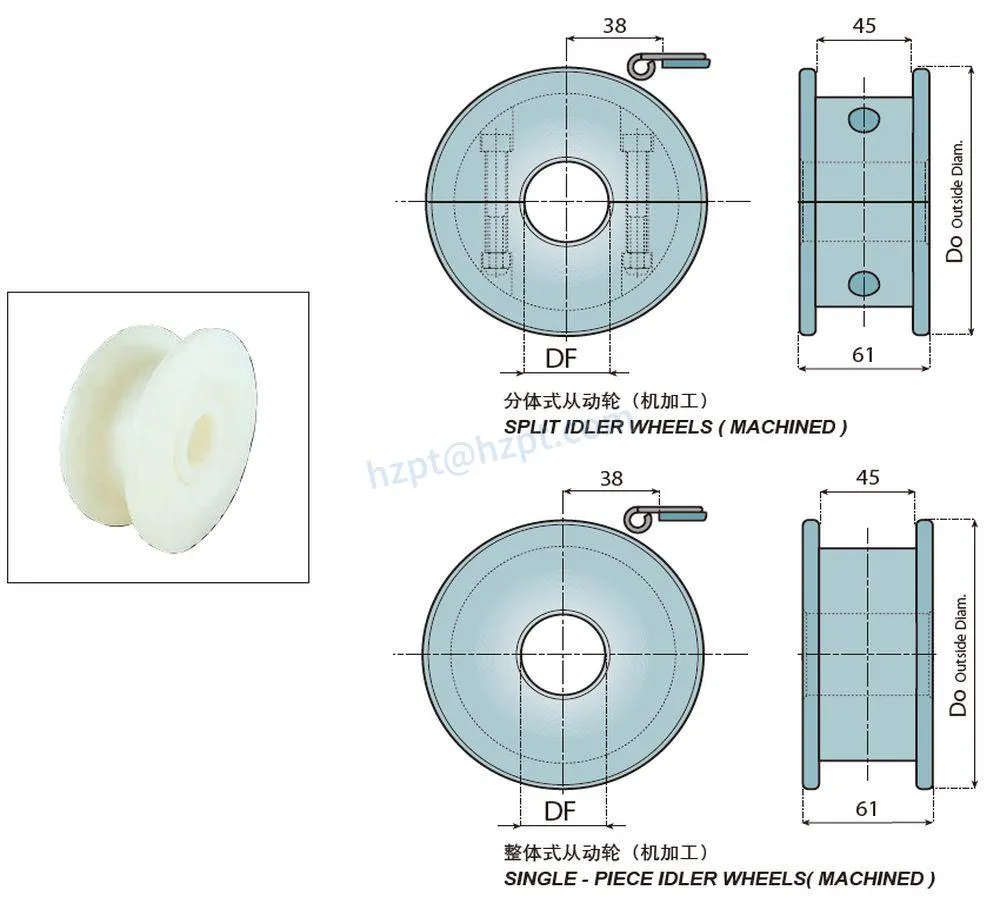

Product Specifications (Split Idler Wheels)

CODE	Z	Do mm	DF mm
I35009-ID-1	9	117	25/30/35/40
I35010-ID-1	10	129	25/30/35/40
I35011-ID-1	11	142	25/30/35/40
I35012-ID-1	12	154	25/30/35/40

Product Specifications (Single-Piece Idler Wheels)

CODE	Z	Do mm	DF mm
I35009-ID-2	9	117	25/30/35/40
I35010-ID-2	10	129	25/30/35/40
I35011-ID-2	11	142	25/30/35/40
I35012-ID-2	12	154	25/30/35/40

(5) Sprockets and Idler Wheels For 880TAB-878TAB-880BS-RT880 Chain

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

Product Specifications

CODE	Z	Do mm	DF mm
J36009-ID	9	117	25/30/35/40
J36010-ID	10	129	25/30/35/40
J36011-ID	11	142	25/30/35/40
J36012-ID	12	154	25/30/35/40

(6) Sprockets and Idler Wheels For 882BEVEL-882M-LBP882M-882TAB-LBP882TAB-LBP8257 Chain

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

Product Specifications

CODE	Z	Do mm	DF mm
K37010	10	125	25/30/35/40
K37012	12	149	25/30/35/40

(7) Sprockets and Idler Wheels For 882BEVEL-882M-LBP882M-882TAB-LBP882TAB-LBP8257 Chain

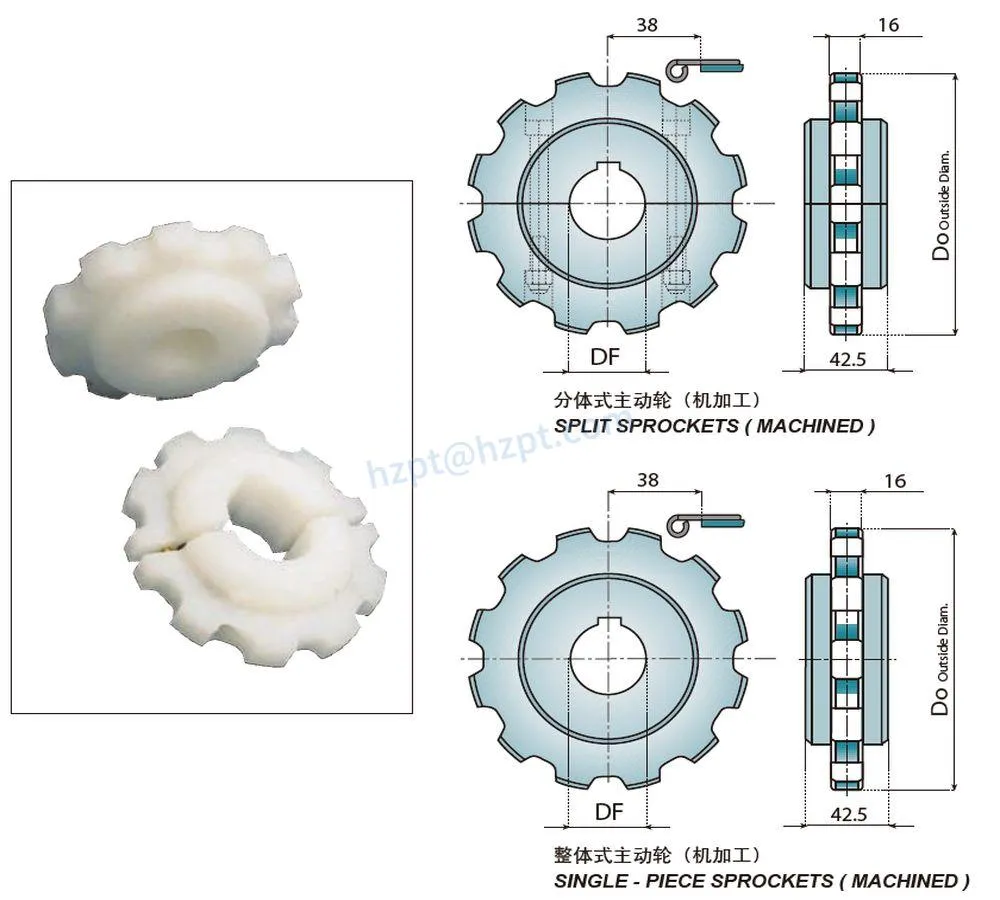

Product Specifications (Split Sprockets)

CODE	Z	Do mm	DF mm
K38009-1	9	110	25/30/35/40
K38010-1	10	125	25/30/35/40
K38011-1	11	137	25/30/35/40
K38012-1	12	149	25/30/35/40

Product Specifications (Single-Piece Sprockets)

CODE	Z	Do mm	DF mm
K38009-2	9	110	25/30/35/40
K38010-2	10	125	25/30/35/40
K38011-2	11	137	25/30/35/40
K38012-2	12	149	25/30/35/40

(8) Sprockets and Idler Wheels For 882M-LBP882M Chain

Product Specifications

CODE	Z	Do mm	DF mm
K39009-ID	9	117	25/30/35/40
K39010-ID	10	129	25/30/35/40
K39011-ID	11	142	25/30/35/40
K39012-ID	12	154	25/30/35/40

(9) Sprockets and Idler Wheels For 882TAB Chain

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

Product Specifications

CODE	Z	Do mm	DF mm
K40009-ID	9	117	25/30/35/40
K40010-ID	10	129	25/30/35/40
K40011-ID	11	142	25/30/35/40
K40012-ID	12	154	25/30/35/40

Services we can provide

1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).

Customization process
1.Provide documentation:CAD, DWG, DXF, PDF,3D model ,STEP, IGS, PRT

2.Quote:We will give you the best price within 24 hours

3.Place an order:Confirm the cooperation details and sign the contract, and provide the labeling service

4.Processing and customization:Short delivery time

Plastic Sprockets and Idler Wheels for 880/880m/880tab/878tab/880BS Series Chain

Related products:

Factory:
As a professional China sprocket manufacturer and professional supplier, we ensure the quality of every sprocket. All items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that the best quality product goes out in the market.
