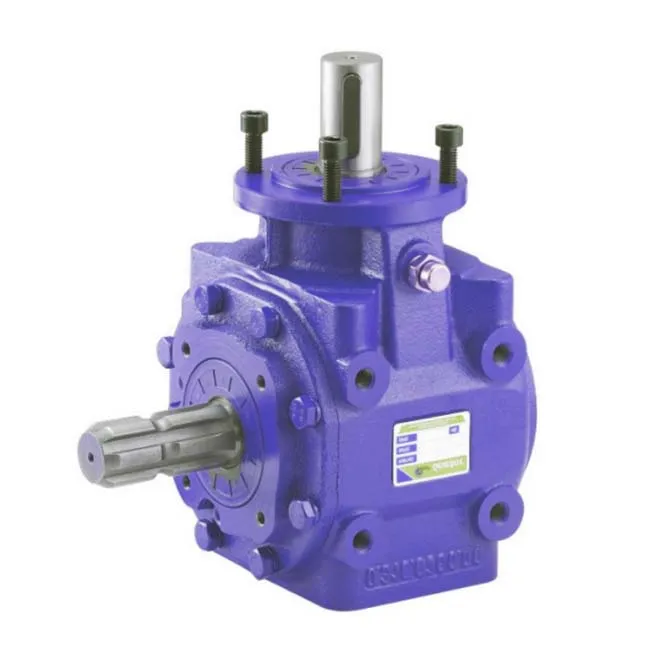

90 Degree Lawn Cutter Gearbox

Product DescriptionProduct ParametersDescriptionMower Gearboxes - Replacement of Code TL-312D ApplicationMowers Consists ofGearboxWithout oil Technical informationIf you have any questions regarding performance at different speeds, please do not hesitate to contact usWhen using for the first time, r......
Product Description

Agricultural Tl-312D 90 Degree Lawn Cutter Mower GearboxAgricultural Tl-312D 90 Degree Lawn Cutter Mower Gearbox

Product Parameters
Description
Mower Gearboxes - Replacement of Code TL-312D

Application
Mowers

Consists of
  • Gearbox
  • Without oil

Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us
  • When using for the first time, replace the oil after 50 operating hours

Contains oil
No

Max. oil capacity
1.5 l

Max. oil change interval
500 h

Oil SAE viscosity grade
80W-90

Housing material
Cast iron GG25

Weight
27 kg

Gear arrangement Increasing
21-22

Input power kW / HP Increasing
76.5 / 104 kW/HP

Input shaft Increasing
X

Output Torque DaNm Increasing
42.7 daNm

Ratio Increasing
1 : 1,6

Ratio Reducing
1,6 : 1

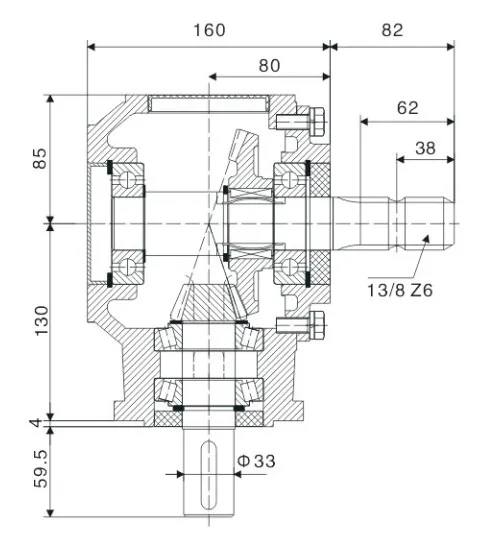

Shaft X
1 3/8" (6) (A)

Shaft Z
33 h7 (B)



Company Profile

Agricultural Tl-312D 90 Degree Lawn Cutter Mower Gearbox

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.Agricultural Tl-312D 90 Degree Lawn Cutter Mower Gearbox

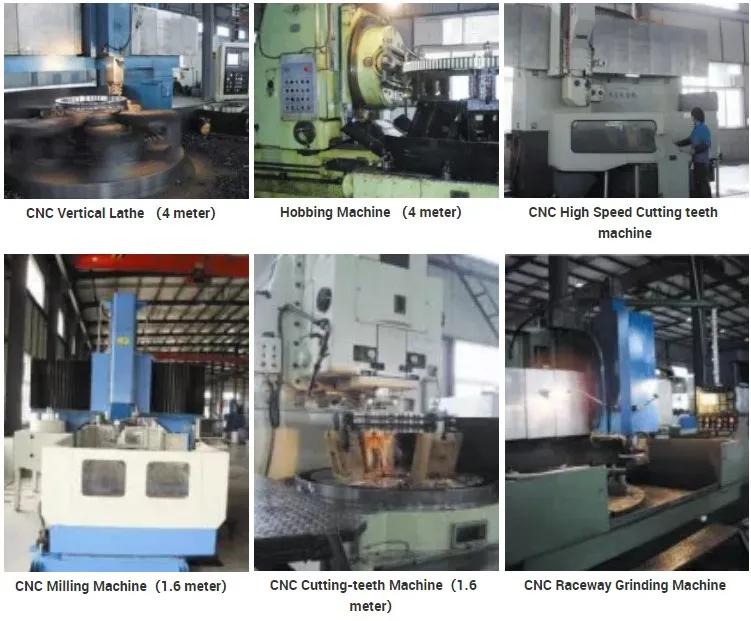

Our Equipments

Agricultural Tl-312D 90 Degree Lawn Cutter Mower Gearbox
Certification
Agricultural Tl-312D 90 Degree Lawn Cutter Mower Gearbox

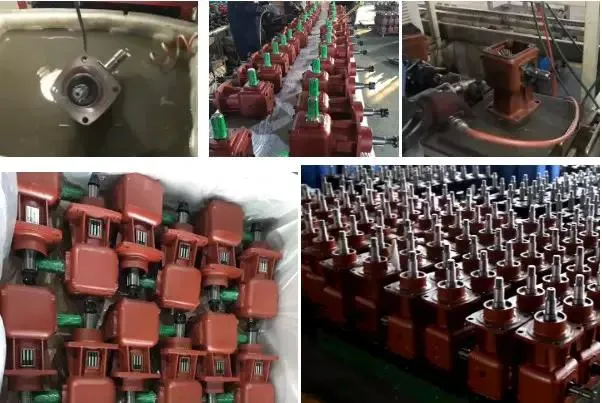

Packaging and Shipment
Agricultural Tl-312D 90 Degree Lawn Cutter Mower Gearbox
Related products

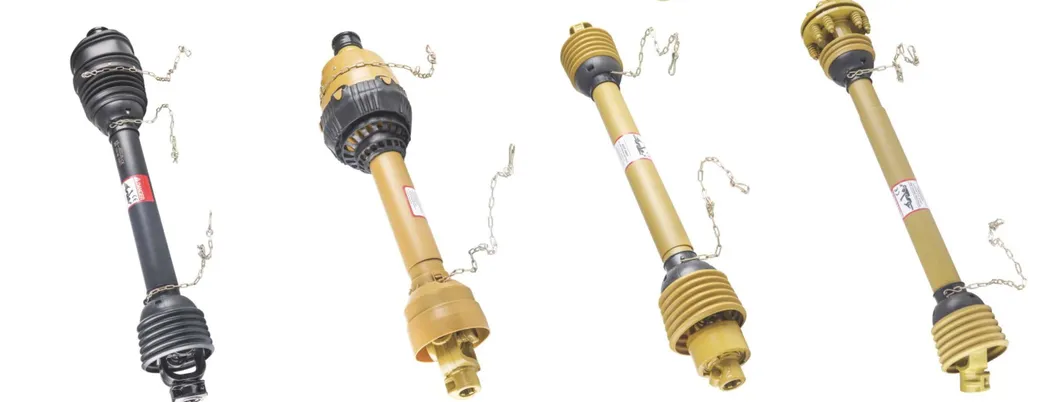

PTO Shaft
