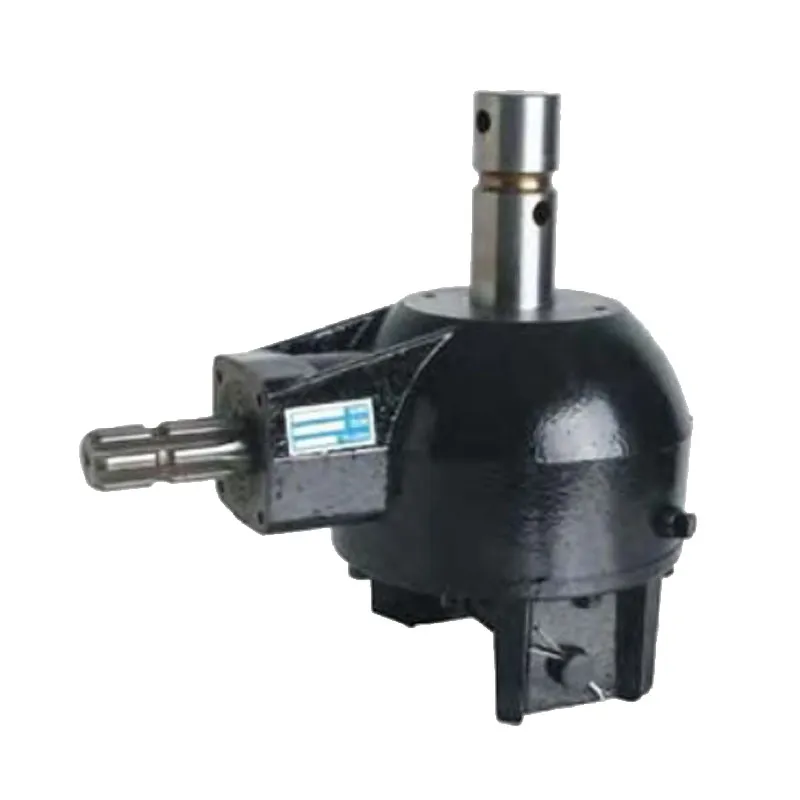

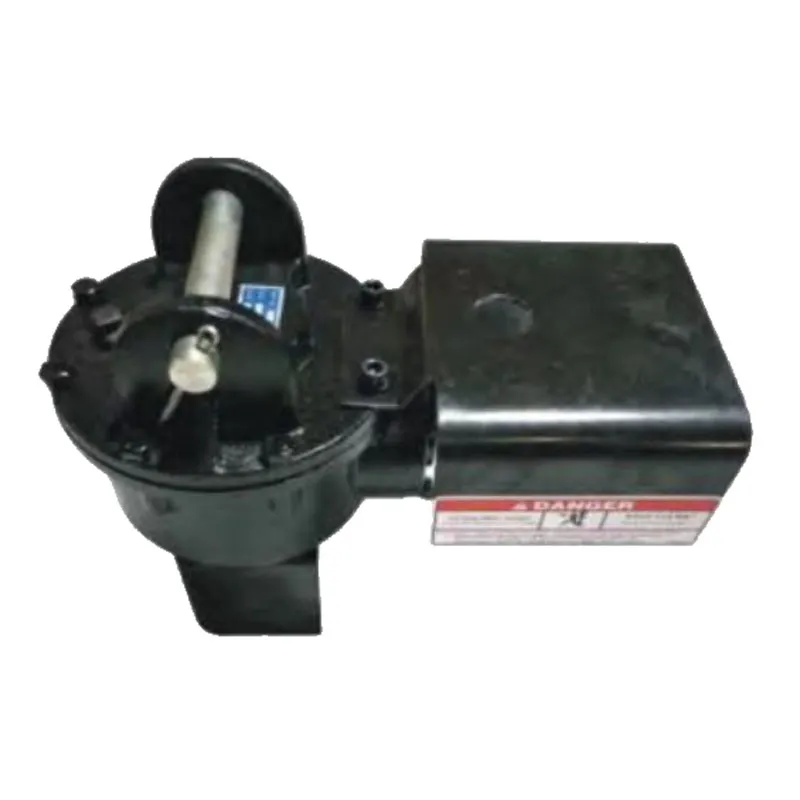

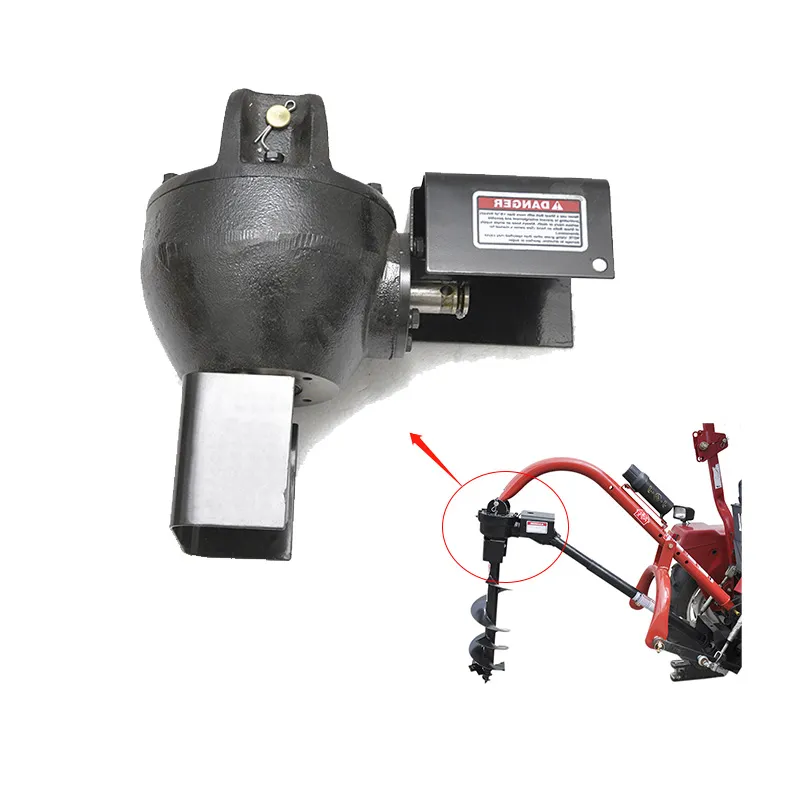

Replacement Gearbox for Post Hole Digger Heavy Duty Augers Bush Hog Phd 2401 2402 Series
Brand new, gearboxFor Post Hole Digger. Originally manufactured for PTO driven post hole digger systems. Tapered roller bearings. Spring loaded triple lip seals. Clockwise input rotation gives clockwise output rotation. Cast iron housing. Designed to free hang from a supporting structure or boom that is connected to it with a 7/8" diameter pin at the top of the gearbox housing. Four 3/8"-16 tapped holes on 3-3/8" diameter B.C. to mount input shaft shield and four 3/8"-16 tapped holes on 4-1/8" diameter B.C. to mount ouput shaft shield. Ships without oil, user must add oil prior to use per user 's manual.
Specifications
Gear Ratio 3.2:1
RPM Input Max 540
Inner Mounting Ear Width 5.5"
Pin Throat Depth 6.75"
Input Shaft 1.25" dia. x 2.32" long smooth shaft w/ 0.39" dia. x 1.15" wide thru hole and 0.25" snap ring groove
Output Shaft 2" dia. x 4.75" long smooth shaft w/ two, 1/2" dia. x 1.95" wide thru holes
Overall Dimensions 16" x 9" x 15"
Shpg. 78 lbs.

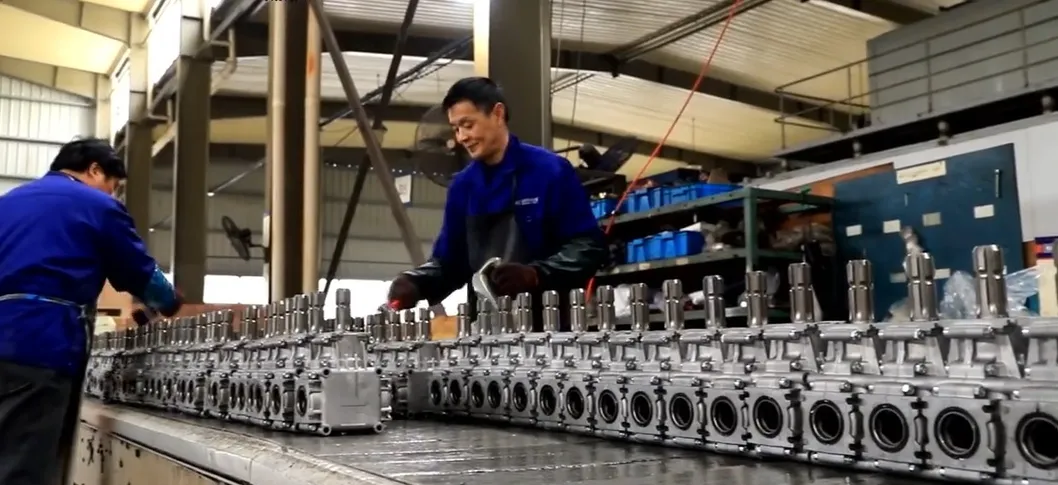

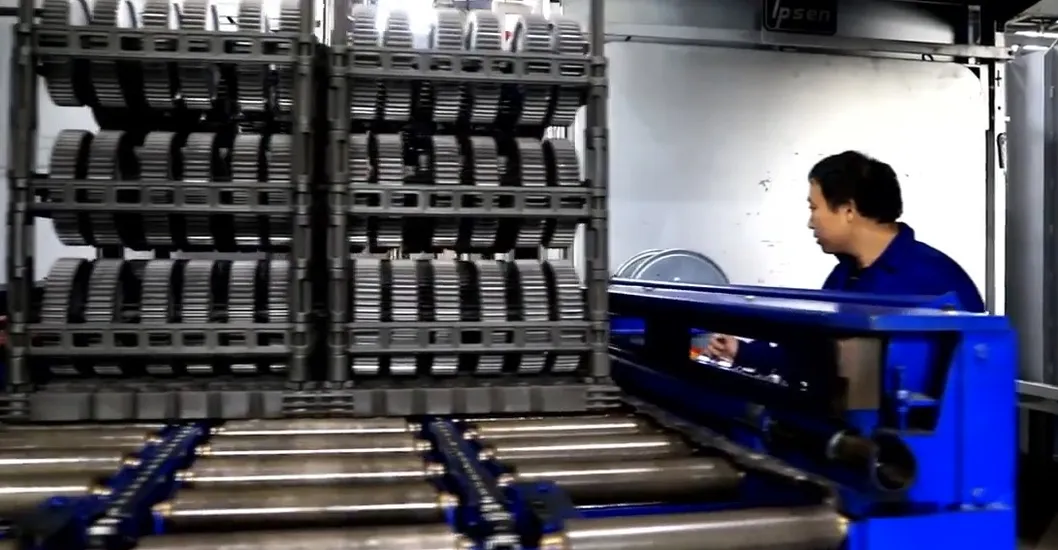

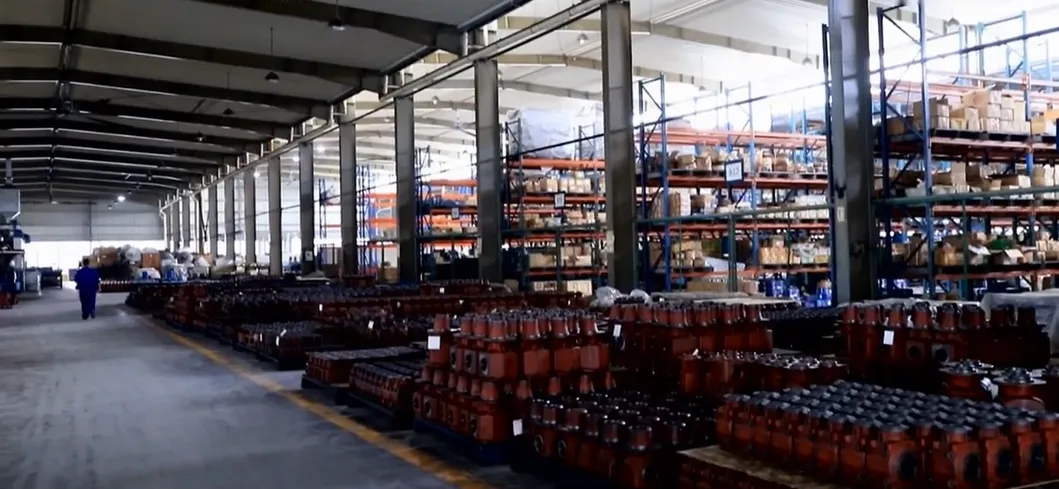

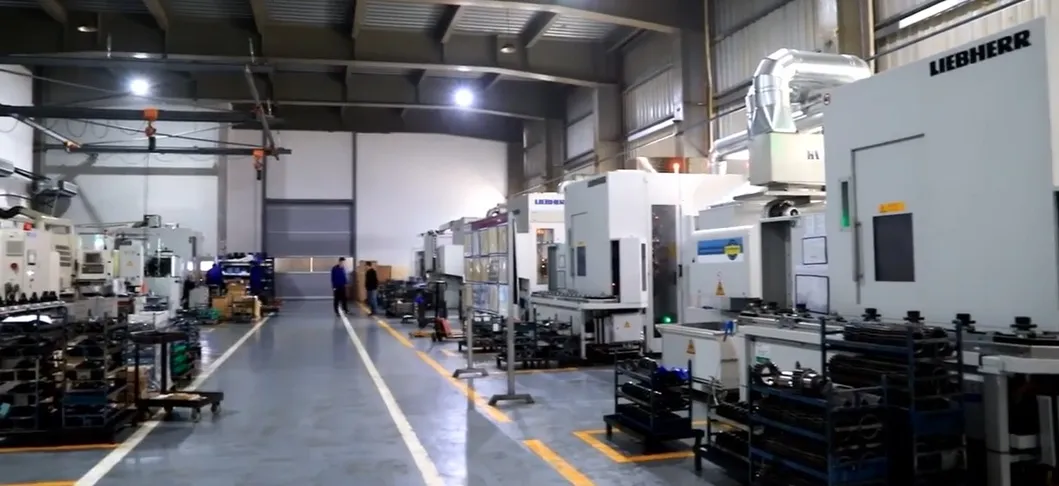

Our Factory:
1. Shell: made of high rigidity fc-25 cast iron;
2. Gear: high purity alloy steel 20crmnt is used for quenching and tempering, carburizing, quenching and grinding;
3. Spindle: high purity alloy steel 40Cr quenching and tempering processing, with high hanging load capacity.
4. Bearing: equipped with tapered roller bearing with heavy load capacity;
5. Oil seal: imported double lip oil seal, with the ability of dust and oil leakage.
Product lubrication:
The use of proper lubricating oil for t spiral bevel gear commutator can give full play to the efficiency of the steering gear and improve its service life.
1. The initial wear period is two weeks or 100-200 hours. There may be a small amount of metal wear particles between them. Please clean the interior and replace it with new lubricating oil;
2. In case of long-term use, change the lubricating oil every half a year or 1000-2000 hours.
Technical parameters of T spiral bevel gear commutator:
It can be equipped with single horizontal axis, double horizontal axis, single vertical axis and double vertical axis 1:5, 1:5, 1:1, 1:5, 1:5, 1:1

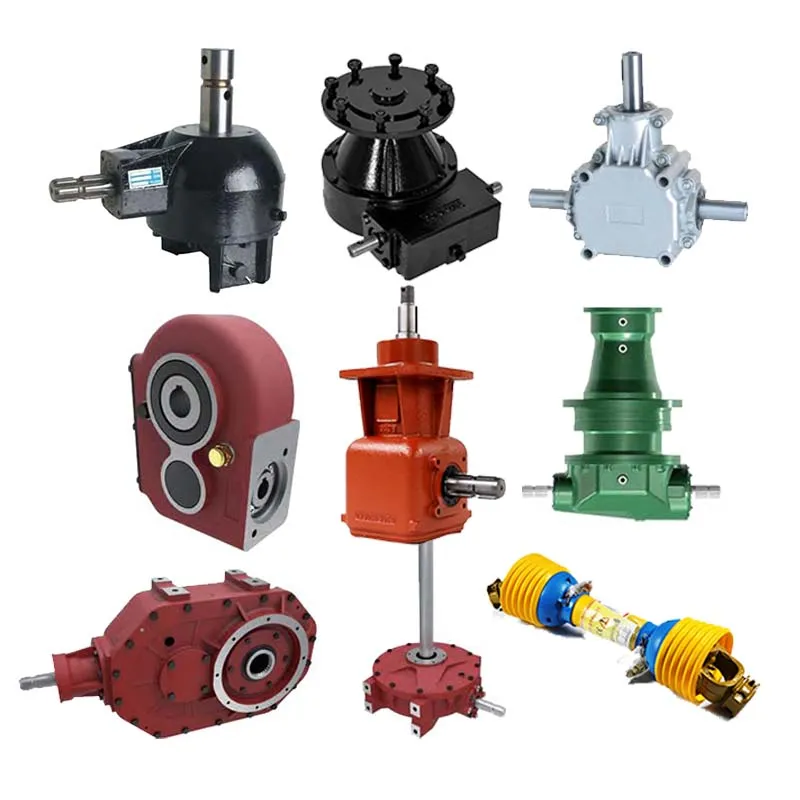

Related products:

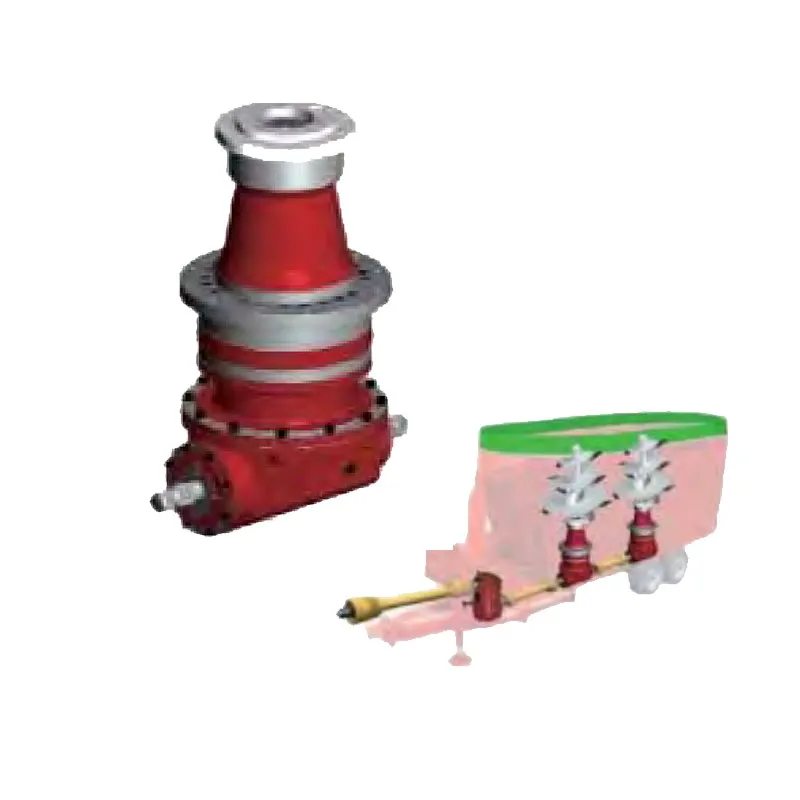

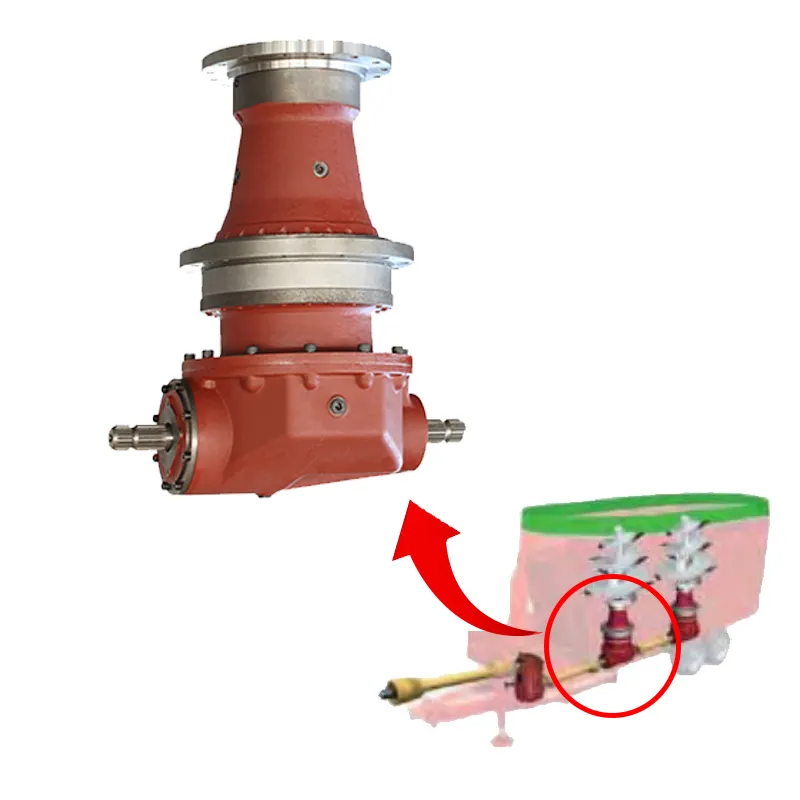

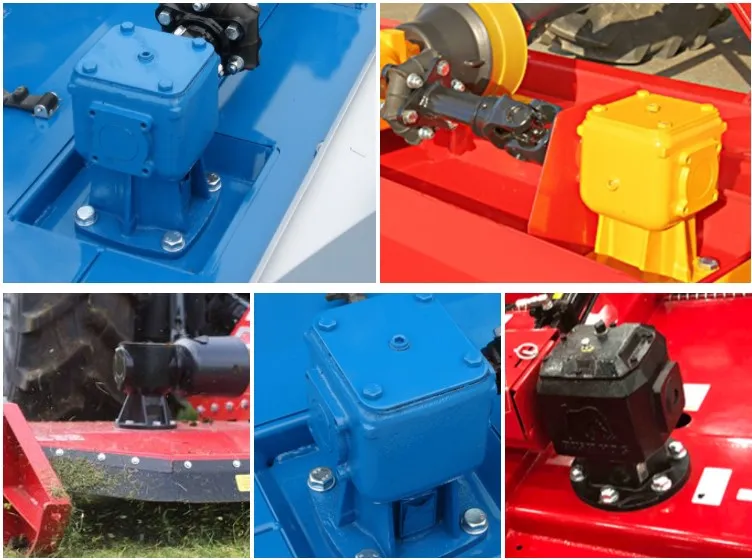

Application:
