8V series ten-groove QD (quick detachable) bushed sheaves are manufactured for 8V and 8V banded belts. They range from 12.50" to 5".00" in d"diameter. Depending on the sheave size, they are made to use a J, M, N, or P QD bushing, which we also stock. Most of our ten-groove 8V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.
|
Sheave Size
|
Bushing
|

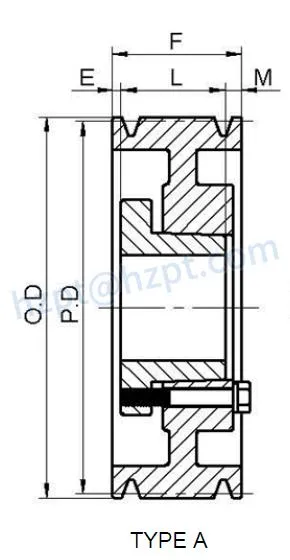

Type
|
Pitch Diameter (P.D.)
|
Outside Diameter (O.D.)
|
(E)
|
(F)
|
(L)
|
(M)
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|
| 108V1250J | J | A | 12.30 | 12.50 | 2-1/8" | 11-5/8" | 4-5/8" | 4-7/8" | 156 |
| 108V1320J | J | A | 13.00 | 13.20 | 2-1/8" | 11-5/8" | 4-5/8" | 4-7/8" | 190 |
| 108V1400J | J | A | 13.80 | 14.00 | 2-1/8" | 11-5/8" | 4-5/8" | 4-7/8" | 210 |
| 108V1500M | M | A | 14.80 | 15.00 | 2-11/32" | 11-5/8" | 6-3/4" | 2-17/32" | 266 |
| 108V1600M | M | A | 15.80 | 16.00 | 2-11/32" | 11-5/8" | 6-3/4" | 2-17/32" | 256 |
| 108V1700M | M | A | 16.80 | 17.00 | 2-11/32" | 11-5/8" | 6-3/4" | 2-17/32" | 281 |
| 108V1800M | M | A | 17.80 | 18.00 | 2-11/32" | 11-5/8" | 6-3/4" | 2-17/32" | 290 |
| 108V1900M | M | A | 18.80 | 19.00 | 2-11/32" | 11-5/8" | 6-3/4" | 2-17/32" | 301 |
| 108V2000M | M | A | 19.80 | 20.00 | 2-11/32" | 11-5/8" | 6-3/4" | 2-17/32" | 325 |
| 108V2120M | M | A | 21.00 | 21.20 | 2-11/32" | 11-5/8" | 6-3/4" | 2-17/32" | 340 |
| 108V2240N | N | A | 22.20 | 22.40 | 3/16" | 11-5/8" | 8-1/8" | 3-5/16" | 365 |
| 108V2480N | N | A | 24.60 | 24.80 | 3/16" | 11-5/8" | 8-1/8" | 3-5/16" | 390 |
| 108V3000N | N | A | 29.80 | 30.00 | 3/16" | 11-5/8" | 8-1/8" | 3-5/16" | 435 |
| 108V3550P | P | A | 35.30 | 35.50 | 1/4" | 11-5/8" | 9-3/8" | 2" | 507 |
| 108V4000P | P | A | 39.80 | 40.00 | 1/4" | 11-5/8" | 9-3/8" | 2" | 615 |
| 108V4450P | P | A | 44.30 | 44.50 | 1/4" | 11-5/8" | 9-3/8" | 2" | 710 |
| 108V5300P | P | A | 52.80 | 53.00 | 1/4" | 11-5/8" | 9-3/8" | 2" | 945 |
