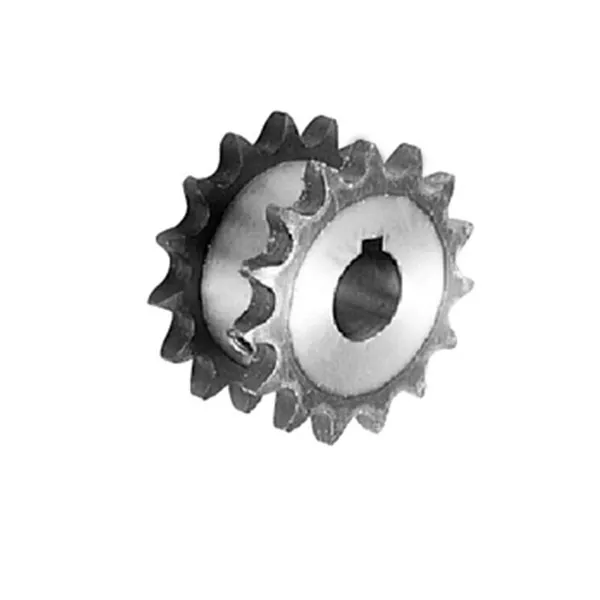

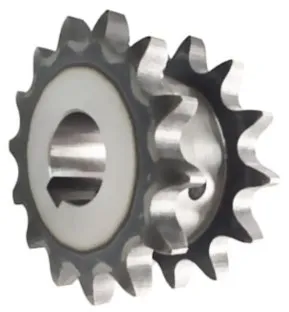

Our in-stock standard double pitch sprockets are manufactured out of SAE-1045 case hardened steel with extra-hardened teeth and coated with black oxide. These sprockets are extremely durable, high-strength, and manufactured to high precision tolerances. Stock double pitch sprockets include standard roller and carrier roller style.
Below is a chart of all of the standard C2062H double pitch roller chain sprockets. We also stock a full line of high quality C2062H roller chain.
| Sprocket Size | Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
|
2062A12
|
12 | 6.500" | 23/32" | -- | -- | 2.98 LBS |
|
2062A13
|
13 | 6.990" | 23/32" | -- | -- | 3.60 LBS |
|
2062A14
|
14 | 7.470" | 23/32" | -- | -- | 4.02 LBS |
|
2062A15
|
15 | 7.960" | 23/32" | -- | -- | 4.76 LBS |
|
2062A16
|
16 | 8.440" | 23/32" | -- | -- | 5.70 LBS |
|
2062A17
|
17 | 8.920" | 15/16" | -- | -- | 6.16 LBS |
|
2062A18
|
18 | 9.410" | 15/16" | -- | -- | 6.96 LBS |
|
2062A19
|
19 | 9.890" | 15/16" | -- | -- | 8.00 LBS |
|
2062A20
|
20 | 10.370" | 15/16" | -- | -- | 8.46 LBS |
|
2062A21
|
21 | 10.850" | 15/16" | -- | -- | 8.93 LBS |
|
2062A22
|
22 | 11.330" | 15/16" | -- | -- | 10.74 LBS |
|
2062A23
|
23 | 11.810" | 15/16" | -- | -- | 11.64 LBS |
|
2062A24
|
24 | 12.290" | 15/16" | -- | -- | 12.64 LBS |
|
2062A25
|
25 | 12.770" | 15/16" | -- | -- | 13.78 LBS |
|
2062A26
|
26 | 13.250" | 15/16" | -- | -- | 15.00 LBS |
|
2062A28
|
28 | 14.210" | 1-1/4" | -- | -- | 17.32 LBS |
|
2062A30
|
30 | 15.170" | 1-1/4" | -- | -- | 19.50 LBS |
|
2062B8
|
8 | 4.520" | 3/4" | 1-27/32" | 1-1/4" | 2.60 LBS |
|
2062B9
|
9 | 5.020" | 3/4" | 2-9/32" | 1-1/4" | 3.48 LBS |
|
2062B10
|
10 | 5.520" | 3/4" | 2-9/16" | 1-1/4" | 4.54 LBS |
|
2062B11
|
11 | 6.010" | 3/4" | 2-3/4" | 1-1/4" | 5.20 LBS |
|
2062B12
|
12 | 6.500" | 3/4" | 2-3/4" | 1-1/4" | 5.70 LBS |
|
2062B13
|
13 | 6.990" | 3/4" | 2-3/4" | 1-1/4" | 6.28 LBS |
|
2062B14
|
14 | 7.470" | 3/4" | 2-3/4" | 1-1/4" | 6.82 LBS |
|
2062B15
|
15 | 7.960" | 3/4" | 2-3/4" | 1-1/4" | 7.48 LBS |
|
2062B16
|
16 | 8.440" | 1" | 2-3/4" | 1-1/4" | 8.18 LBS |
|
2062B17
|
17 | 8.920" | 1" | 2-3/4" | 1-1/4" | 8.82 LBS |
|
2062B18
|
18 | 9.410" | 1" | 2-3/4" | 1-1/4" | 9.36 LBS |
|
2062B19
|
19 | 9.890" | 1" | 2-3/4" | 1-1/4" | 11.10 LBS |
|
2062B20
|
20 | 10.370" | 15/16" | 2-3/4" | 1-1/4" | 11.66 LBS |
|
2062B21
|
21 | 10.850" | 15/16" | 2-3/4" | 1-1/4" | 13.24 LBS |
|
2062B22
|
22 | 11.330" | 15/16" | 2-3/4" | 1-1/4" | 13.78 LBS |
|
2062B23
|
23 | 11.810" | 15/16" | 2-3/4" | 1-1/4" | 14.90 LBS |
|
2062B24
|
24 | 12.290" | 15/16" | 2-3/4" | 1-1/4" | 15.66 LBS |
|
2062B25
|
25 | 12.770" | 15/16" | 2-3/4" | 1-1/4" | 16.80 LBS |
|
2062B26
|
26 | 13.250" | 15/16" | 2-3/4" | 1-3/4" | 20.20 LBS |
|
2062B28
|
28 | 14.210" | 1-1/4" | 2-3/4" | 1-3/4" | 21.86 LBS |
|
2062B30
|
30 | 15.170" | 1-1/4" | 2-3/4" | 1-3/4" | 26 LBS |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
