Worm gearboxes are widely used due to their durability, large transmission ratio, small size, strong self-locking ability, simple structure, and easy manufacturing, but their relatively low transmission efficiency. To add a breather cover to the worm gear reducer, the temperature of the reducer will change with the working time. The higher the temperature, the air in the reducer case will expand, thereby leaking the lubricating oil from the split surface, so a vent cover is provided on the reducer case cover. An oil drain hole is provided under the reducer case seat to facilitate the later replacement of lubricating oil.

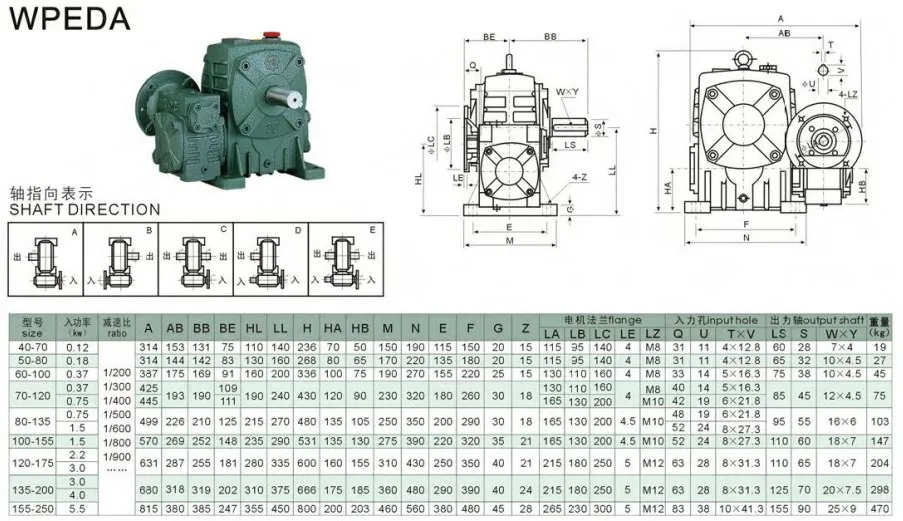

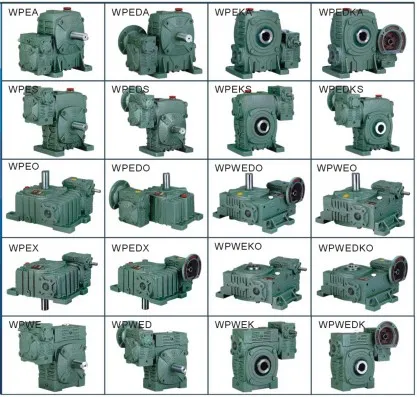

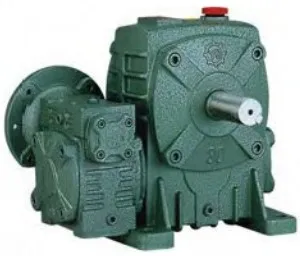

| Type | WPEDA worm gearbox |
| Model | 40-70, 50-80, 60-100, 70-120,80-147,100-155, 120-175, 135-200,155-250 |
| Ratio | 200-900 |
| Mounting Position | Foot mounted, flange mounted |
| Output Form | Solid shaft, hollow shaft |
| Material of Housing | Casting Iron |
| Material of Shaft | Chromium steel |
| Oil seal | KSK |
| Bearing | C&U |

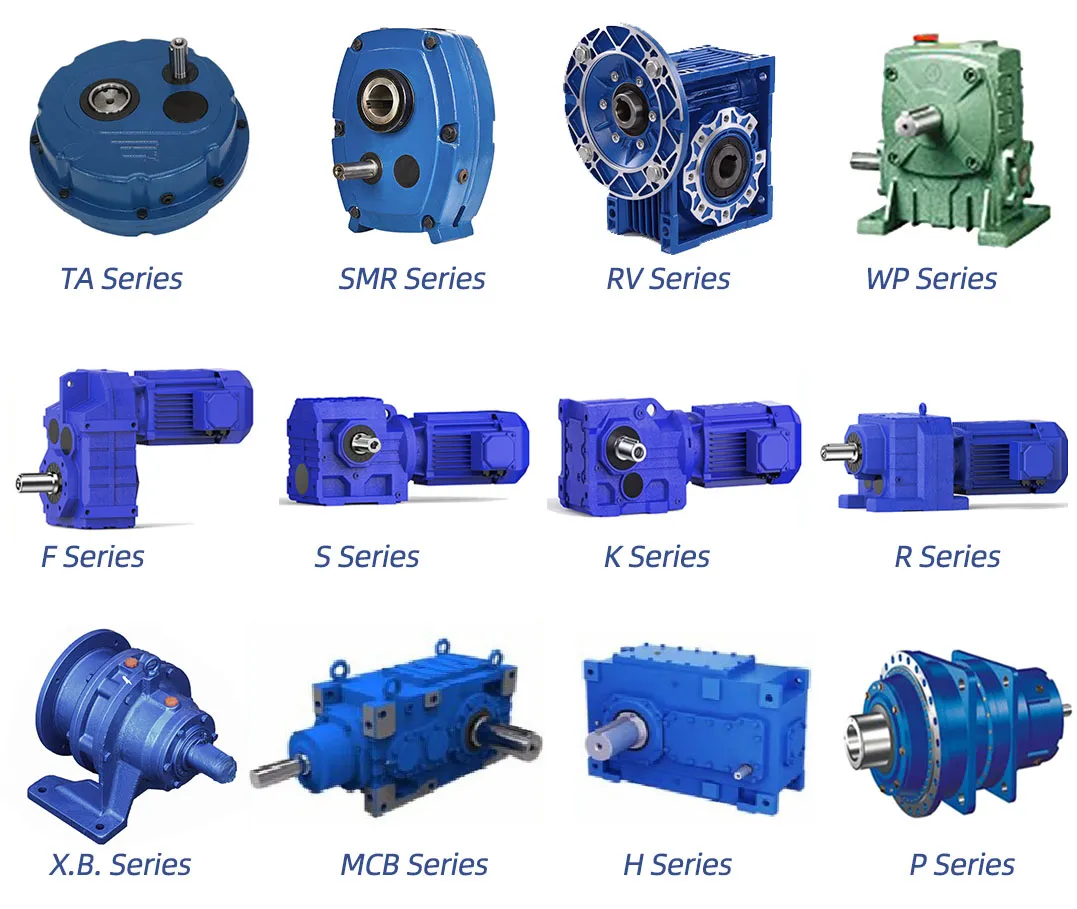

We are a professional company engaged in the R&D, design, and manufacturing of gearboxes. The company has introduced a number of sophisticated production and testing equipment. We have successfully developed 800Nm-11200Nm planetary gearboxes for construction machinery, special planetary gearboxes for mixers, special planetary gearboxes for buildings, special reducers for mines, wind power reducers, hydraulic rotary, winch series, gearboxes for rolling mills, and other series of gearboxes with hundreds of thousands of specifications. The products have been widely used in building materials, metallurgy, engineering machinery, hoisting, shipping, chemical, pharmaceutical, electric power, and other supporting units and engineering projects.
Since its establishment, the company has been accelerating the pace of scientific and technological innovation and independent brand construction to build its core competitiveness with new thinking and new manufacturing awareness.

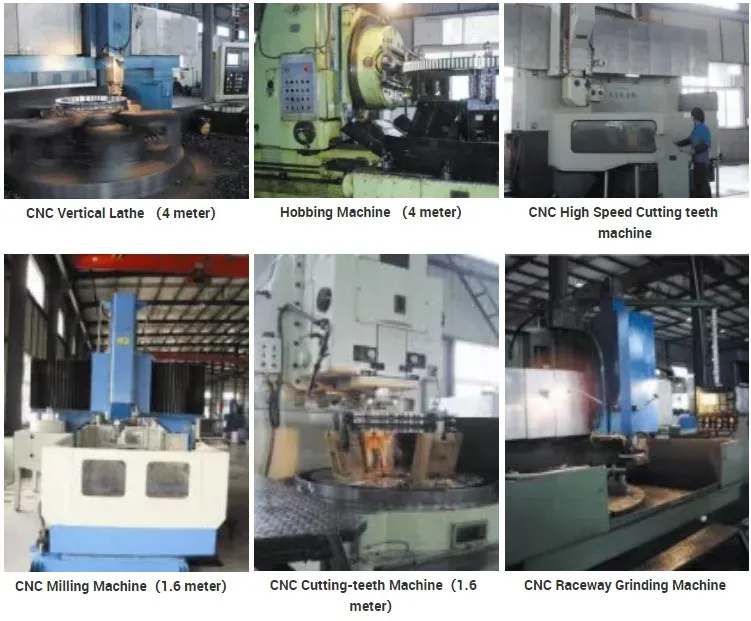

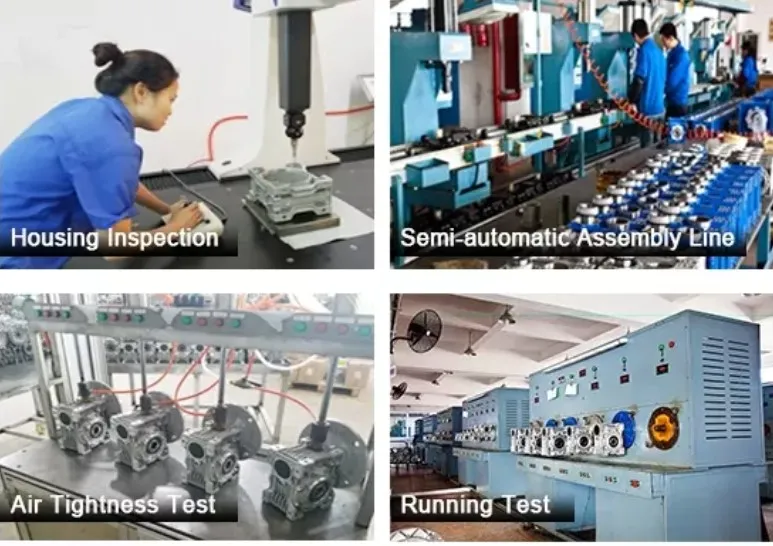

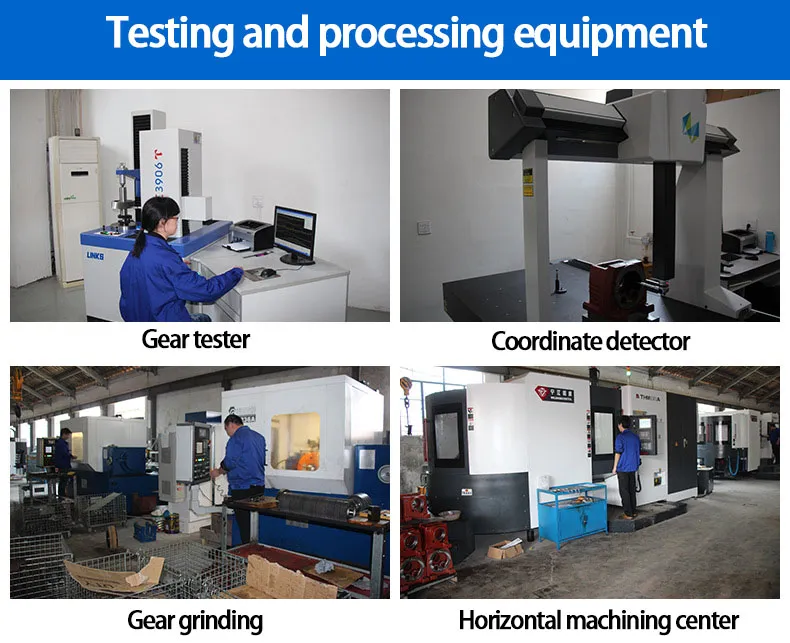

Our Equipments
