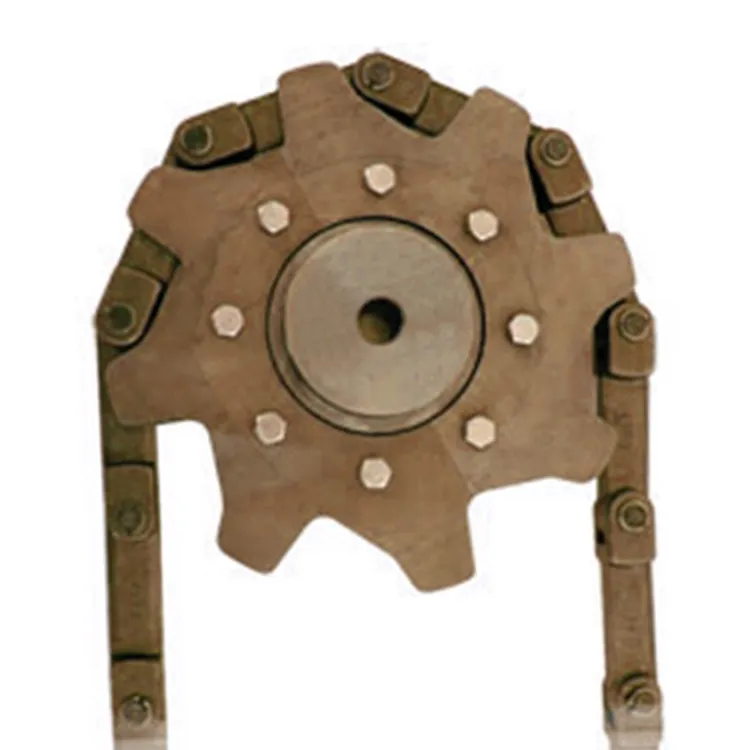

X458 chain sprockets are a type of sprocket used in conveyor systems. They are designed to work with the X458 conveyor chain, which is a heavy-duty chain commonly used in industrial applications. The X458 chain sprockets are made of high-quality materials, such as steel or cast iron, and are designed to withstand heavy loads and high speeds.
X458 chain sprockets are available in a variety of sizes and configurations to meet the specific needs of different conveyor systems. They are typically mounted on shafts or hubs and are used to transmit power from the conveyor motor to the conveyor chain. The sprockets have teeth that mesh with the links of the chain, causing the chain to move along the conveyor.
Overall, X458 chain sprockets are an essential component of conveyor systems, providing reliable and efficient power transmission for heavy-duty industrial applications.
| Sprocket Number | Tooth Count | Pitch | Style | Stock Bore | Weight (LBS) |
|---|---|---|---|---|---|
| X-458A5 | 5 | 4.031" | A-Plate | 1.50" | 33.00 LBS |
| X-458A6 | 6 | 4.031" | A-Plate | 1.50" | 47.00 LBS |
| X-458A7 | 7 | 4.031" | A-Plate | 1.50" | 64.00 LBS |
| X-458A8 | 8 | 4.031" | A-Plate | 1.50" | 83.00 LBS |
| X-458A9 | 9 | 4.031" | A-Plate | 1.50" | 105.00 LBS |
| X-458A10 | 10 | 4.031" | A-Plate | 1.50" | 130.00 LBS |
| X-458A11 | 11 | 4.031" | A-Plate | 1.50" | 157.00 LBS |
| X-458A12 | 12 | 4.031" | A-Plate | 1.50" | 186.00 LBS |
| Sprocket Number | Tooth Count | Pitch Diameter | Style | Hub Diameter | Length Thru Bore | Maximum Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| X-458C5 | 5 | 13.045" | C-Hub | 5.500" | 4.250" | 3.440" | 54.00 LBS |
| X-458C6 | 6 | 15.575" | C-Hub | 5.500" | 4.250" | 3.440" | 68.00 LBS |
| X-458C7 | 7 | 18.115" | C-Hub | 5.500" | 4.250" | 3.440" | 85.00 LBS |
| X-458C8 | 8 | 20.662" | C-Hub | 6.500" | 5.000" | 3.940" | 120.00 LBS |
| X-458C9 | 9 | 23.214" | C-Hub | 6.500" | 5.000" | 3.940" | 141.00 LBS |
| X-458C10 | 10 | 25.768" | C-Hub | 6.500" | 5.000" | 3.940" | 166.00 LBS |
| X-458C11 | 11 | 28.325" | C-Hub | 6.500" | 5.000" | 3.940" | 193.00 LBS |
| X-458C12 | 12 | 30.883" | C-Hub | 6.500" | 5.000" | 3.940" | 222.00 LBS |
Services we can provide
1. Produce strictly following standard dimension
2. Material: 1045 Steel / Alloy Steel / Stainless Steel 304 & 316
3. Standard: ANSI, DIN, JINS, ISO, KANA, Standard America, or customer's drawing
4. Pilot bore, finished bore, taper bore, and special bore.
5. Bright surface / high precision / Blacking /Electrophoretic-Coated
6. Advanced heat treatment and surface treatment craft
7. Best quality and competitive price.
8. Welcome OEM / ODM
9. Processing Equipment: Hobbing machine, Slotting machine, CNC lathes, and other equipment.
10. Sprocket Models: Contains special sprocket according to customer's drawings, standard sprocket (American standard and metric).
 |
 |
 |
 |
 |
 |
