Flange Coupling Quick Install Lightweight

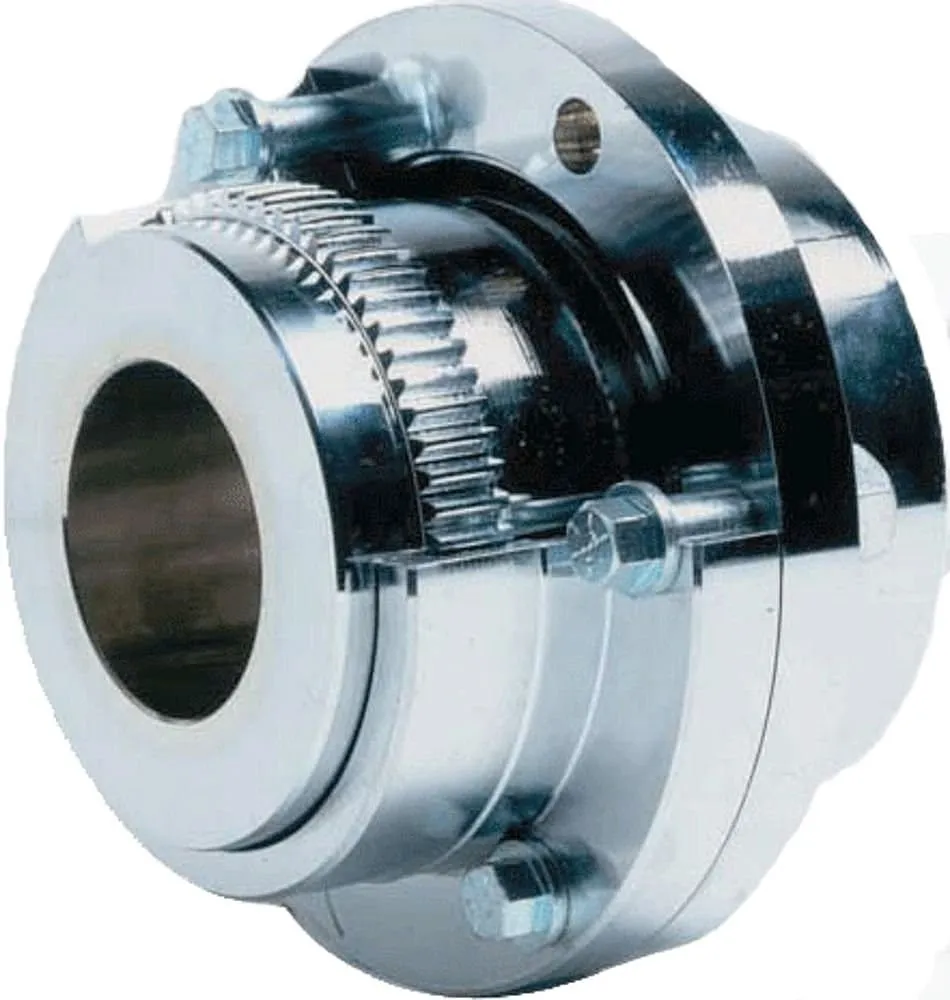

The flange flexible coupling, also known as a flange coupling or simply a flexible coupling, is designed to join two rotating shafts, often with flanged ends. It consists of two flanges, one on each shaft, connected by a flexible element.

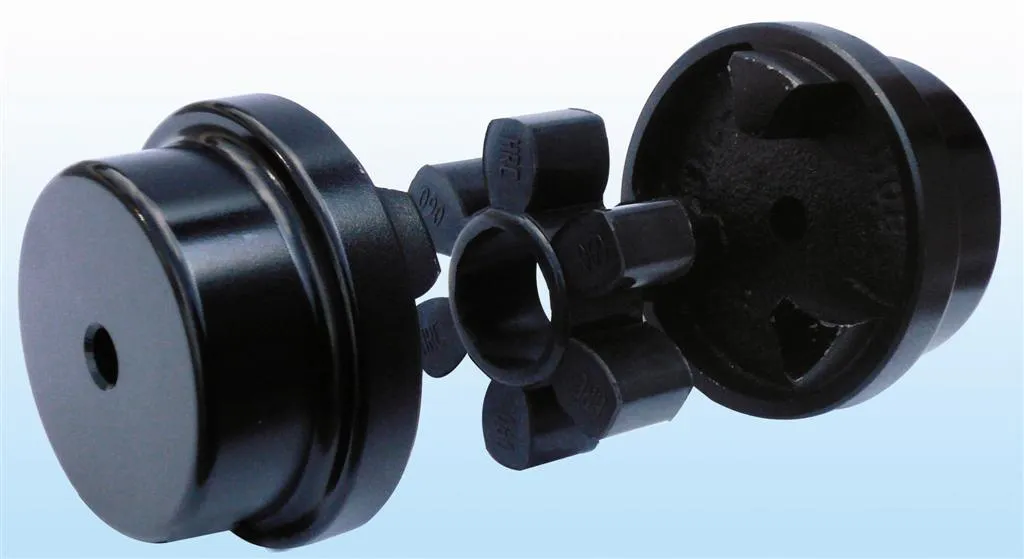

The flexible element of the coupling is typically made of materials such as rubber, elastomers, or metal alloys. This flexible element allows for slight angular, parallel, or axial misalignment between the two shafts, reducing the transmission of shock and vibration between them. It also helps to compensate for any misalignment that may occur due to manufacturing tolerances, thermal expansion, or dynamic loads.

The flange flexible coupling is commonly used in various industrial applications, including machinery, pumps, compressors, and power transmission systems. It provides several benefits, such as:

1. Misalignment compensation: The flexible element of the coupling allows for angular, parallel, and axial misalignment between the shafts, ensuring smoother operation and reduced stress on the connected equipment.

2. Vibration and shock absorption: The flexibility of the coupling helps to dampen and absorb vibrations and shocks, reducing the impact on the connected machinery and improving overall system performance.

3. Torque transmission: The flange coupling efficiently transfers torque from one shaft to another, allowing for the synchronized rotation of the connected equipment.

Maintenance of flange flexible couplings typically involves periodic inspection for wear, proper lubrication (if applicable), and replacement of the flexible element if it shows signs of damage or degradation. Following the manufacturer's guidelines for maintenance is crucial to ensure optimal performance and longevity of the coupling.

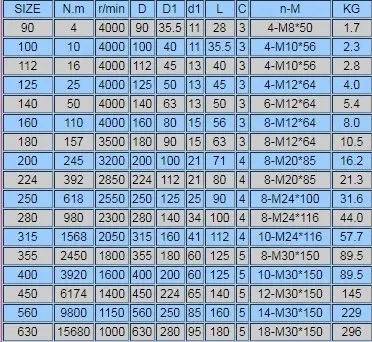

Flange flexible couplings come in various sizes, designs, and materials to suit different application requirements and torque capacities. They play a vital role in connecting and transmitting torque between rotating shafts while accommodating misalignment, ensuring smooth and efficient operation in a wide range of industrial systems.
